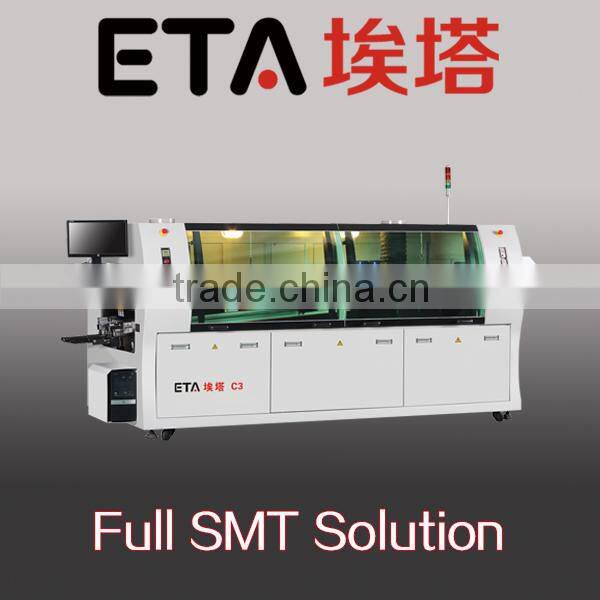

Small Wave Soldering Machine C1 AGENT WANTED
Products introduction:
C series lead-free wave soldering machine,after many years market testing, is ETA’s mature product, C series lead-free wave soldering machine has long-term positive feedback from customers. Its unparalleled heating performance and temperature control system meet the requirements of various welding processes, especially energy saving design has been a leading-edge product advantage, maximum reducing the using cost for customers.
Features:
1.Nozzle: Japan Kuroda Seiko nozzles, adjustable atomizing area, ensuring the long time spray uniformity and reliability.
2.Pneumatic components: Japan SMC pneumatic components and other import brands,ensuring gas supply accurate and steady.
3.Spray control: computer control or manually adjust switch, precise control the spray time, spray speed, economy and environmental protection, digital FLUX flow, spray flow, angle, density, width and other parameters can be recorded.
4.Cleaning device: automatic cleaning, modular design, easy maintenance.
5.Temperature Protection:ETA using third-party over-temperature protection, multiple protection layers to ensure safe operation.
6.Products comply with CE, CCC, UL and other standards and specifications.
7.User-friendly design: fault detection (such as heaters abnormal alarm, etc.), regular maintenance reminders,economy functions, emergency manual transmission function and tool-free maintenance, reduce equipment failure rates.
8.Heating module: horizontal reflow design makes each heating zones not influenced by adjacent zones to ensure accurate temperature curve, while ensuring high production capacity and heat exchange capacity, and achieve high adaptive capacity (to meet the soldering of automotive electronics, communications, electronics, computers and mobile phones, and other consumer electronics.).
9.Moving parts: Computer adjustment, stepper motor control, accuracy and stability, to ensure accurate spray.
10.Temperature control: PLC + PID independent temperature control, real-time monitoring preheat temperature.
11.Core components: using imported components to ensure long-term stability of equipment operation, reduced maintenance costs.
12.Customers can choose different configurations of flux processing system according to their own production characteristics, to ensure the furnace hall clean.
13.Closed-loop transmission speed control systems, transportation control accuracy ± 2mm / min, ensuring the transmission speed more stable.
14.Dross Collection: Automatic dross return channel,the most energy-efficient channel design, minimizing the amount of oxidation.
TOP Advantage:
1.Simple: combined with advanced international concepts, based on the Oriental-designed operating system, easy to understand, easy to learn, easy to maintain.
2.Expertise: learn imported reflow oven’s advanced design concepts, and the machine core components are using imported top brands.
3.Hedging: Import hardware configuration,low failure rate in production,more than a decade service life.
4.Safety: Based on the general rules of international design, close to imported reflow rating, the highest security level.
5.Stable: mature software, hardware and top production processes ensures stability of each equipment.
Parameter
|
ETA Lead Free Wave soldering machine Specifications | |||||||
Specifications |
C4 |
C3 |
C2 |
C1 |
|||
Dimension:L*W*H(mm) |
4200 X 1250 X 1500 |
3600 X 1250 X 1500 |
2100 X 900 X 1500 |
2000 X 1250 X 1500 |
|||
Weight(kg) |
Approx.2100kg |
Approx.1800kg |
Approx.1500kg |
Approx.900kg |
|||
Power Supply |
3P5W,380/220V 50Hz |
3P5W,380/220V 50Hz |
3P5W,380/220V 50Hz |
3P5W,380/220V 50Hz |
|||
Startup Power (kw) |
28kw |
24kw |
18kw |
15kw |
|||
Operation Power Consumption |
10kw |
8kw |
6kw |
4kw |
|||
Control System |
PLC |
PLC |
PLC |
PLC |
|||
Spray System |
|||||||
Transmission Methed |
Air cylinder/step motor(option) |
||||||
Spray Pressure |
0.25Mpa--0.4Mpa |
||||||
Flux flow |
10--100ml/min |
||||||
Exhaust Ducting Diameter |
Φ200mm |
||||||
Exhaust Capacity |
25m3/min |
||||||
Preheating System |
|||||||
Preheating Mode |
IR tube/Hot air is option |
||||||
Control Mode |
PID + SSR |
||||||
Preheating Zone Number |
4 |
3 |
2 |
1 |
|||
Preheating Length |
1800mm |
1600mm |
700mm |
350mm |
|||
Preheating Temp. |
(Room Temperature)-250 degree |
||||||
Warm-up Time(min) |
Approx.15min (setting 150 degree) |
||||||
Conveyor System |
|||||||
PCB Width (L X W)(mm) |
Min:80x60mm; Max:300x300mm |
Min:80x60mm; Max:300x300mm |
Min:80x60mm; Max:200x300mm |
Min:80x60mm; Max:200x300mm |
|||
Conveyor Speed(mm/min) |
0-2000 |
||||||
Conveyor Height (mm) |
750+/-20 |
||||||
Finger |
Double hook claw (Standard) |
||||||
Conveyor width control |
Manually |
||||||
Conveyor Angle |
4~7degree |
||||||
Soldering System |
|||||||
Solder Pot style |
Mechanical Motor drive |
||||||
Solder Pot Material |
Full Titanium (Standard FT) |
||||||
solder pot temperature |
300 degree |
||||||
solder pot capacity |
Lead-free 400kg |
Lead-free 300kg |
Lead-free 200kg |
Lead-free 100kg |
|||
Other |
|||||||
finger cleaning system |
brush |
||||||
REFLOW OVEN
Reflow oven with 6 heating zones A600
Compact Reflow oven with 8 heating zones A800
Ecnormical reflow oven with 8 heating zones E8
ETA LED pick and place machine M3
FULL AUTO SCREEN PRINTER MACHINE
LED auto stencil printer ETA1200
Auto screen printing machine with working area 400*340mm
SEMI-AUTO STENCIL PRINTER MACHINE
Semi-auto stencil printer machine working area 1200*300mm
Semi-auto stencil printing machine size 600*330mm
Semi-auto screen printer size 400*330mm
BGA REWORK STATION
Hot sale BGA rework station 6200
SAMSUNG CHIP SHOOTER
Samsung flexible mounter SM-482
Advanced High Speed Flexible Mounter SM-481
Samsung Flexible High Speed Chip Shooter SM-471
High speed universal chip shooter DECAN Series (S2, F2, L2)
High Speed Modular Mounter EXCEN PRO
Highest speed placement machine EXCEN FLEX
SLM100 Series LED mounter---Amazing LED production System
JUKI CHIP MOUNTER
JUKI high speed Speed Placer KE-3010
JUKI high speed flexible chip mounter KE-3020
JUKI LED chip mounter JX-300LED
FX-3 Speed Placer
RX-6 Flex Placer
RX-7 Ultra High-speed Placer
JX-100LED Compact Placer
JX-300LED Compact Placer
JM-10 Multitask Platform
JM-20 Multitask Platform
SMT LINE SOLUTION
1.Pre-consultation: provides professional SMT solutions for the full line.
2.Factory Warranty: One-year warranty factory service.
3.Installation: On-site installation and commissioning, to ensure smooth production.
4. Technical Training: provides professional training from Level 1 to Level 3.
5.Technical support:provides 7 * 24 technical support.
6.Software Upgrade: offers lifetime free software upgrades for all products.
