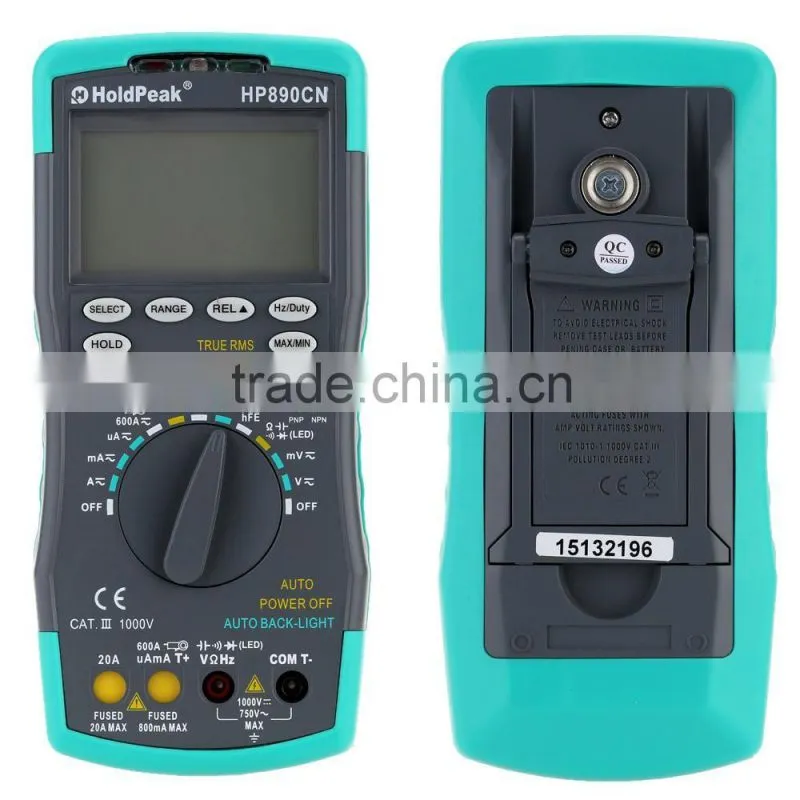

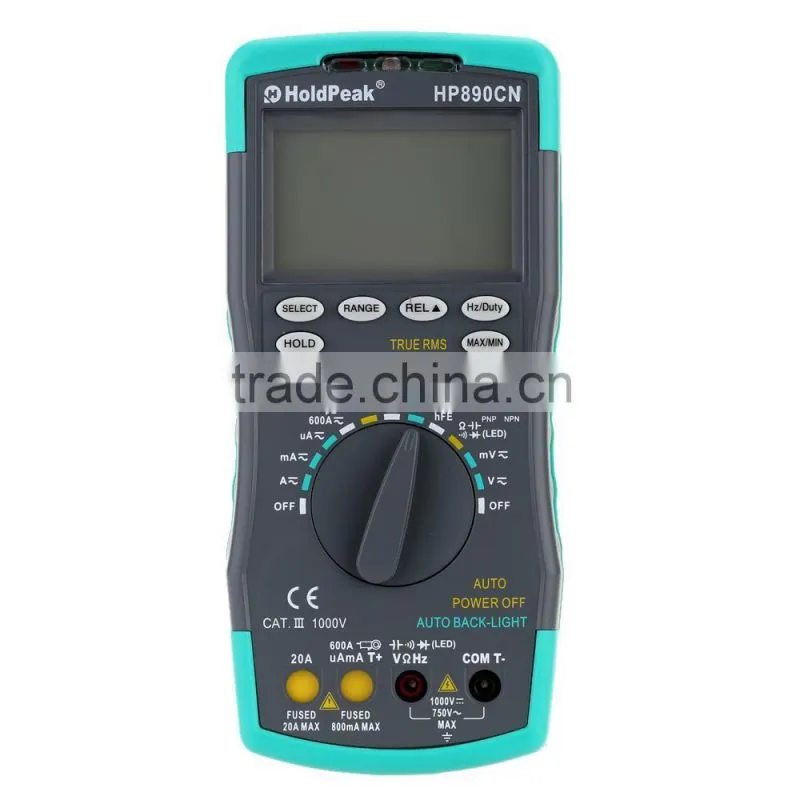

Help CenterHoldPeak HP-890CN HP890CN LCD Digital Multimeter DMM With NCV Detector DC AC Voltage Current Meter Resistance Diode Capaticance
Related Products
-
36W UV Lamp LED Ultraviolet Lamp UV Nail Dryer Dryers Nail Lamp Diamond Shaped Curing for UV Gel Nails Polish Nail Art ToolsUS$ 19.80 - 19.80MOQ: 40 Pieces -
Polycrystalline Solar Power Panel Module DIY 110x60 6V 150MA 1W For Mobile Power Bank Battery Cell Phone Toys Chargers PortableUS$ 0.89 - 0.89MOQ: 1000 Pieces
-
Polycrystalline Solar Power Panel Module DIY 80x55 6V 100MA 0.6W For Mobile Power Bank Battery Cell Phone Toys Chargers PortableUS$ 0.68 - 0.68MOQ: 1500 Pieces
-
EXCEL XL830L LCD Digital Multimeter Current Voltage Resistance Transistor HFE Temperature Multimetro Multitester Medidor DijitalUS$ 5.73 - 5.73MOQ: 100 Pieces
-
Powerful 5mW 532nm 650nm 405nm 455nm Green Blue Purple Red Light Lights Beam Laser Pointer Pen Pens Pointers LasersUS$ 1.96 - 1.96MOQ: 250 Pieces
Features:

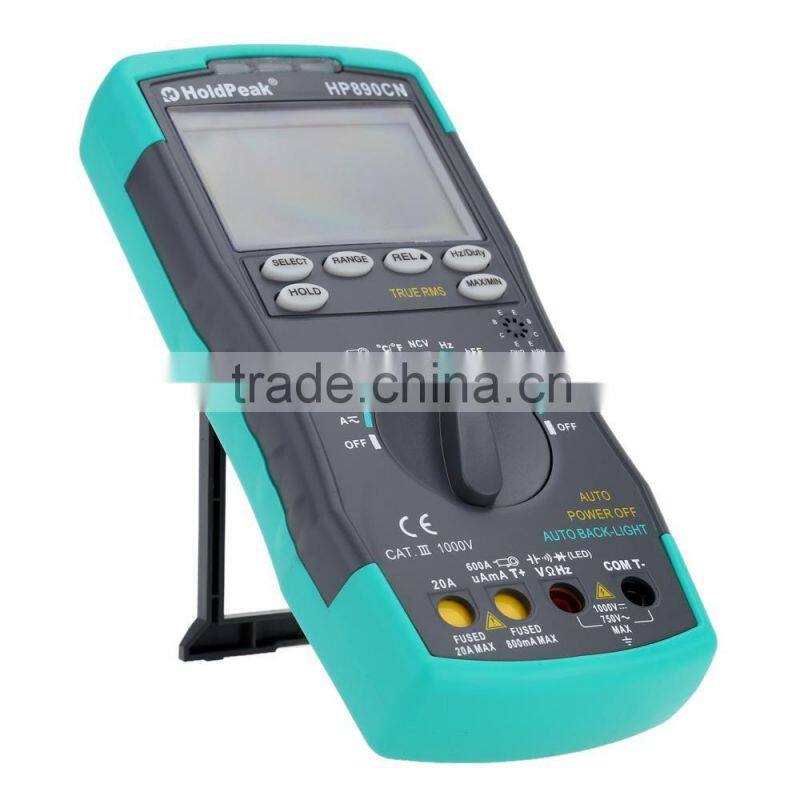

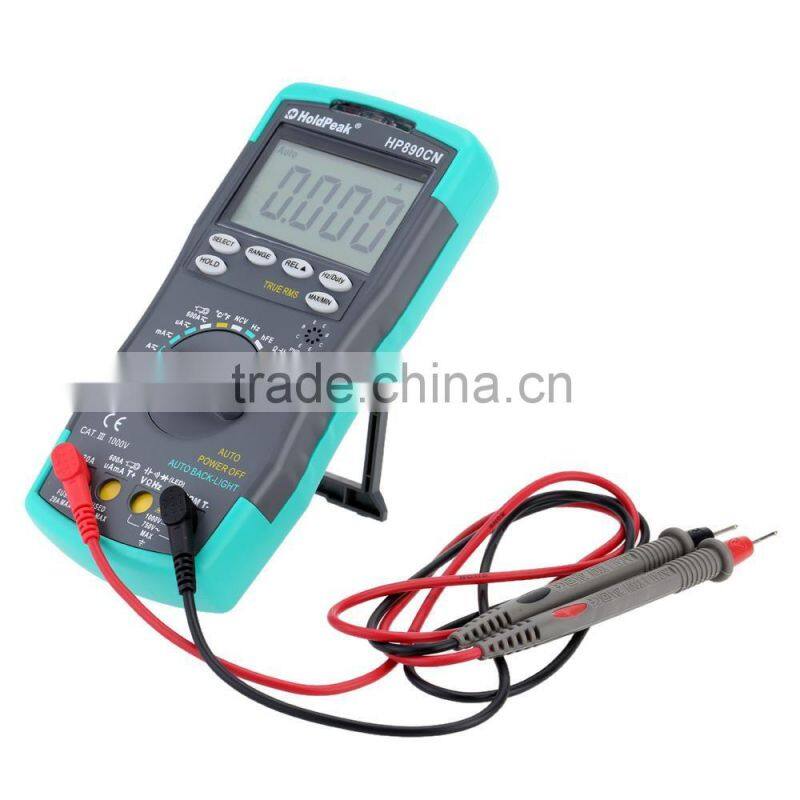

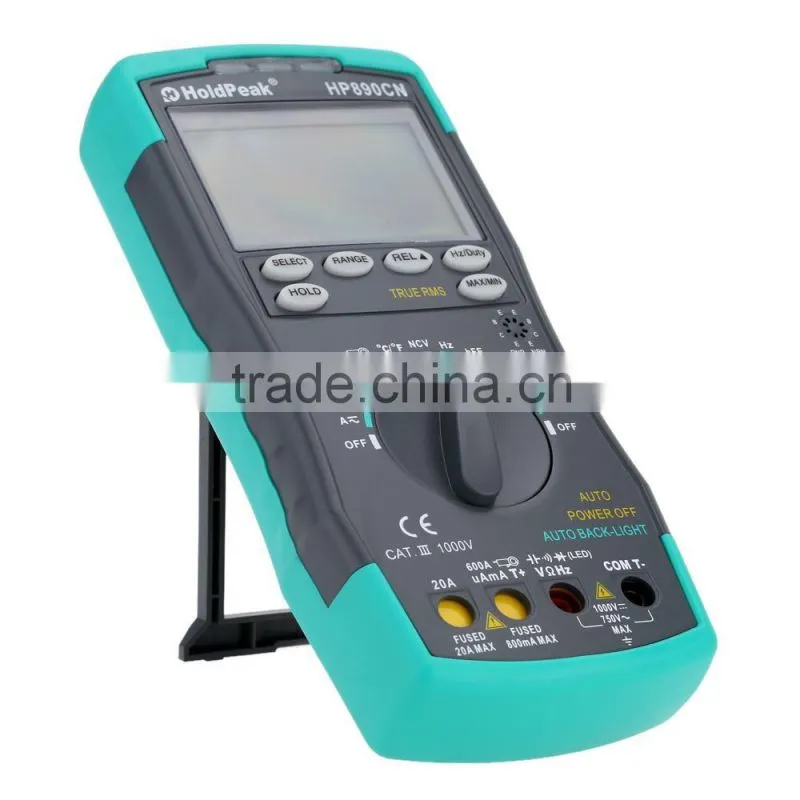

Large LCD display of 25mm character height for clear reading, smart backlight, very convenient for use.
Max. display value: 6000.
Measure AC/DC voltage/current, diode, resistance, capacitance, frequency, duty cycle, temperature and hFE test.
Non-contacted voltage(NCV) detector function.
Relative value testing, data hold, MAX/MIN value hold and auto power off function.
With unique mechanical protection function, preventing user from inserting the wrong jack.
Function Switch indicator for user so that he can switch to the correct position in the darkness.

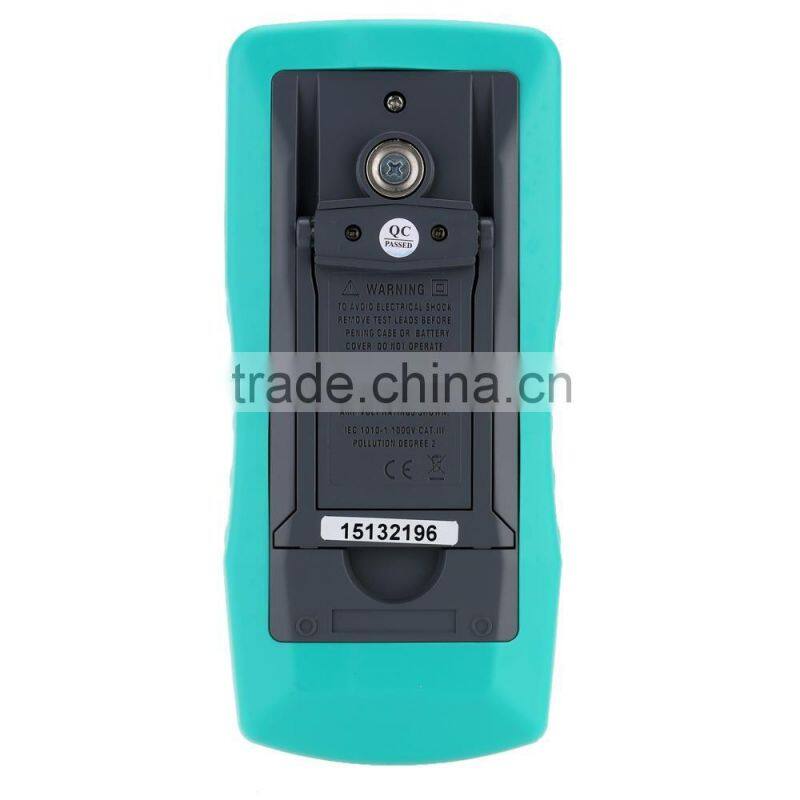

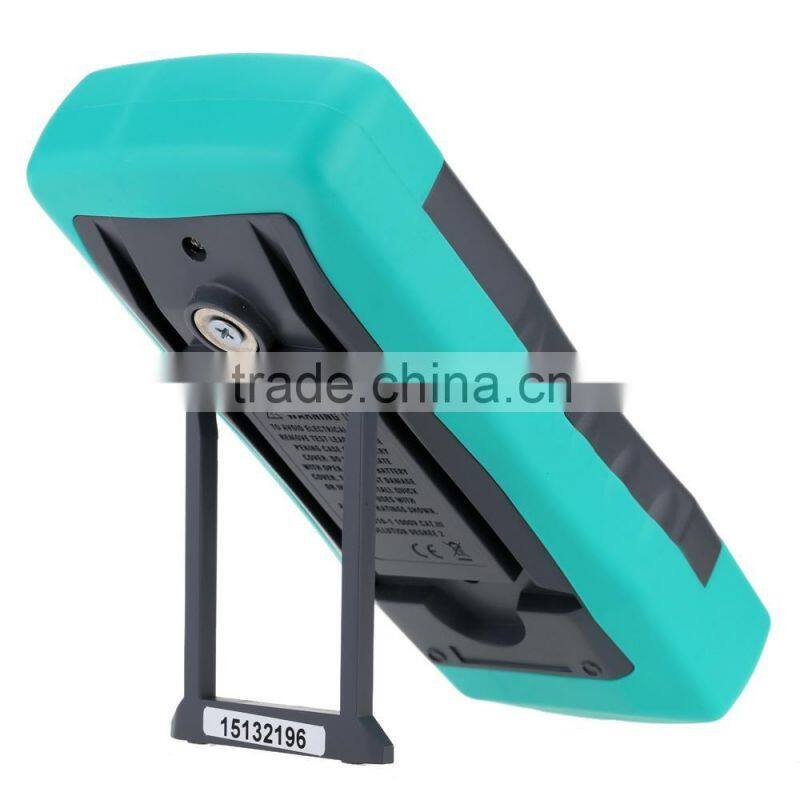

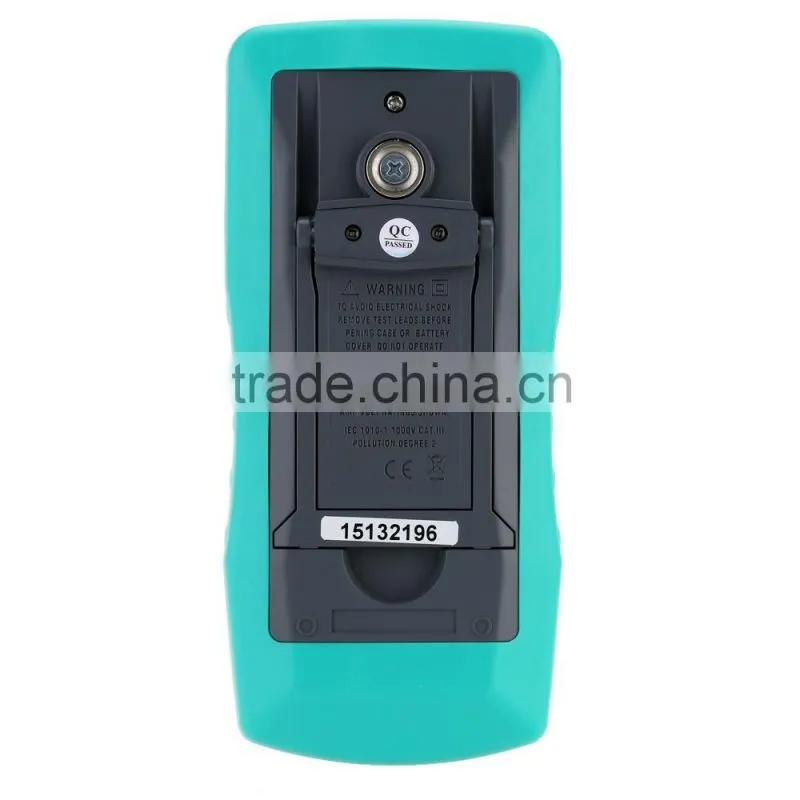

The holder at the back can be rotated in 180 degrees, can be hung as well.
Can change the temperature unit between °C and °F.
Specifications:
Color: Gray + Blue-green
Material: Plastic
Maximum Display: 6000
Range Control: Auto Range
Screen Size: 60 * 35mm
DC Voltage: 60mV/600mV/6V/60V/600V/1000V
AC Voltage(True RMS): 60mV/600mV/6V/60V/600V/750V
DC Current: 600A/6000A/60mA/600mA/6A/20A/600A
AC Current(True RMS): 600A/6000A/60mA/600mA/6A/20A/600A
Resistance: 600/6K/60K/600K/6M/60M
Capacitance: 9.999nF/99.99nF/999.9nF/9.999F/99.99F/999.9F/9.999mF/99.99mF
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz
Duty Cycle: 0.1% to 99.9%
Temperature: -20~1000°C/ -4~1832°F
Diode Test: Yes
Continuity Buzzer: Yes
Transistor hFE Test: 0-1000
NCV Detection: 90V~1000V AC rms
Power Supply: 2 * 1.5V AA Batteries (NOT Included)
Operating Environment: 0-40°C(32-104°F)
Storage Environment: -20-60°C(-4-140°F)
Item Size: Approx. 19 * 8.5 * 3.5cm / 7.67 * 3.35 * 1.37in (L * W * H)
Item Weight: 300g / 10.58oz
Package Size: 21.7 * 13 * 5.5cm / 8.54 * 5.12 * 2.16in (L * W * H)
Package Weight: 543g / 19.15oz

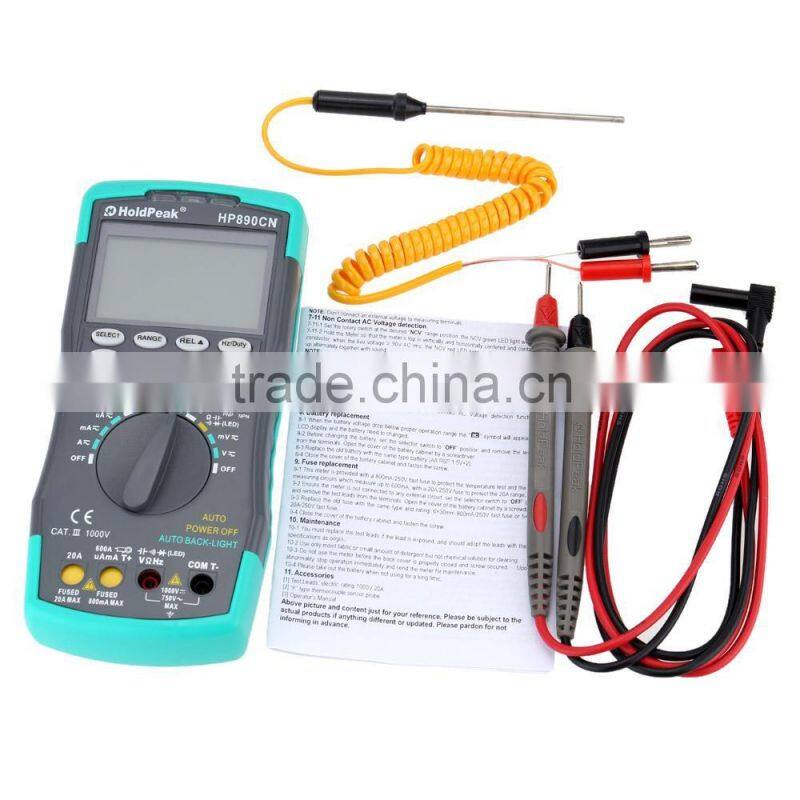

Package List:
1 * Multimeter

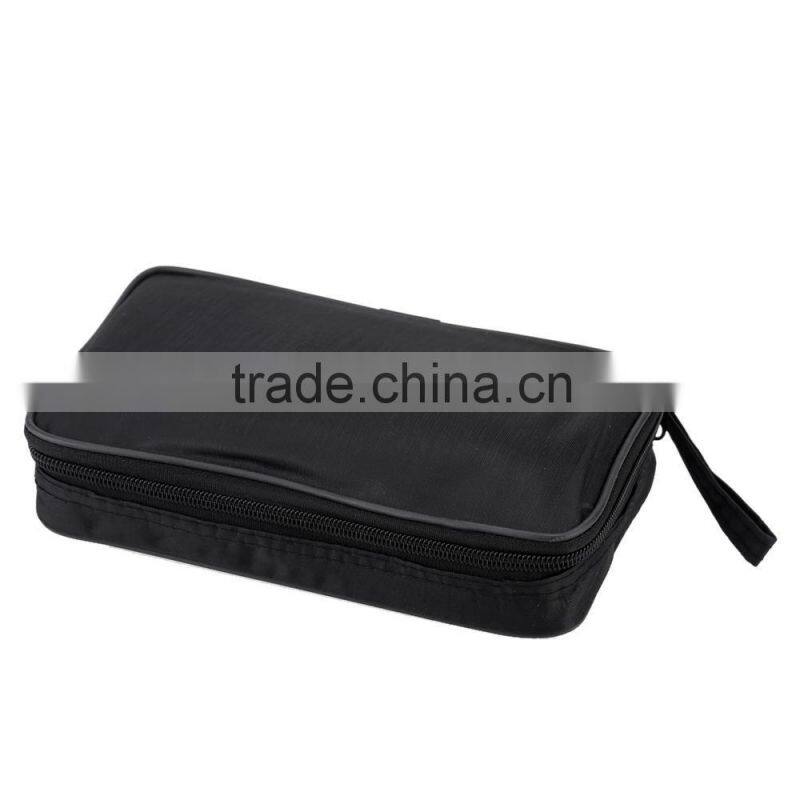

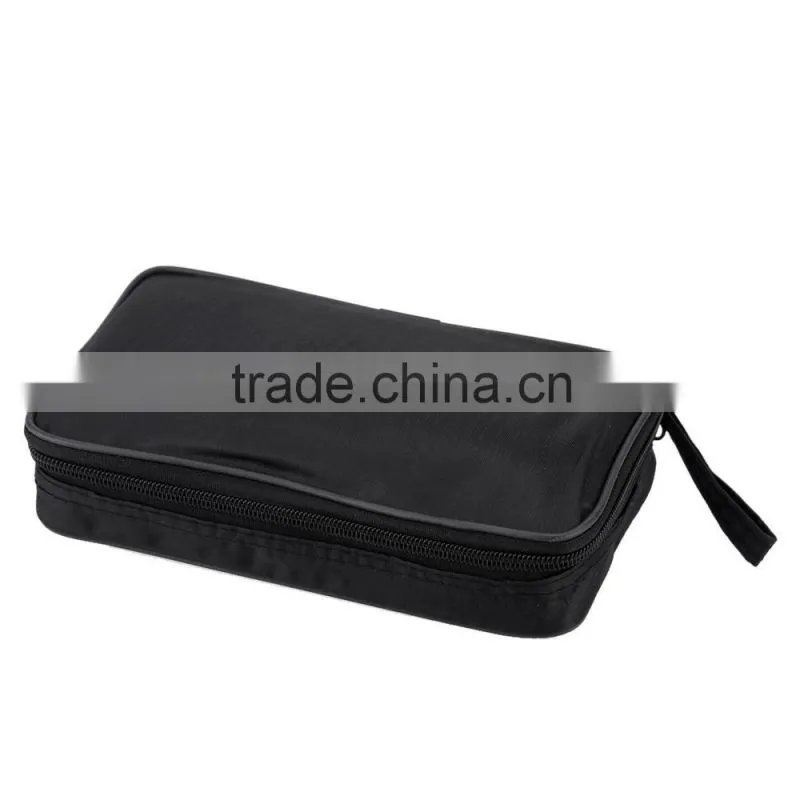

1 * Storage Bag
1 * Test Lead
1 * "K" Type Thermocouple Sensor Probe
1 * Use Manual (English)
