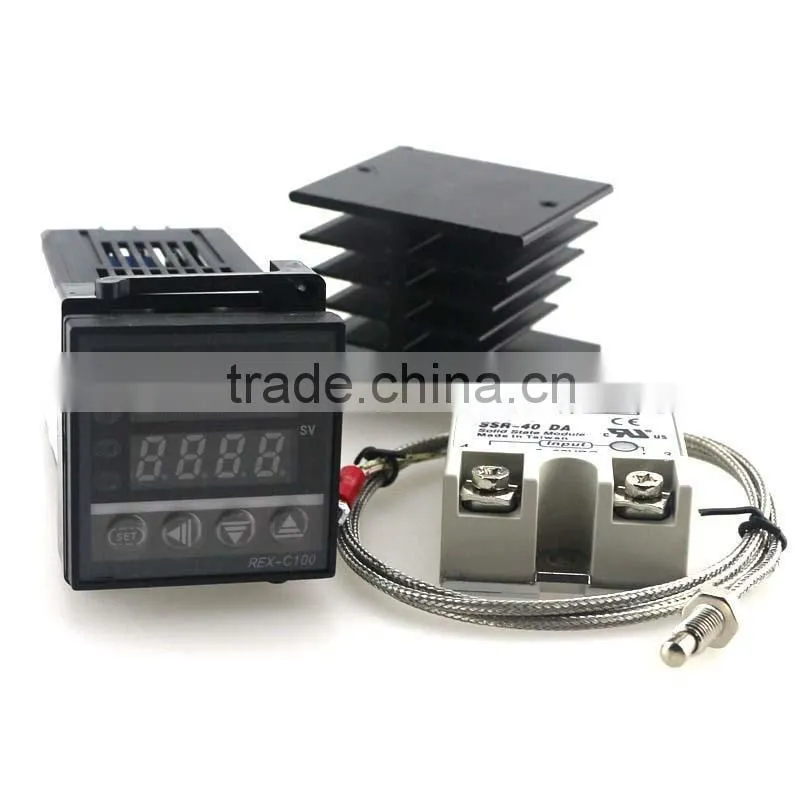

Help CenterDual Digital PID Temperature Controller Kit REX-C100 With SSR-40DA + Heat Sink + 2m Quality K Probe
Related Products
-
New Universal Wireless Remote Control Controller Switch 1 Single Channel DC12V 10A 433MHz Telecomando Transmitter With ReceiverUS$ 4.48 - 4.48MOQ: 100 Pieces -
Original BeneTech GM900 -50~900C -58~1652F Pyrometer 0.1~1EM Celsius IR Infrared ThermometerUS$ 22.45 - 22.45MOQ: 50 Pieces
-
C905W C905 4 Slots Slot LCD Display Smart Intelligent Battery Charger for AA AAA NiCd NiMh BatteriesUS$ 5.94 - 5.94MOQ: 120 Pieces
-
Digital PID Thermostat Temperature Controller Regulator REX-C100 With Thermocouple K Probe,Relay OutputUS$ 8.86 - 8.86MOQ: 100 Pieces
-
MASTECH T3033U T3033 10A Test Lead Probe for DMM Digital Multimeter & Clamp Meters Tester Digital Electrical Multimetre MultitesUS$ 1.36 - 1.36MOQ: 400 Pieces
Features:
This is a bid for a dual display universal digital programmable temperature controller that supports many type of thermocouple sensor.
it powered by 100V~240V AC
Model: REX-C100+K thermocouple +SSR 40A +2m K probe
PID contrpl
Specifications:
Display: Dual display for Celsius (C)
Range: -0-400C (Only when with the factory K type thermocouple)
Thermocouple: K,J,S,E,R,Wre3 ~ Wre25
Thermo Resistor: PT100, Cu50
Main Output: SSR:
PID cooling/heating control
1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC
7 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval / breakage alarm
Accuracy: 0.5%
Input:
Dimension: DIN: 1/16 (48mm x 48mm x 110mm)
Weight: about 200g
Individually programmable PID control parameters.
P, I, d, controlling period, digital filter coefficient, and more
Relay control ready to connect
K type thermocouple: 0-400C, 2m cable .
Compact design:
DIN 1/8 great form-factor to be included/build-in to your product.
Input: TC(K, J, S, E) / RTD (Pt100, CU50) universal input, or 0-20mA signal.
Control output: SSR
Alarm output: 1 line output, 7 kinds of alarm mode: high/low/high deviation/low deviation/interval/out of interval/breakage alarm.

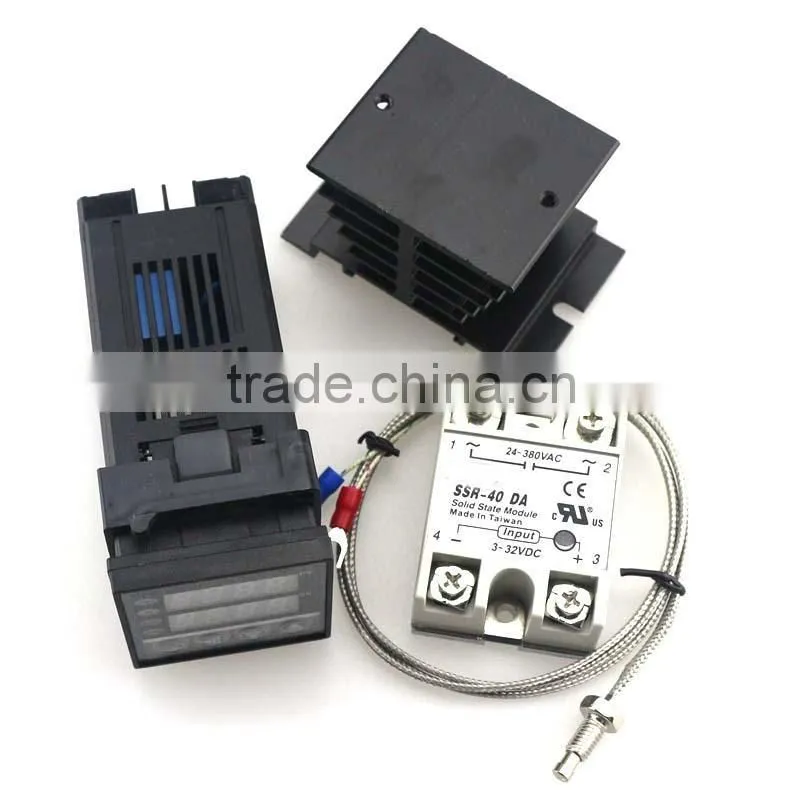

Package include:

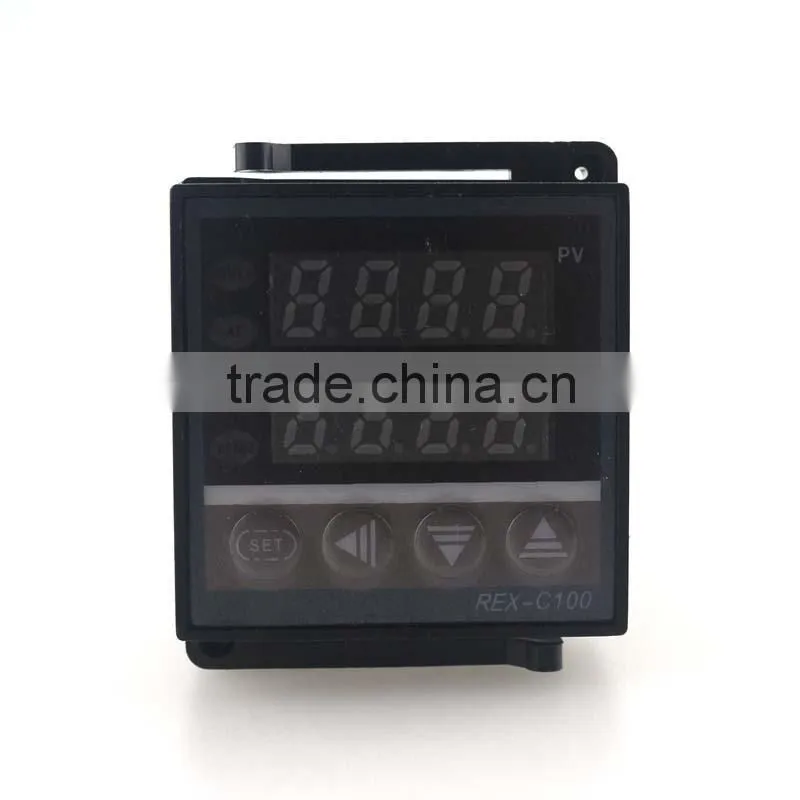

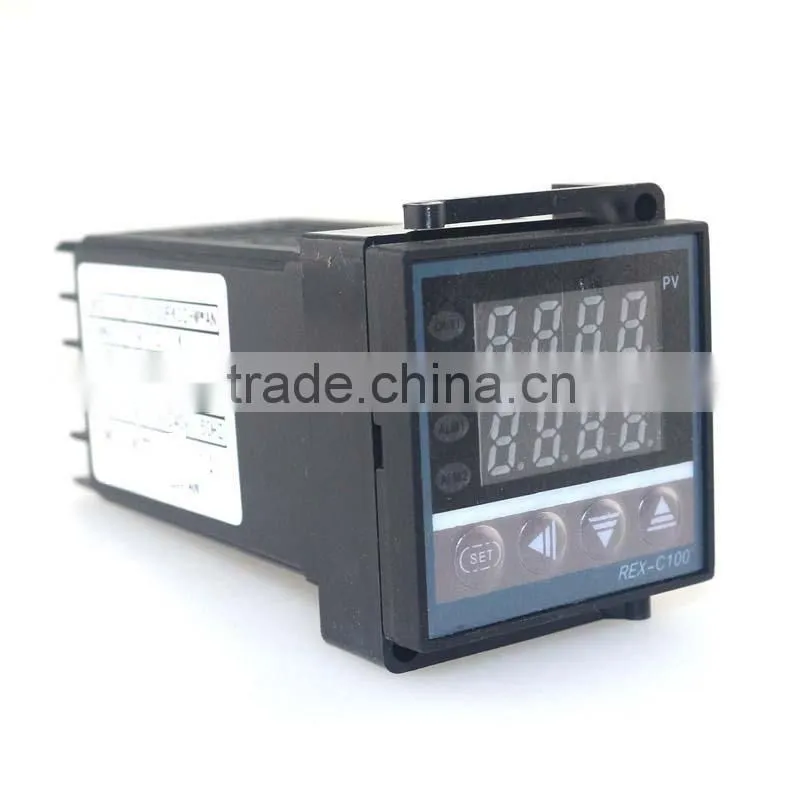

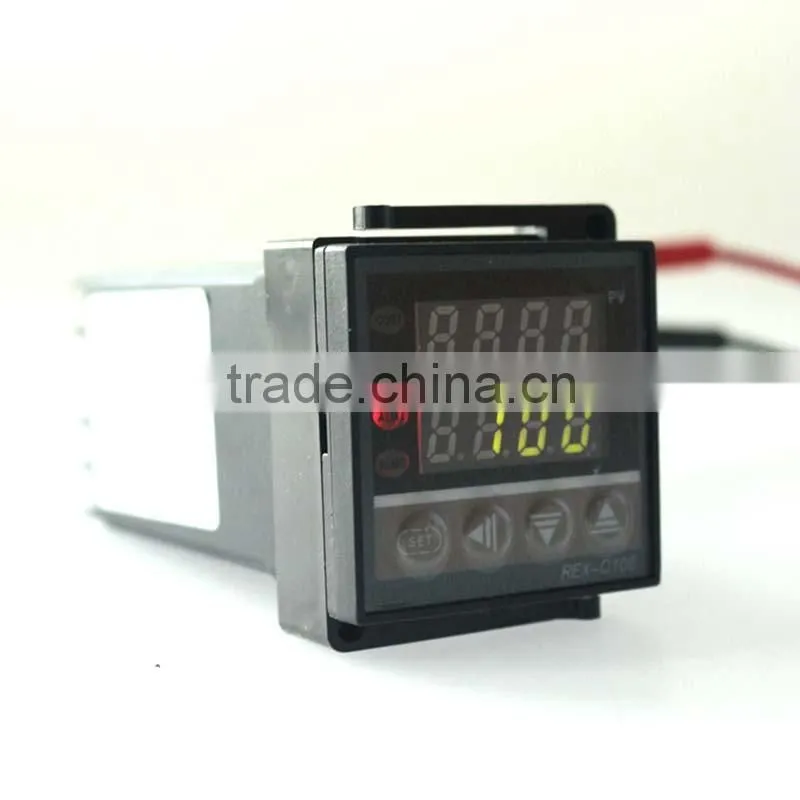

1x REX-C100 PID Temperature Controller SSR output

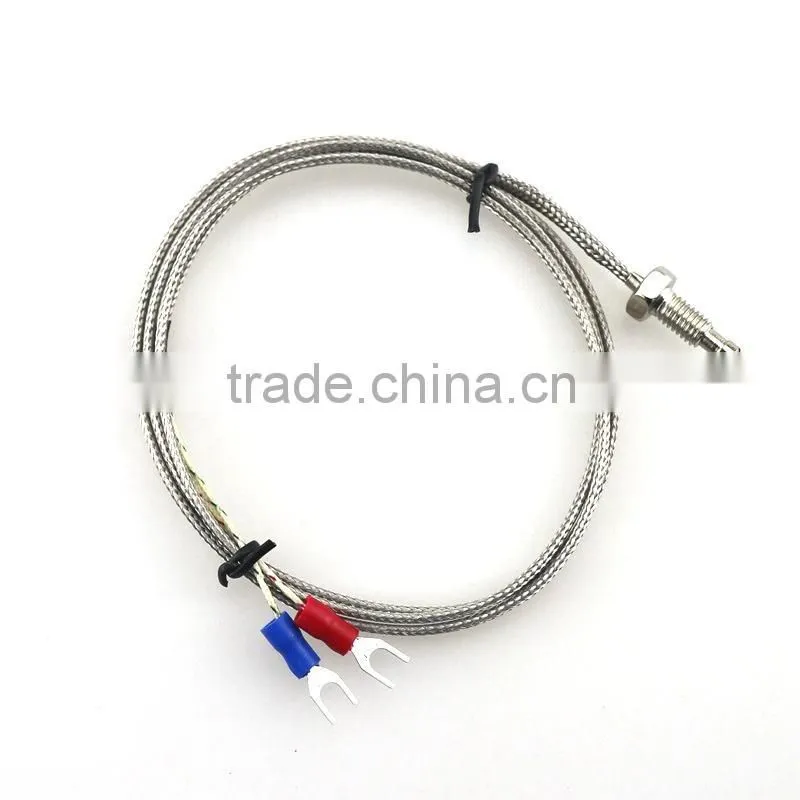

1x K thermocouple ( 0-400C, 2m cable (6 feet).)

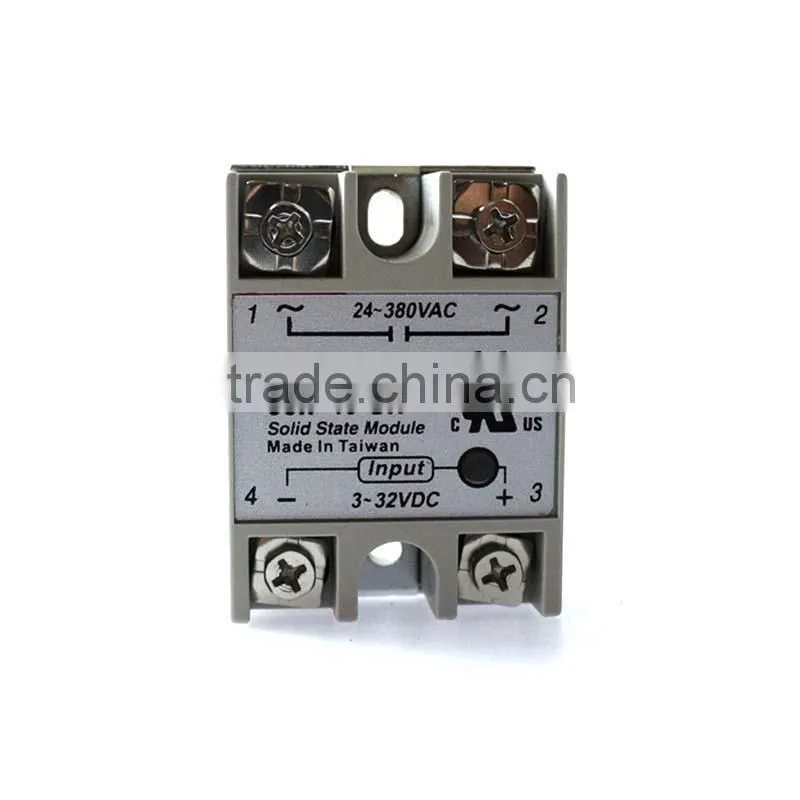

1X ssr 40a

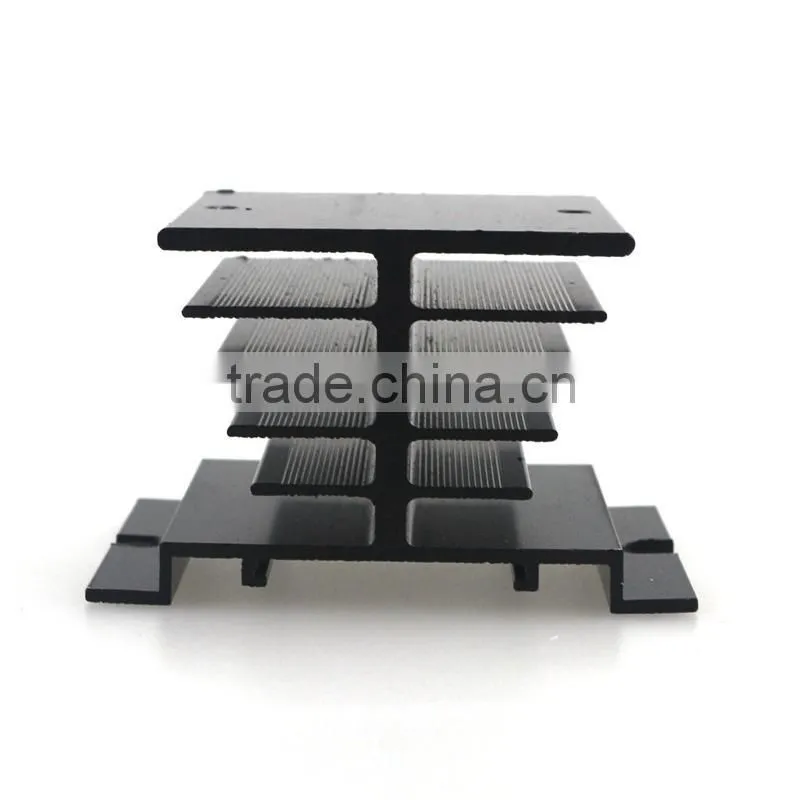

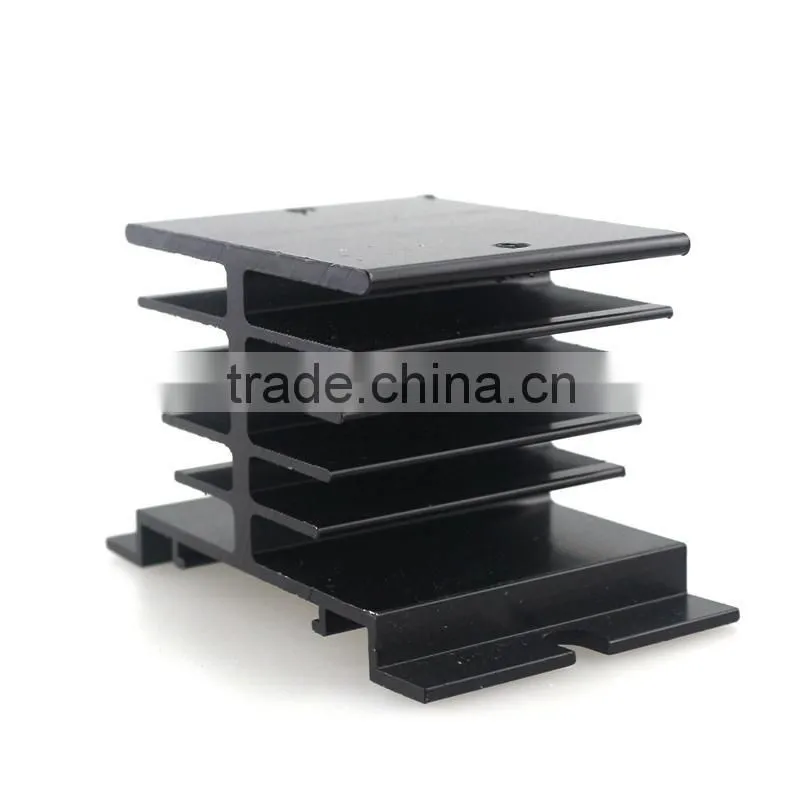

1X heat sink
1x User Manual in English
