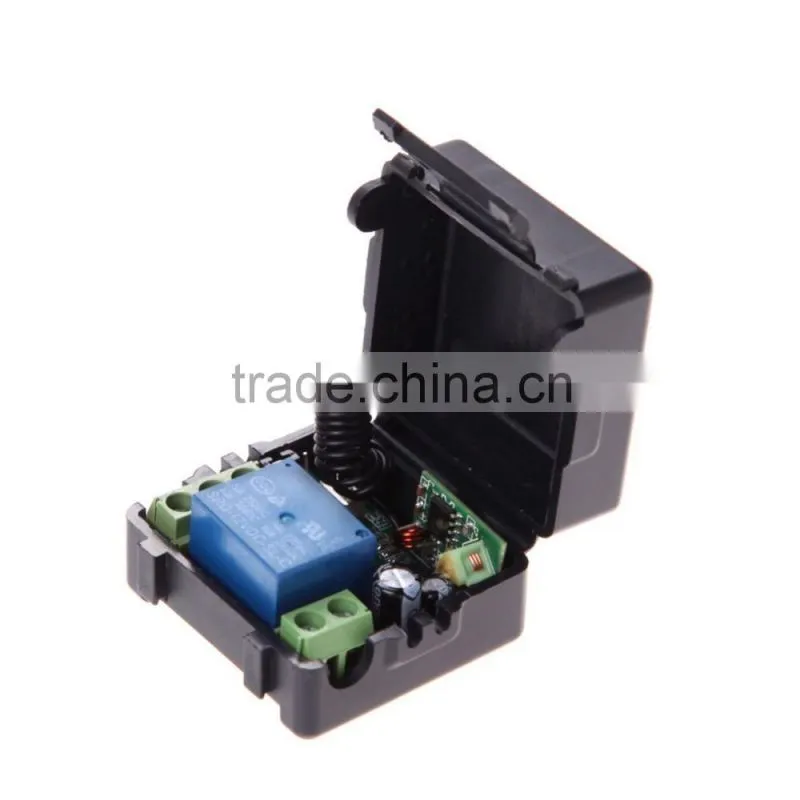

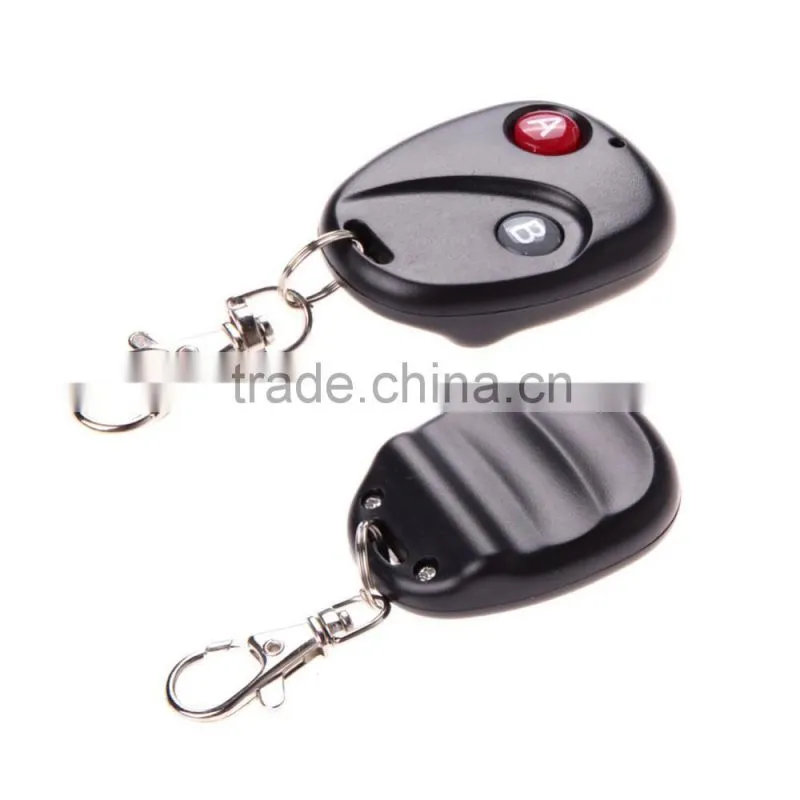

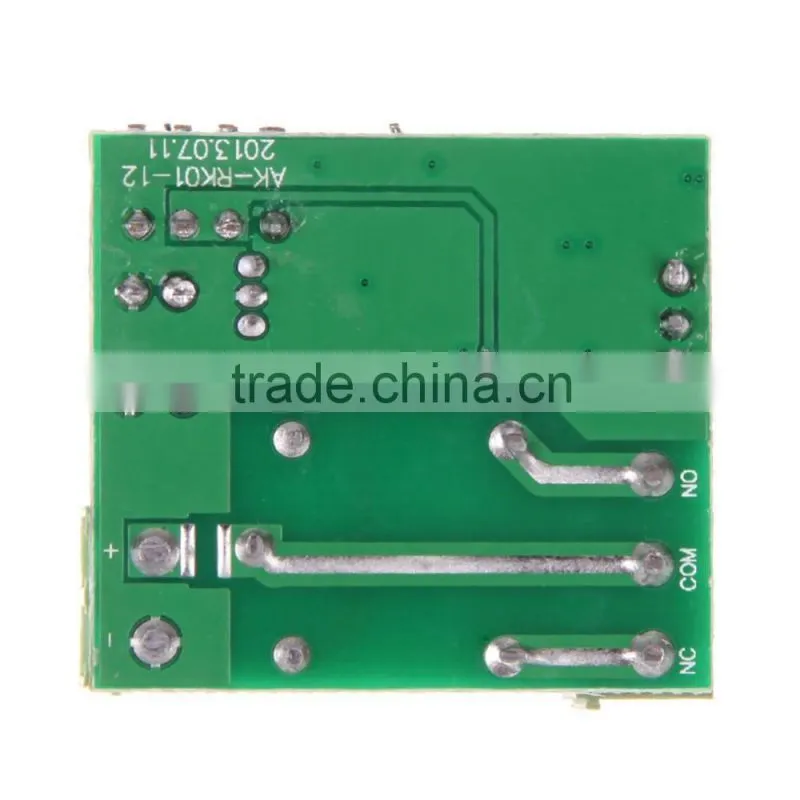

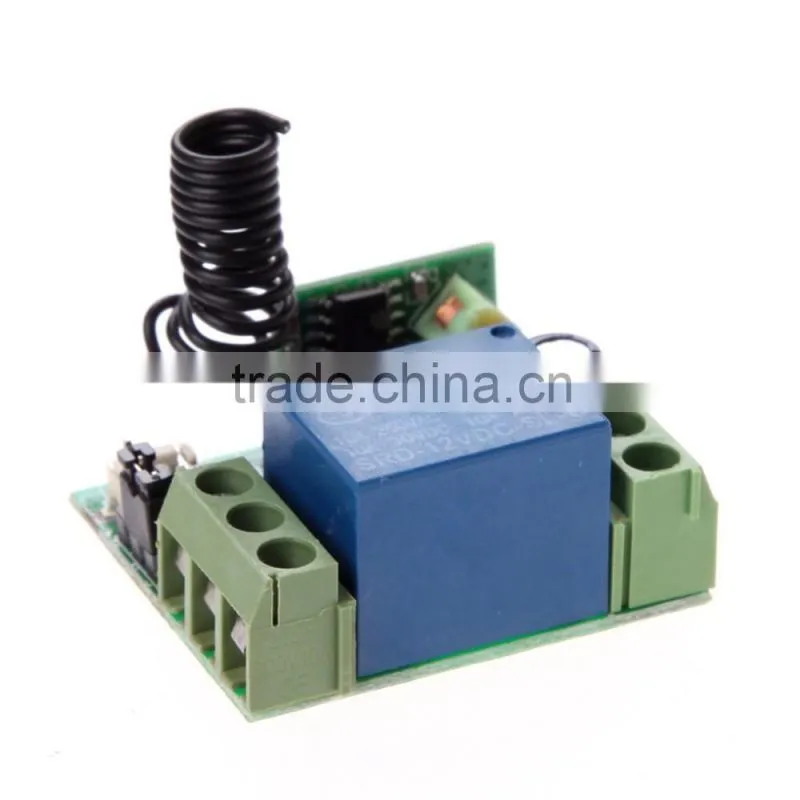

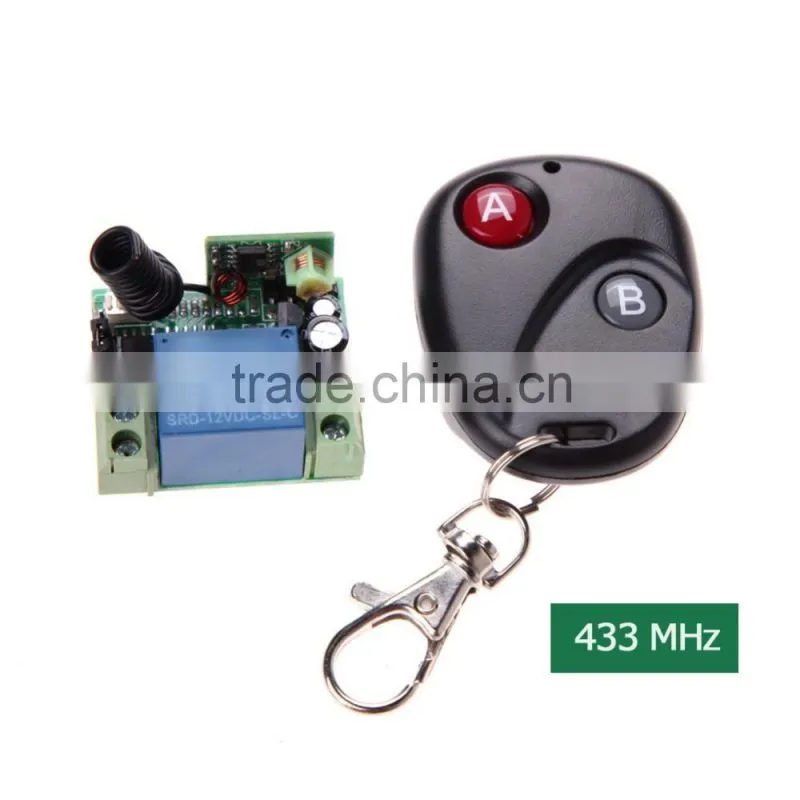

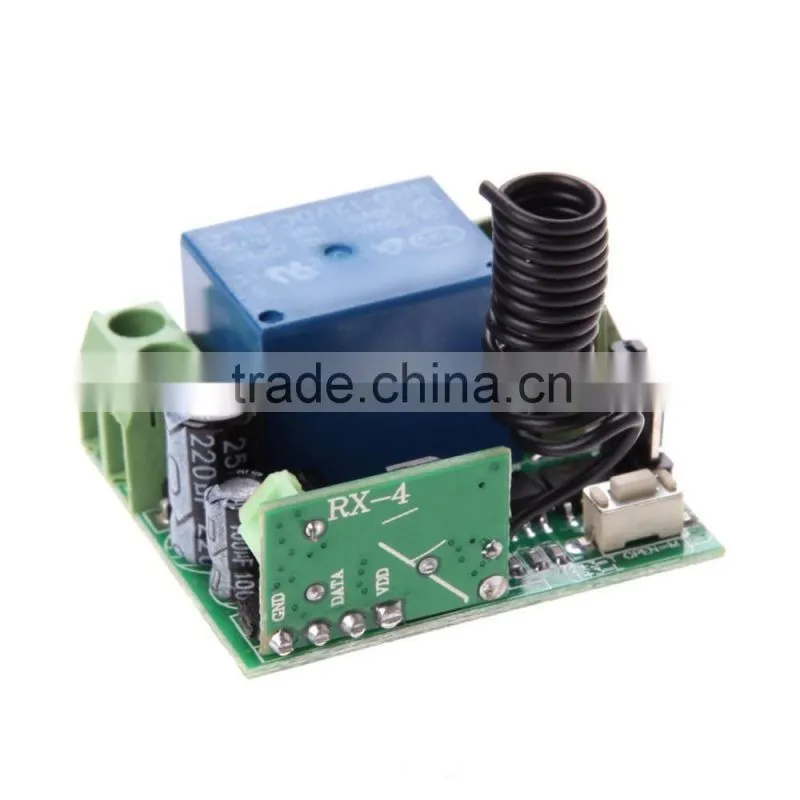

Help CenterNew Universal Wireless Remote Control Controller Switch 1 Single Channel DC12V 10A 433MHz Telecomando Transmitter With Receiver
Related Products
-
Original BeneTech GM900 -50~900C -58~1652F Pyrometer 0.1~1EM Celsius IR Infrared ThermometerUS$ 22.45 - 22.45MOQ: 50 Pieces -
C905W C905 4 Slots Slot LCD Display Smart Intelligent Battery Charger for AA AAA NiCd NiMh BatteriesUS$ 5.94 - 5.94MOQ: 120 Pieces
-
Digital PID Thermostat Temperature Controller Regulator REX-C100 With Thermocouple K Probe,Relay OutputUS$ 8.86 - 8.86MOQ: 100 Pieces
-
MASTECH T3033U T3033 10A Test Lead Probe for DMM Digital Multimeter & Clamp Meters Tester Digital Electrical Multimetre MultitesUS$ 1.36 - 1.36MOQ: 400 Pieces
-
PZEM-021 V2.0 4 in 1 Meter Voltage Current Power Energy Meter Gauge AC 80-260V/20A Voltmeter Ammeter Watt Power Meter TesterUS$ 8.34 - 8.34MOQ: 50 Pieces
Features:
100% new and high quality
Three output working modes for choosing
Safe and flexible for operation and install
Widely use in house, mall, electromobile, cars, motorcycle anti-theft alarm system or other control systems
Specified as preferred components in remote control garage, roller curtain, door locks, remote sensing, telemetry, industrial control and wireless security alarm industry
Specifications:
Size: 35*32*17mm
Operating voltage: DC 12V
Operating Current: 6mA
Operating frequency: 433MHz
Operating temperature: -40 to + 80
Receiver sensitivity: -105dbm
Output voltage: DC
Output Current: 10A
Code: Learning code. (Jog/ Non-Locked, Inter-lock/ locked, Auto-lock / Auto-Locked)
Output working way:
Jog /Non-locked: Press a button is working/ on and loosen your finger on the same button is stop/ off. (A channel change needs a remote control button)
Auto-lock: Press one button for one time is working/ on and press the same button is stop/ off. (A channel change needs a remote control button)
Inter-lock / locked: Press a button is working/ on and press another button is stop/ off. (A channel change needs 2 remote control buttons)
Learning and removing method:
1. Learning method: Press the learning code for 3 seconds. The indicator will be off, and then loosen your finger, press any button of the remote control to transmit signal, the indicator flash 3 times and then normally on which means you learn it successfully.
2. Remove/clean method: Press the learning button about 8 seconds, the indicator will be from being off to on all the time, it means the information that you keep have been removed successfully.
