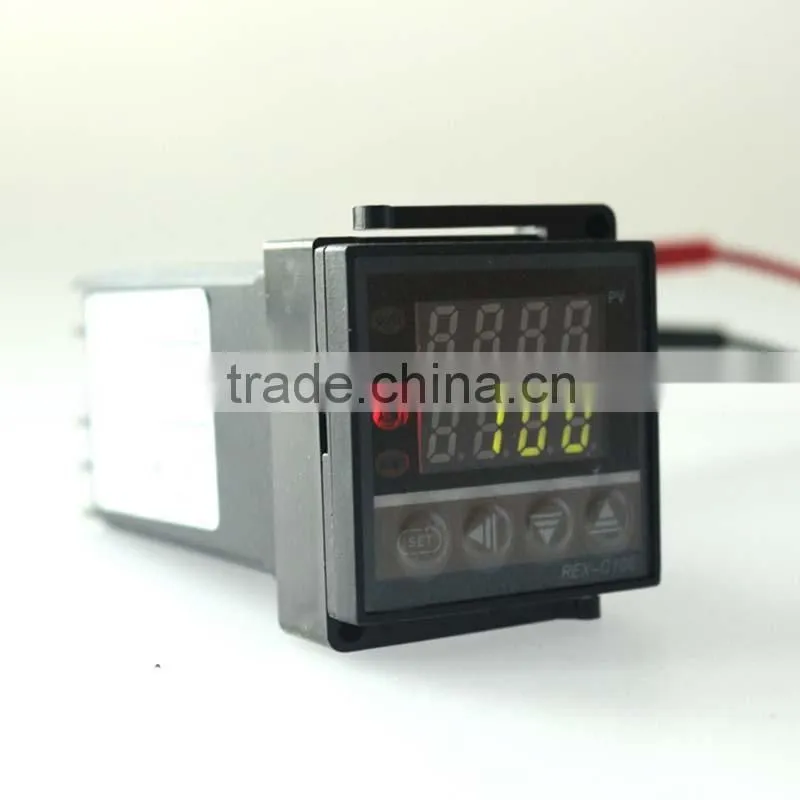

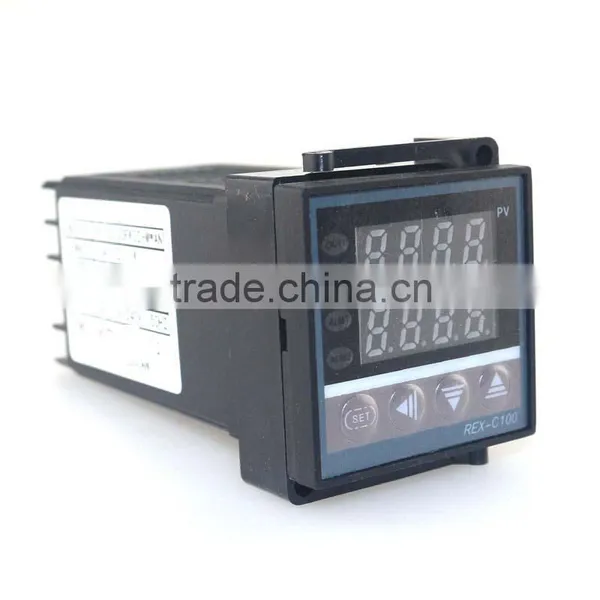

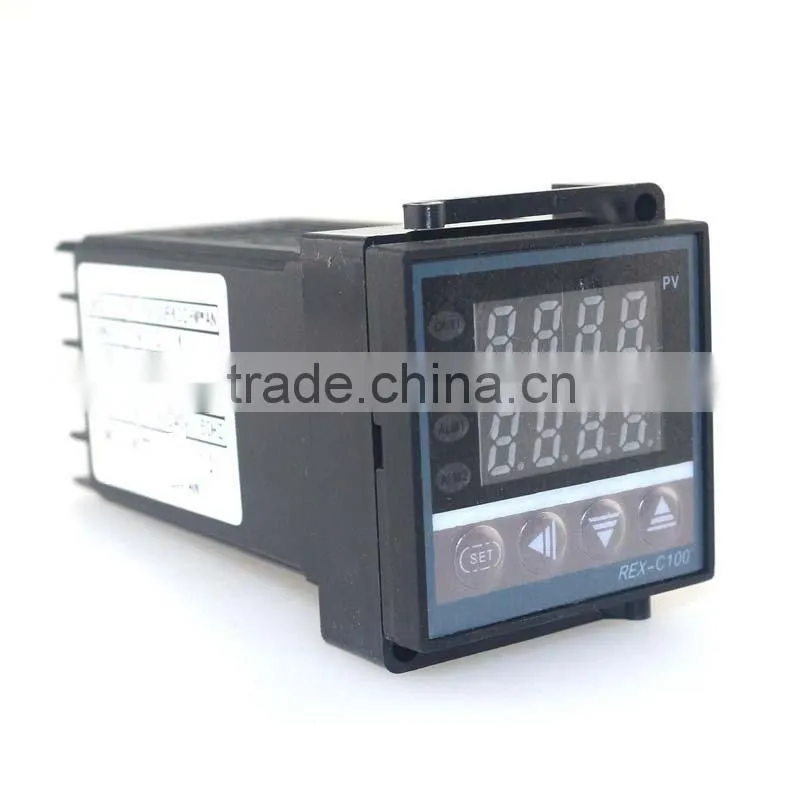

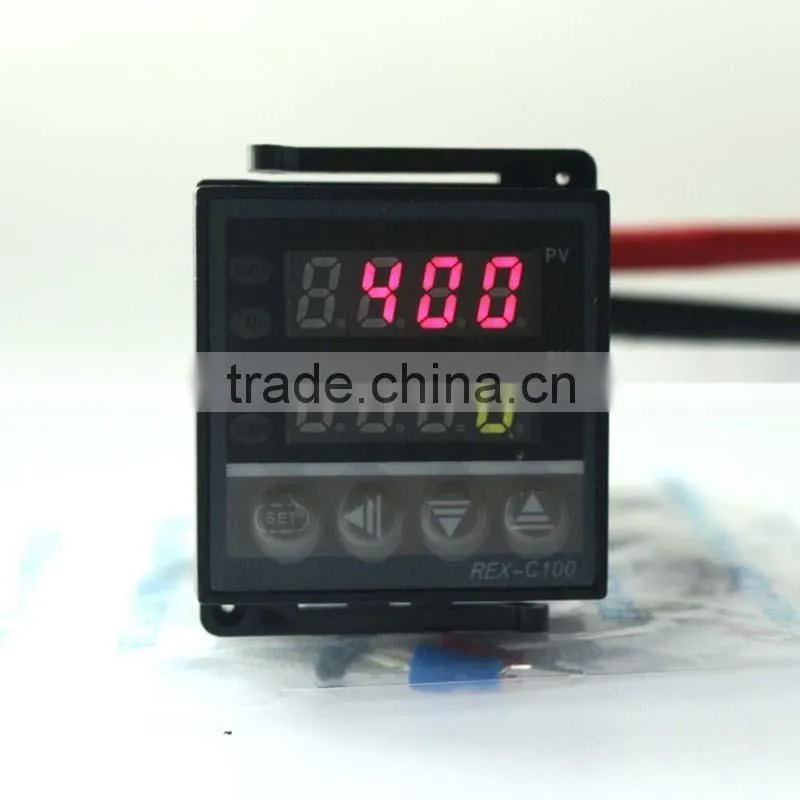

Help CenterDigital PID Thermostat Temperature Controller Regulator REX-C100 With Thermocouple K Probe,Relay Output
Related Products
-
MASTECH T3033U T3033 10A Test Lead Probe for DMM Digital Multimeter & Clamp Meters Tester Digital Electrical Multimetre MultitesUS$ 1.36 - 1.36MOQ: 400 Pieces -
PZEM-021 V2.0 4 in 1 Meter Voltage Current Power Energy Meter Gauge AC 80-260V/20A Voltmeter Ammeter Watt Power Meter TesterUS$ 8.34 - 8.34MOQ: 50 Pieces
-
36W UV Lamp LED Ultraviolet Lamp UV Nail Dryer Dryers Nail Lamp Diamond Shaped Curing for UV Gel Nail Art ToolsUS$ 19.80 - 19.80MOQ: 40 Pieces
-
RingDer RC-112E 220V 10A Digital LCD Digital Thermostat Regulator Temperature Controller With 2M NTC Sensor Probe for Aquarium RUS$ 5.99 - 5.99MOQ: 100 Pieces
-
Digital LCD Thermometer Hygrometer Electronic Temperature Humidity Meter Weather Station Indoor Outdoor Tester Alarm Clock ProbeUS$ 3.96 - 3.96MOQ: 200 Pieces
Features:
This is a bid for a dual display universal digital programmable temperature controller that supports many type of thermocouple sensor.
it powered by 100V~240V AC
Model: REX-C100+K thermocouple
PID control
Specifications:

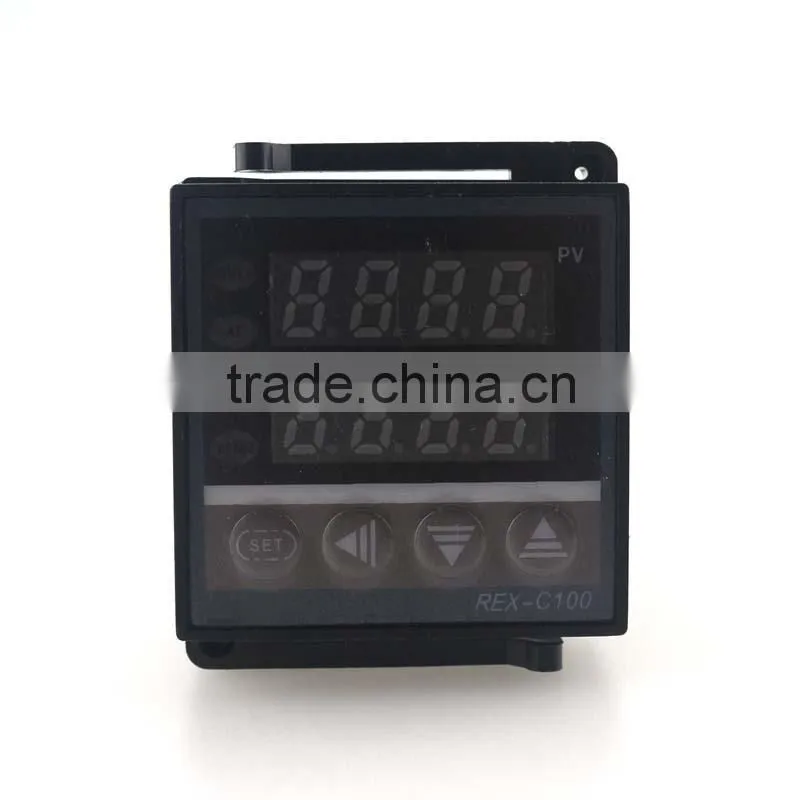

Display: Dual display for Celsius (C)
Range: -0-400C (Only when with the factory K type thermocouple)
Main Output: Relay:
PID cooling/heating control
1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC
7 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval / breakage alarm
Accuracy: 0.5%
Input:
Dimension: DIN: 1/16 (48mm x 48mm x 110mm)
Weight: about 200g
Individually programmable PID control parameters.
P, I, d, controlling period, digital filter coefficient, and more
Relay control ready to connect
K type thermocouple: 0-400C, 1m cable .
Compact design:
DIN 1/8 great form-factor to be included/build-in to your product.
Input: TC(K, J, S, E) / RTD (Pt100, CU50) universal input, or 0-20mA signal.
Control output: RELAY
Alarm output: 1 line output, 7 kinds of alarm mode: high/low/high deviation/low deviation/interval/out of interval/breakage alarm.
Thermo Resistor: PT100, Cu50
Thermocouple: K,J,S,E,R,Wre3 ~ Wre25
Package include:
1x REX-C100 PID Temperature Controller (retail box include)

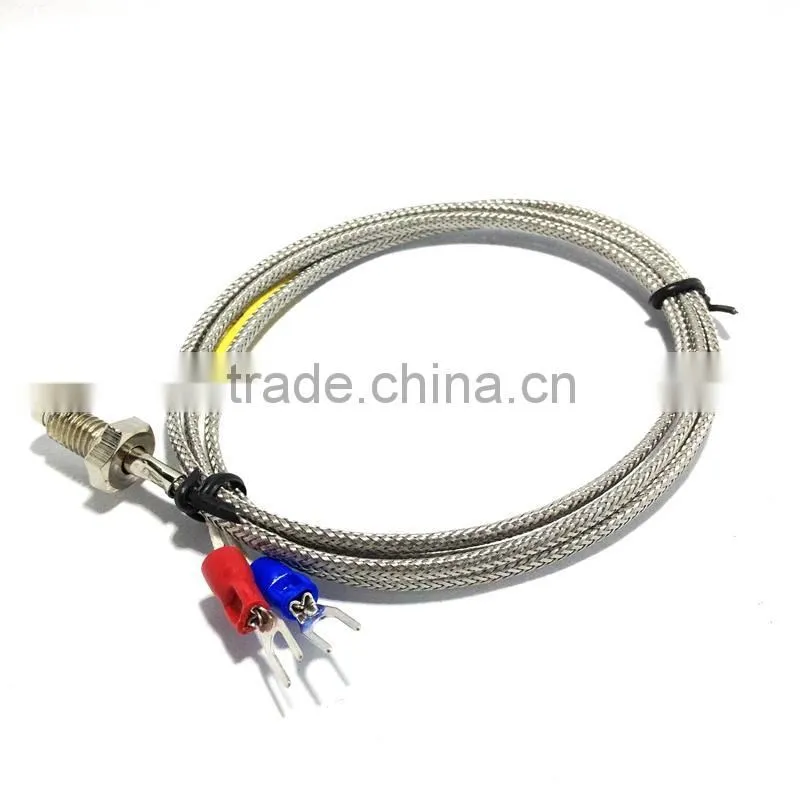

1x K thermocouple ( 0-400C, 1m cable (3 feet).)
1x User Manual in English
