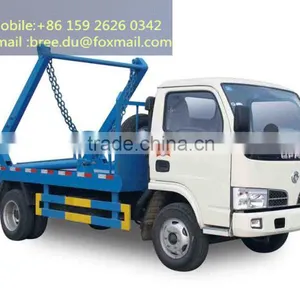

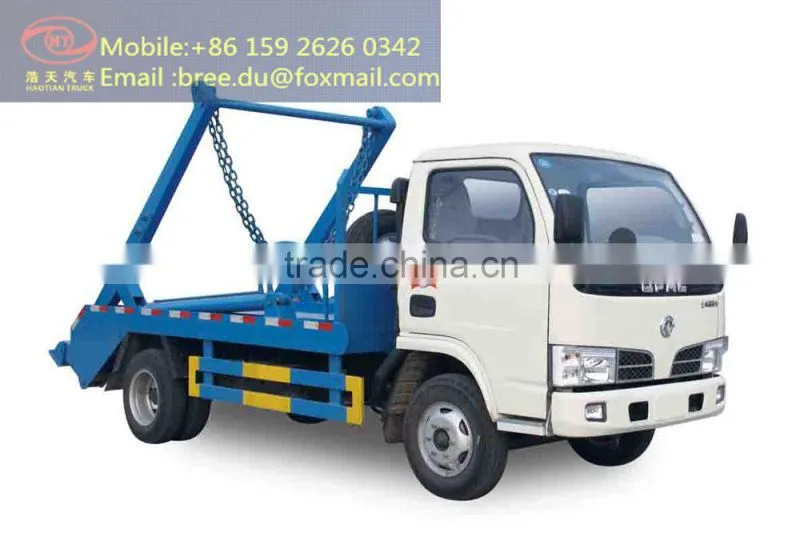

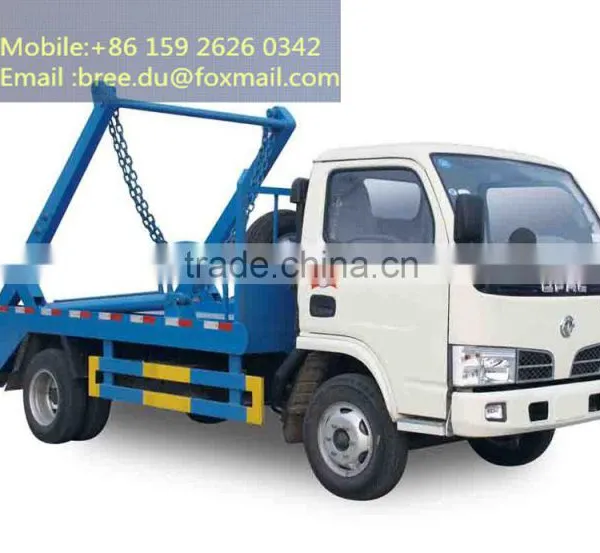

Help CenterArm Swing Garbage Truck Environmental Machinery for City Cleaning
Related Products
-
China Famous Waste Truck With CompactorUS$ 1 - 100,000MOQ: 1 Set -
China Hot Sale Famous Garbage Dump Truck 6*4US$ 1 - 100,000MOQ: 1 Set
-
2015 Hot Sale Swept-body Refuse CollectorUS$ 1 - 100,000MOQ: 1 Set
-
2015 Hot Sale End-loading Compacting Garbage TruckUS$ 20,000 - 80,000MOQ: 1 Set
-
Dongfeng Rubbish TruckUS$ 20,000 - 80,000MOQ: 1 Set
MAIN SPEC. | ||
ITEM |
MODEL&SPEC |
MANURACTURER |
SPECIAL VEHICLE |
CLQ5040ZBS3 |
Hubei |
CHASSIS |
EQ1040TJ20D3 |
DFAC |
ENGINE |
CY4102-C3FYC4F90-30 |
Dongfeng Chaoyang Diesel(DCD) / Yu Chai Diesel (CYD) |
CHASSIS TECHNIQUE PARAMETERS: | |||
ITEM |
MODEL&SPEC. |
ITEM |
MODEL&SPEC. |
Drive System |
4*2 |
Exhaustion Standard |
GB3847-2005,GB17691-2005 CN Standard 3 |
Emission(ml)/Power(kw) |
3856/70, 2659/66 |
Tyre & Spare Tyre Spec. |
6.50-16 |
Gross Mass/Rated Mass/ Kerb Mass(Kg) |
4495/1000/3365 |
No. of Leaf Springs |
6/8+4 |
Dimension(L*W*H)(mm) |
5995/2000/2900 |
F/R Suspension(mm) |
1032/1488 |
Wheelbase/Axis No.(mm) |
3300/2 |
Approach /Departure Angle(°) |
19/15 |
F/R- Gearcase |
F:1.5t R:3 t |
F/R Truck(mm) |
1506/1442 |
Driver Cab |
Cab over, Line |
Clutch |
Single-Disc,Dry Diaphragm Spring Clutch |
Steering-Gears |
Dual-spoke Steering Wheel, Recirculating ball steering |
Brake System |
Hydraulic Brake System, Drum brakes; Air Brake (Option) |
Gearbox |
D1,2,3,4,5, R; Mechanical transmission,Wire soft shaft controlling |
||
VEHICLE MODIFCATION TECHNIQUE INFORMATION | |||
ITEM |
SPEC. |
ITEM |
SPEC |
Cubage(m3) |
4-5 |
Manufacturer ID |
Matches CN standard |
Hydraulic Pressure |
16MPa |
Painting |
Metallic Paint |
Radius-Rotation (Crane Boom) |
2400mm |
Spare Parts & Accessories |
Maintenance Manual,Services Stations List,Introduction,Tools |
Max Swing Angle(Crane Boom) |
145 |
Scoop Hoisted Time |
30s |
Scoop Hoisted & Unloaded Time |
50s |
|
|
Products feature |
Garbage container could be lifted on/off and motive repeated within 80 second periodically. Advantaged in separated garbage tank and vehicle body designing that ensures implement work of one vehicle with multi-garbage tanks associated works. Furthermore, cycle-transportation enhanced vehicle’s freight capacity effectively which are widely applicable for short-way transportation by environment-sanitation department. |
||
Hubei Haotian Special Automobile Co., Ltd is specialized in manufacture and marketing of different special automobiles. We are a group management company, and established the wholesome system of manufacture and marketing by the way of joint venture, holding, participation to integrate the resources of the industry. We are successively in the way of joint venture, holding, participation with Hubei Haotian Special Automobile Co., Ltd, Hubei Lutong Special Automobile Co., Ltd, Haotian in Hongkong Special Automobile Co., Ltd. In order to Expand the overseas market, we established the overseas sales and service channel to engage in the trade and investment of overseas sales channel.
The company employ over 1,000 staffs, have a strong technology R&D team and owns plasma cutting machines, plasma screwing machines, large-scale computerized numerical control plate bending machine, automatically welding machines, goliath carling welding machine, cylinder automatic welding machine, cylinder welding special tooling machine, drum equipment ,blade forming mould and so on, more than 300 advanced production equipments .Main products are: road wrecker truck, concrete mixer truck, oil tanker truck, chemical liquid delivery truck, bulk powder delivery truck, crane truck, aerial operation truck, rescue truck ,emergency fire truck, fire sprinkler truck, semi-trailer, sanitation garbage truck, water truck, etc. In order to meet the requirements from different industries, we have been developed the pressure vessel, aluminium tanker, high technology sanitation truck and small construction machinery.
