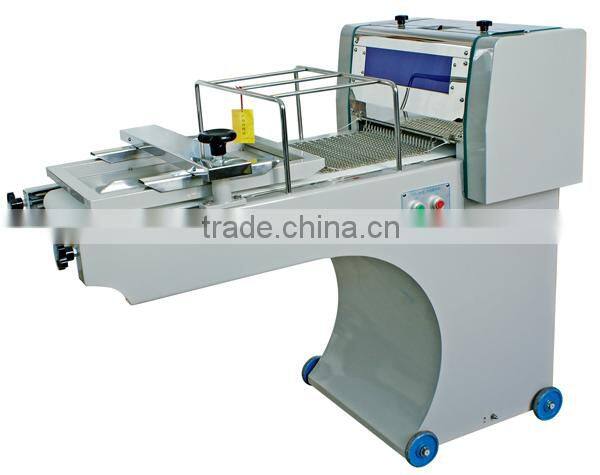

Toast Moulder/dough Moulder(CE)

Toast Moulder/dough Moulder(CE) thumbnail-1
Toast Moulder/dough Moulder(CE) photo-1
US$ 1,111 - 2,222 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
CNIX
Model Number:
CG-38
Contact Supplier Request Quote Chat Now
Shanghai Yixi Food Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name CNIX
Model Number CG-38
Type Other, Grain Processing Equipment, Dough, Dumpling,Samosa & Empanada

Specifications

toast moulder(CE)
Oil immersed design
pressing wheel treated by hard chromium
High speed

1.    Features:



The forming machine is for shaping long or square loaf with high effectiency for restaurants  or  cake  rooms. This machine is used in the production side of the special production equipment package, with high production efficiency, can save a lot of labor force characteristics. Suitable for hotels, restaurants, bakeries and other establishments to use



2.    Notes:

The two-pole (~220v) or three-pole (3~380v)circuit breaker with electric leakage protection should  be installed on 1.2M of the wall beside the machine.

When ~220V,50Hz,select 16A(30mA) circuit breaker.

When 3~380V,50Hz, select 16A(30mA) circuit breaker.

  1. Connect the power as the nameplate and the waie voltage attachment should be connected by the technician accord the situation of the user.
  2. Don’t clean or lubricate the machine when operation.
  3. With thermal overload relay protection.
  4. 3.    Technical Index:

Rated Voltage

Rated Power Input

Rated Current

Thermal Cut-out

Current

Weight

Size

(mm)

3~380V

0.75kW

2A

3A

208Kg

500X1050X1300

~220V

6.8A

10A





4.    Usage:

  1. Adjust the pressing sticks and the protecting slices accord to the shaping requirement.
  2. Adjust the pressing board accord to shaping requirement.
  3. Start the machine and put the dough into the inlet,the dough pressed down, rolling up then in shaped .(Input the dough safetly, the hand should keep min.30mm from the inlet.)



5.    Maintenance:



  1. All maintenance and cleaning should under all-pole disconnection,wipe the machine but don’t spray with water  so as to keep the safety.

    1. Clean the machine after each usage.
    2. Check the lubtication of the decelerator annually and lubricate the machine periodically.toast moulder/dough moulder(CE)

D.  Change the supply cord with YZW.(No.57 of IEC60245)

6.Analysis:

No.

Performance

Reason

Method

1

Reversal direction of the belt conveyor

Turn-over of the power generation

Exchange the two of the 3~380V lines

2

The single-phase power generation doesn’t run after connection
  1. The centrifugal generation switch point disconnective
  2. The start capacitance         damaged
  3. Check and maintenance
  4. Change the capacitance


3

Start with no power
  1. Slack belt
  2. Over-low voltage
  3. Tight up the belt
  4. Raise the voltage


4

Stop suddenly with over-load working long time

The power generation over heat.

Tight open the back board and press down thered button
