Zhitai Electric 2pc Thread End Ball Valve

Zhitai Electric 2pc Thread End Ball Valve thumbnail-1
Zhitai Electric 2pc Thread End Ball Valve photo-1
US$ 10 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
High Pressure
Contact Supplier Request Quote Chat Now
Zhejiang Zhitai Self-Control Valve Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Ball
Pressure High Pressure
Power Other, Electric
Material Stainless Steel
Temperature of Media Normal Temperature
Media Water
Port Size 8.5-5496mm
Place of Origin Zhejiang, China
Model Number AT040-AT280
Brand Name ZhiTai

Specifications

pneumatic ball valve
1.High quality and inexpensive,fast delivery
2.ISO9001, CE certificate,ATEX/CE/MD/CQC

zhitai high quality  flanged  ball valve   / Zhitai Flanged Ball Valve with Pneumatic Actuator / zhitai  Electric  2pc Thread End  Ball Valve







Detailed Product Description



1)Size:1/4"-4"



2)Max pressure:Class 400,PN64,1000WOG



3)Temperature Range:-20oC~250oC



4)Suitable medium:Water,Oil,Gas,and Some corrosive liquid







5)Thread type:G.NPT.BSPT.BSP DIN259/2999







Main Materials



1)Body&Cap Material: WCB, , CF8, CF3, CF8M, CF3M,



2)Ball and Stem: SS304, SS316,SS304L,SS316L,SS410,SS416.etc.



3)Valve Seat: PTFE / RPTFE / PPL,etc







The specifications can be designed and satisfied for customers' special requirements

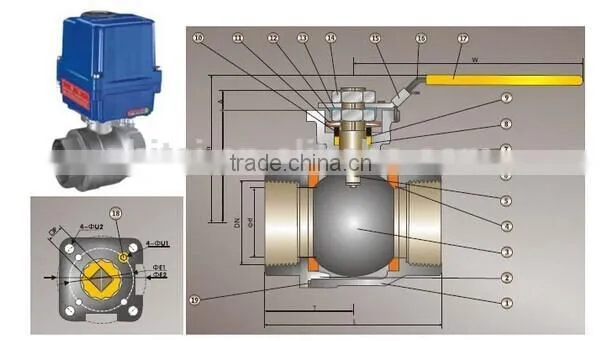

2-PCS valves dimension table







DN(inch)
ΦD
L
H
H1
A
W
T
ΦE1
ΦE2
P
ΦU1
ΦU2
1/4"
10.6
64
42
72
9
135
32
36
42
9
6
6
3/8"
12.7
64
42
72
9
135
32
36
42
9
6
6
1/2"
15
68
42
72
9
135
32
36
42
9
6
6
3/4"
20
73
49
80
9
135
35
36
42
9
6
6
1"
25
85
58
90
11
170
42.5
42
50
11
6
7
1-1/4"
32
94
63
95
11
170
47.5
42
50
11
6
7
1-1/2"
38
105
71
106
14
200
52.5
50
70
14
7
9
2"
50
125
78
113
14
200
62.5
50
70
14
7
9
2-1/2"
65
155
101.5
150
17
300
77.5
70
102
17
9
11
3"
76
173
109
159
17
300
86.5
70
102
17
9
11















Main parts and materials







No.
Parts Description
Material
1
Body
CF8M
CF8
WCB
2
Bonnet
CF8M
CF8
                 WCB
3
Ball
SS316
SS304
4
Seat
PTFE  RPTFE  PPL
5
Stem
SS316
SS304
2Gr13
6
Anti-Static
SS304
7
Thrust Washer
PTFE
8
Packing
PTFE
9
Transition Washer
RPTFE     Expanded Graphite
10
Packing Ring
SS304
11
Belleville Washer
SS304
12
Nut
SS304
13
Loose Resistant Cover
SS304
14
Handle Nut
SS304
15
Stop Plate
SS304
16
Handle
                                        SS304
17
Handle Cover
Plastic
18
Stop Bolt
SS304
19
Seal Gasket
PTFE









zhitai Electric 2pc Thread End Ball Valve

zhitai Electric 2pc Thread End Ball Valve



IF YOU NEED THE CERTIFICATE AND MORE DETAILED INFORMATION ABOUT PNEUMATIC PRODUCTS, PLEASE FEEL FREE TO CONTACT WITH US.



zhitai Electric 2pc Thread End Ball Valve
