Q41F46-16 Zhitai Pneumatic Lined Ball Valve

Q41F46-16 Zhitai Pneumatic Lined Ball Valve thumbnail-1
Q41F46-16 Zhitai Pneumatic Lined Ball Valve photo-1
US$ 10 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Angle
Pressure:
Low Pressure
Contact Supplier Request Quote Chat Now
Zhejiang Zhitai Self-Control Valve Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Angle
Pressure Low Pressure
Power Pneumatic
Material Alloy
Temperature of Media Normal Temperature
Media Water
Port Size 8.5-5496mm
Place of Origin Zhejiang, China
Model Number AT040-AT280
Brand Name ZhiTai

Specifications

pneumatic ball valve actuator
1.High quality and inexpensive,fast delivery
2.ISO9001, CE certificate,ATEX/CE/MD/CQC

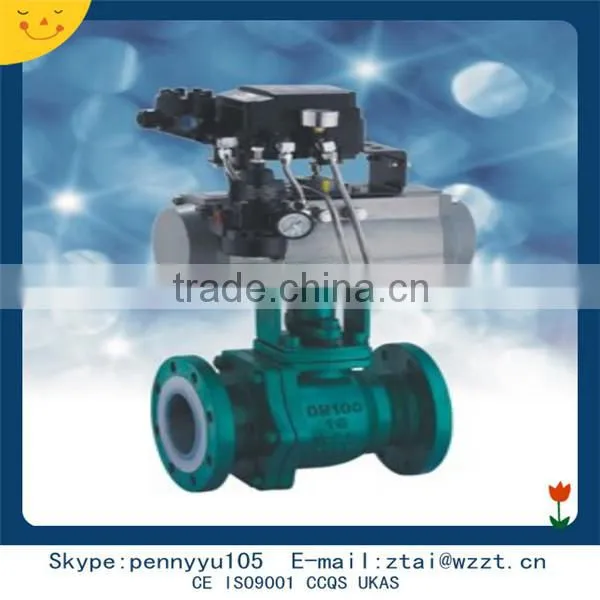

Q41F46-16  Zhitai Pneumatic lined ball valve



Overview:
lined ball valve is used as a lining of fluorine plastic, and with new band rod sphere structure, coupled with its unique elastic lip seal seat structure, it has the advantage of ordinary ball, large differential pressure and temperature changes within a high sealing performance and low operating torque. For the use of the switch or adjust the product is suitable for a variety of industrial pipe conveying liquids and gases (including steam), various acids, bases, salts and other corrosive media can well work for. full size valves provide maximum flow, and can be used to scan lines cleaned or quarantined transport pipeline.
products are widely applicable to a variety of different types of industrial pipe, liquid and gas (including steam gas) conveying severe corrosive media, especially the use of occasions, such as: sulfuric acid, hydrofluoric acid, phosphoric acid, chlorine, alkali, aqua regia with strong corrosive media.
Technical parameters:
design criteria: GB12237-89SNV enterprise Standard
the length of the structure: to GB12221-89 JB1686
flange standard: JB/T79 GB9113 HG20592 ANSI B16.5
nominal pressure: 1.0 1.6 , 2.5MPa 150Lb
Inspection and Test: JB/T9092-99 spark detection
drive mode: Manual, worm gear, pneumatic, electric.

The main dimensions and connection dimensions( mm ):


Nominal Diameter L D D1 D2 b f Z-φd L1 H
Q41F46-16  Q41F40-16 Q41EA-16 Q41F2-16 Q41PO-16
15 130 95 65 45 14 2 4-φ14 120 95
20 140 105 75 55 14 2 4-φ14 130 98
25 150 115 85 65 14 2 4-φ14 150 104
32 165 135 100 78 16 2 4-φ18 190 115
40 180 145 110 85 16 3 4-φ18 220 125
50 200 160 125 100 18 3 4-φ18 230 132
65 220 180 145 120 18 3 4-φ18 270 148
80 250 195 160 135 20 3 4-φ18 300 165
100 280 215 180 155 22 3 4-φ18 330 180
125 320 245 210 185 24 3 4-φ18 600 230
150 360 280 240 210 24 3 8-φ23 800 288
200 400 335 295 265 26 3 12-φ23 1000 325





Pneumatic actuators :



Model Angle of rotation Operating temperature (°C) Pressure range  (bar) Torque  (Nm)
AT040—AT270 0°-180°   -20--+80
  2--8  8.5--5496




Feature:

1. The design of rack and pinion double-piston

2.The extruded high-quality aluminum alloy cylinder ,its longer service life and low friction coefficient.

3.Unibody design ,double acting and single acting have the same cylinder and end cap.

4.Four adjusting screws can make the actuator more accurate .

5.Position indicator consistent with VID/VIE3845,NAMUR standards.

6.The gas source interface in line with NRMAR standard.

7.All fasteners are made of stainless steel ,to enable long-term corrosion resistance.

8.The connection parts are in line with new international standards ISO5211 and DIN3337(F03-F25).







 Q41F46-16 Zhitai Pneumatic lined ball valve

Send Inquiry to This Supplier
