Home > Industrial Equipment & Components > Valve > Ball Valve > We Anderson Sav-stf2-nc,Series Sav-st Angle Seat Valve - Ss Npt

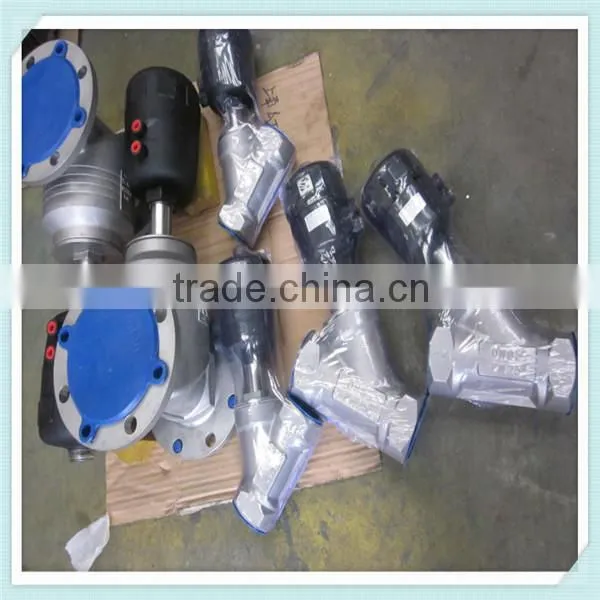

We Anderson Sav-stf2-nc,Series Sav-st Angle Seat Valve - Ss Npt
US$ 20 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Angle
Pressure:
Other, low, medium, high pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
NB/SH
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Q41F46-16 Zhitai Pneumatic Lined Ball ValveUS$ 10 - 5,000MOQ: 1 Set -
Ss/thread/quick Mounted/plastic Head Pneumatic Angle Seat ValveUS$ 20 - 3,000MOQ: 1 Set
-
ZT Cast Iron Ball ValveUS$ 10 - 5,000MOQ: 1 Set
-
Aluminium Alloy Pneumatic Actuator, High Quality Pneumatic Actuator,Spring Return Actuators,Double Acting ActuatorsUS$ 15 - 3,000MOQ: 1 Set
-
ZHITAI Pneumatic ActuatorsUS$ 15 - 3,000MOQ: 1 Set
Standard or Nonstandard
Standard
Structure
Angle
Pressure
Other, low, medium, high pressure
Power
Pneumatic
Material
Stainless Steel
Temperature of Media
Other, normal, high, low temperature
Media
Other, gas, oil, water, acid
Port Size
1/2"-3"
Place of Origin
Zhejiang, China
Model Number
ZT2000L
Brand Name
ZHITAI
Specifications
angle seat control valveSize:1/2"~3"
pneumatic/Electric type
Material :stainless steel
Best price and quality
We Anderson Sav-stf2-nc,Series Sav-st Angle Seat Valve - Ss Npt
|
Pneumatic Angle Seat Valve Body material: S.S316/S.S304 Actuator material: engineering plastic Seat seal: PTFE/FPM Stem seal: PTFE/FPM Piston seal: FPM/NBR Technical parameter Connection size: DN10—DN50 Thread: 3/8" - 2" Applicable medium: water, neutral gas or liquid, alcohol, oil, organic solvent, steam. |
Temperature of medium: PTFE:-10°C—+180°C FPM:-10°C - +100°C Viscidity: Max600mm2/s Downstream installing/Upstream installing Controlling medium: air/neutral gas Controlling pressure: 0.3 - 0.8MPa Working pressure: 0 - 1.6MPa |
| Outline Dimension (mm) | |||||||
|---|---|---|---|---|---|---|---|
| DN | G | L | L1 | SW | H | D | Actuator |
| 10 | 3/8" | 55 | 17 | 21 | 120 | 54 | 50 |
| 15 | 1/2" | 70 | 21 | 26.5 | 135 | 63 | 50 |
| 20 | 3/4" | 76 | 23 | 32 | 145 | 63 | 50 |
| 25 | 1" | 90 | 25 | 40 | 155 | 63 | 50 |
| 32 | 1-1/4" | 116 | 32 | 50 | 200 | 81 | 63 |
| 40 | 1-1/2" | 116 | 32 | 55.5 | 230 | 96 | 80 |
| 50 | 2" | 138 | 40 | 68.5 | 250 | 96 | 80 |
| List of Parts | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.1body | 3.1screw connector | 5.5piston | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1.2cylinder | 3.2V sealing | 5.6flange | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1.3cylinder head | 3.3seal ring | 5.7seal ring | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1.4observation window | 3.4gasket | 5.8gasket | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.1bolt | 3.5spring | 5.9hexagon nut | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.2orifice plate seal | 4.1connecting nut | 5.10spring | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.3seal disc | 4.2seal ring | 5.11position indicator | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.4desc | 4.3lock nut | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.5stem | 4.4leaf spring
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
