Specifications
1.with front lay2.Servo-controlled feeder
3.auto collect paper
4.Oil heated
5.auto laminating and separating processes

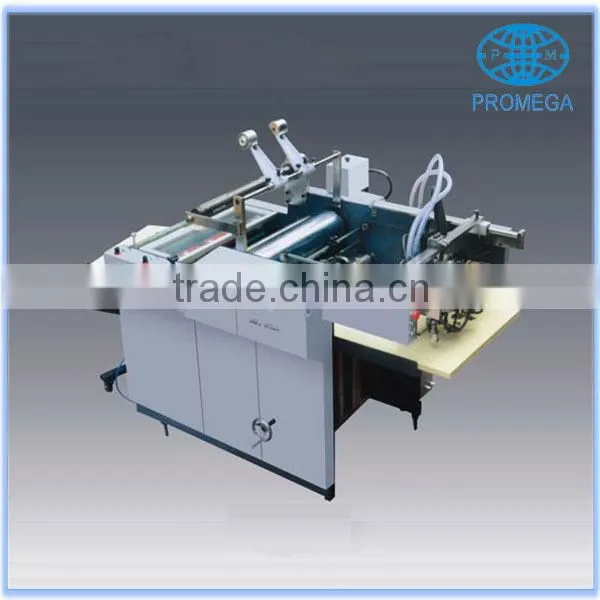

Automatic Film Laminating Machine YFMA-650/800
Features:
1.with front lay
2.Servo-controlled feeder
3.auto collect paper
4.Oil heated
5.auto laminating and separating processes
Detailed product description:
1.Stream feeder, with automatic sheeting and jogger delivery.
2.Oil free vacuum pump on stream feeder with both separating and forwarding suckers.
3.Servo-controlled pump on stream feeder with both separating and forwarding sucker.
4.Oil heated for stable and precise PID electronic control of temperature
5.Film slitting and perforating system on feed roll.
6.Sheet securing device for production of flat laminated sheets.
7.Strong pneumatic laminating pressure.
8.Pneumatic film tension brake.
9.Swing-away film loading onto airshaft.
10.Whole machine is easily moved by pallet trolley for convenient storage in limited spaces
Details:
Technical specification:
Model |
YFMA-650 |
YFMA-800 |
Max laminating size |
650*880mm |
780*1040mm |
Min laminating size |
290*290mm |
290*290mm |
Max speed |
35m/min |
35m/min |
Laminating temperature |
normal-130°C |
normal-130°C |
Paper weight |
127-450g |
127-450g |
Power |
13KW |
15KW |
Total Weight |
1200kg |
1500kg |
Overall Dimensions |
3000*1550*1650mm |
4000*1850*1650mm |
More Choice
Automatic film Laminating Machine PR-520A
https://img13.fr-trading.com/product/1672931927-218190351/Automatic_film_Laminating_Machine_PR_520_A.html
YFMB-720A/920A/1100A/1400A Semi-automatic Film Laminating Machine
https://img13.fr-trading.com/product/1672935266-218190351/YFMB_720A_920A_1100A_1400A_Semi_automatic_Film_Laminating_Machine.html
Manual Film laminating machine YFMC-720A920A1100A
https://img13.fr-trading.com/product/1672876310-218190351/Manual_Film_laminating_machine_YFMC_720A920A1100A.html
woodencase
shipping from Shanghai or Ningbo port
Engineers available to service machinery overseas
One year free replacement parts
We are the first in China developed automatic laminating machine,we do this mahine for 16 years
