Help CenterAutomatic Gluing Machine
US$ 30,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Auto Gluing And Folding MachineUS$ 30,000 - 50,000MOQ: 1 Set -
QZD Automatic Gluing and Folding MachineUS$ 15,000 - 30,000MOQ: 1 Set
-
YL Automatic Corrugated Board Folder GluerUS$ 25,000 - 30,000MOQ: 1 Set
-
JH-2000 Automatic Gluer Corrugated Carton MachineUS$ 3,500 - 4,600MOQ: 1 Set
-
ZXJ Fully Automatic Flexo Corrugated Cardboard Box Glue Pasting MachineUS$ 2,700 - 5,000MOQ: 1 Set
Condition
New
Application
Other, Machinery & Hardware
Packaging Type
Cartons
Packaging Material
Paper
Automatic Grade
Automatic
Driven Type
Electric
Place of Origin
Hebei, China
Brand Name
CangHai
Model Number
2000 2400 2800
Dimension(L*W*H)
11500X3200X1800
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
High quality and high speed.Adjust the speed by digital.
Automatic feeding, gluing and folding,counting,piling and outputting

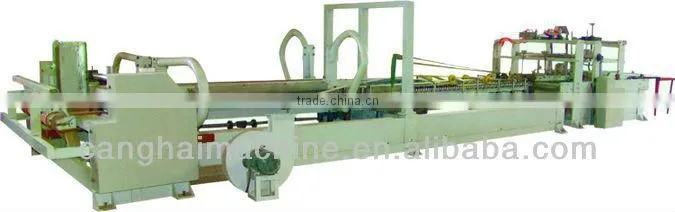

QZD Full Auto Gluing And Folding Machine
YL-QZD automatic is consist of three parts which are paper feeding part, glue folding part and counting piling part. Adjust the speed by digital , micro-adjust the phase by computer, with simple quick reliable and precise controlling style, automatic feeding paper, automatic gluing and folding, automatic counting, automatic piling and outputting. Average sticking speed is 150pcs/min , max speed is 220 pcs/min . High efficiency,environmental is our top pursuit.
Main Specificatiom:
| Modle | LY-2000 | LY-2400 | LY-2800 |
| Max.Cardboard | 1000×2000mm | 1200×2400mm | 1400×2800mm |
| Min.cardboard | 260×600mm | 300×800mm | 300×800mm |
| Installation area | 2400×13500mm | 2800×15500mm | 3000×15500mm |
| Power Required | 6.5KW | 8.0KW | 10.5KW |

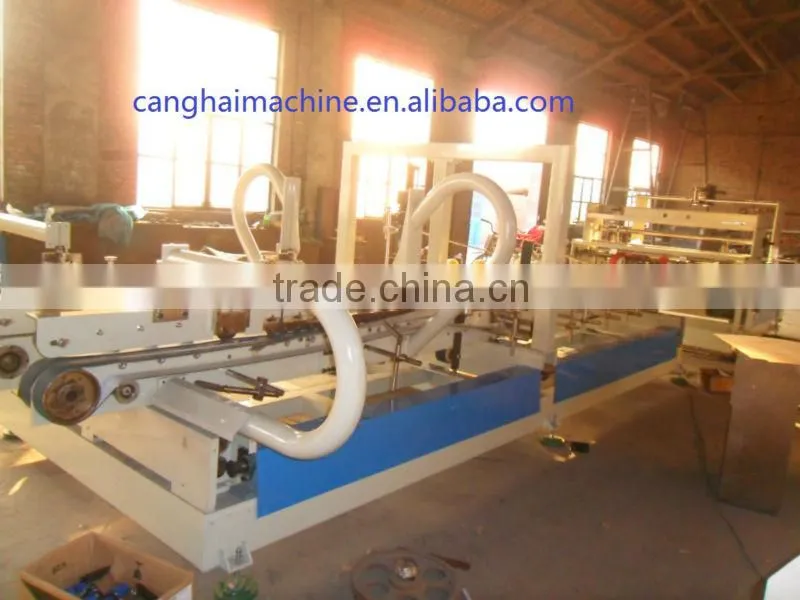

Image:
There are two machine working videos for your reference.
If you are interested in our products or have any questions, welcome to send an email to me .
