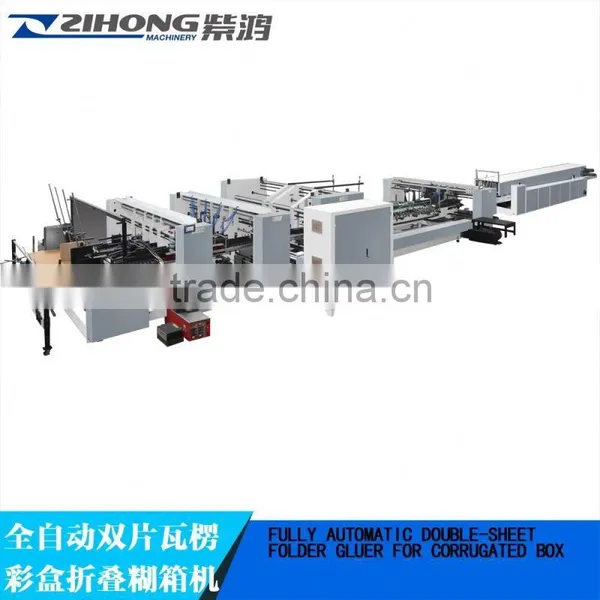

Help CenterZH-780AC 4/6 Corner Automatic Filming Folder Gluer Machinemodular Type
Related Products
-
ZH-1050PC Automatic High Quality Paper Cake Box Pasting MachineUS$ 45,693 - 45,693MOQ: 1 Set -
ZH-1050PC-Automatic High Speed Cake Box & 4/6 Corner Folder Gluer MachineUS$ 45,693 - 45,693MOQ: 1 Set
-
ZH-1050PC-Fully Automatic Corrugated Box Making Folder Gluer MachineUS$ 45,693 - 45,693MOQ: 1 Set
-
ZH-1050AC Machine To Make Cardboard Pizza Pie BoxesUS$ 45,693 - 45,693MOQ: 1 Set
-
ZH-1050AC Hot Glue 4 &6 Corner Gluer Folder Machinery For 4 &6 Corner Pizza BoxUS$ 45,693 - 45,693MOQ: 1 Set
cake box making machine
Characters
1.Driving by synchronous belt,ensure smooth and accurate running
2.Inverter driving,stable and power saving
3.Use tooth bar adjust(for higher configuration use electric adjust),easy operate
4.Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled
suction belt),to keep the feeding stable.
5.Special three plate prefolding as optional
6.Two upper glue device and two lower glue device ,for different kind gluing.
7.Automatic counting and kicking ,quantity can preset.
8.Conveyer pressure adjustable according to the box to ensure best quality
Technical Parmeters
Model |
ZH-780AC |
Suitable material |
Card board,E flute corrugated board |
Feeding method |
Automatic continuous feeding |
Max mechanical speed |
350m/min |
| Overall dimension |
10500*1550*1450mm |
| Weight |
5.5T |
| Power consumption |
11.8KW |
| Glue type | Slovent |
Optional Configuration
High frequency Plasma
Yaskawa servo system(for 4/6 corner box)
HHS glue sprary system (for 4/6 corner box)
About Factory
Warranty Service:
Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During
this period, the seller will offer free maintenance and free spare parts that caused by the machine’s quality,
but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not
covered by any warranty.
