Specifications

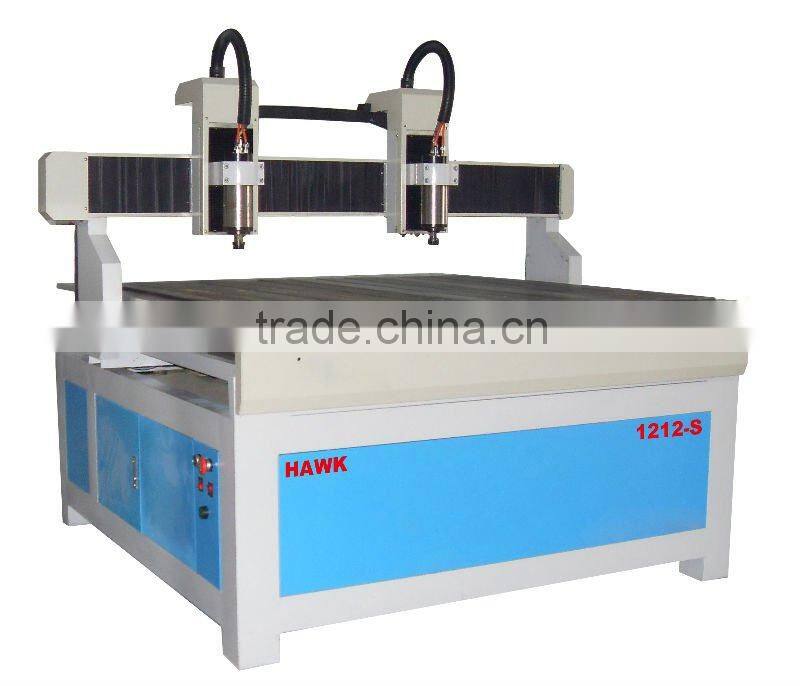

Advertising machinery1.CNC router spindle:1.5kw
2.CNC advertising machine spped:24000rpm
3.Double spingdles,higer effieiency
Advertising machinery
Using industry:
Advertising signs,logo making,acrylic cutting,plastic molding,decorative products,a variety of materials,production fo advertising and others decarations.
Model Features
1.The body of the equipment is made with welded,it’s too firm to be out of shape.
2.By brand imported from Italy HSD air cooling spindle,high precision and soomth operation,high efficiency,long sevice life,can work continuously for long time,adaptable.
3.Compatible type3,wentai,artcam and other softwares.
4.Select the advanced DSP operating system,completely off-line work,do not take up any computer resource.
Main technical parameters
Table Size | 1300*1300mm |
X.Y.Z axis working area | 1200*1200*100mm |
Resolutions | 0.025mm |
Repeat accuracy | 0.05 |
Spindle power | 1.5KW(water) |
Spindle speed | 24000rpm |
Max speed | 12000mm/min |
Max cutting speed | 10000mm/min |
Working Voltage | AC220V/50-60HZ 2phase |
Software | Type3 software/France |
Controls | Pcimc-53c |
Command Code | G code |
