Specifications
with dust -proof cnc router engraving machine1.Max speed:35000 mm/Min
2.Adsorb power:6kw(water)
strong structure bed

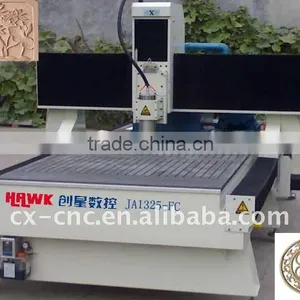

With Dust -proof CNC Router Engraving machine
Model:XK1325-FC
Using : engraving ,drilling processing,sculpture,pattern on doors and windows,furniture decorative material.3D wave plate.cupboard doors,cabinets,model,musical instrument ,milling machine
1. using imported straight _quadrated rail ,which imported from TaiWan.Two rows and four lines_rolling block devices that ensure it is high loading capacity and moves steadily.the imported screw rod from Germany is very precise.
2.The use of advananced dual_gear shaft of the y_axis rotation rack,intergration of control cabinet and the cabinet.,not occupy the space.
3.software has good compatibility and is compatible with several design software such as type 3/artcam/castmate/weitai and variety of CAD/CAM design software generate code which is processing.Ensure that the design barrier_free.
4.has a power outage continued carving ,power failure recovery,processing time prediction function ,the real humanism design come true.
5.improve the auto_lived oil lubrication system for extended service life of the body
Description XK1325-FC
Machine description |
Model:XK1325-FC |
Table size |
2150*3300mm |
Working area |
1300*2500*200mm |
Max cutting speed |
20000mm/min |
Max speed |
35000/min |
X-Y axis movement |
Rack and pinion ,gear drive/Taiwan |
Z movement |
Ball screw drive /Germany |
Repeat positioning accuracy |
0.05mm |
Resolution ratio |
0.025mm |
Spindle rotating speed |
24000rpm/Min |
Drive motors |
stepper |
Adsorb power |
6kw |
Computer interface |
USB2.0 |
Collet |
ISO30-12.7mm,6mm,3.175mm |
Working Voltage |
AC380/50-60Hz 3-phase |
Controls |
DSP0501(Digital signal processor) |
Software |
Type3 software/France |
packing measurement |
2200*3200*1800 |
Equipments |
|
D
