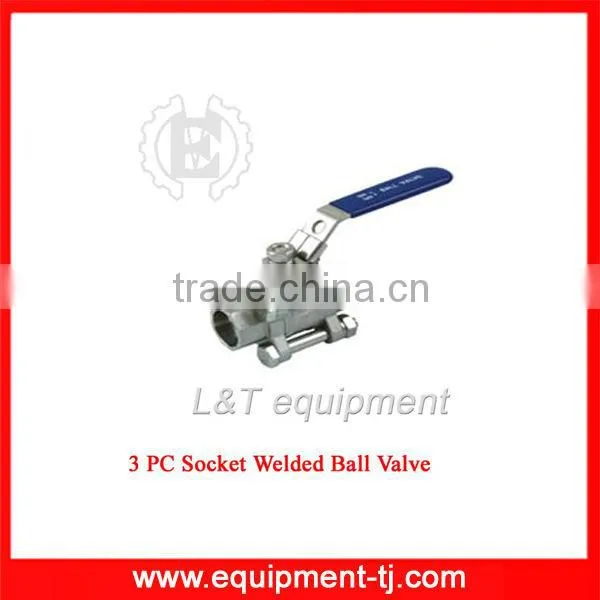

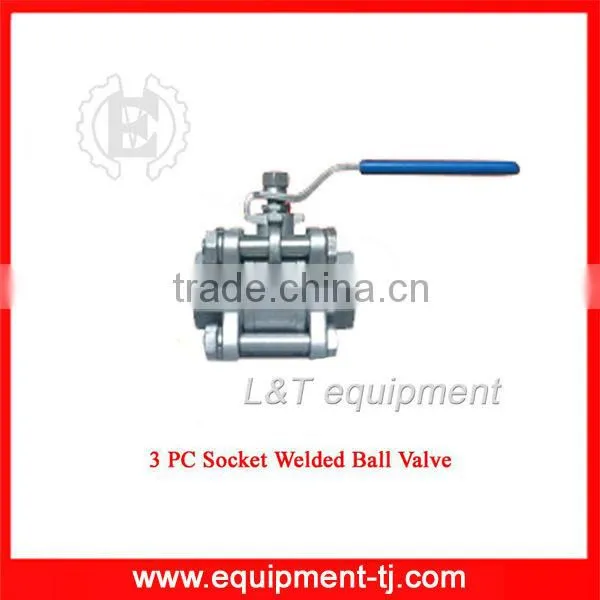

Help Center3 Pc Socket Weld Ball Valve
US$ 1 - 30
MOQ: 1000 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Medium Pressure
Power
Manual
Material
Stainless Steel
Temperature of Media
Medium Temperature
Media
Oil
Port Size
1/4-4"
Place of Origin
Tianjin, China
Model Number
3-Pc Socket Weld Ball Valve
Brand Name
LT
Specifications

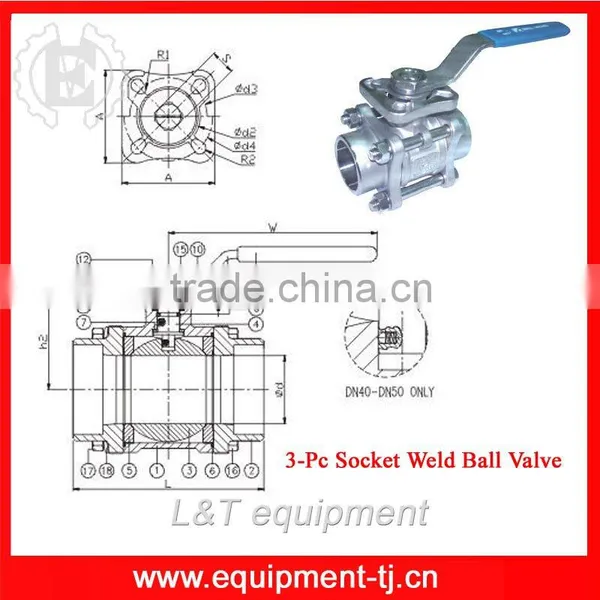

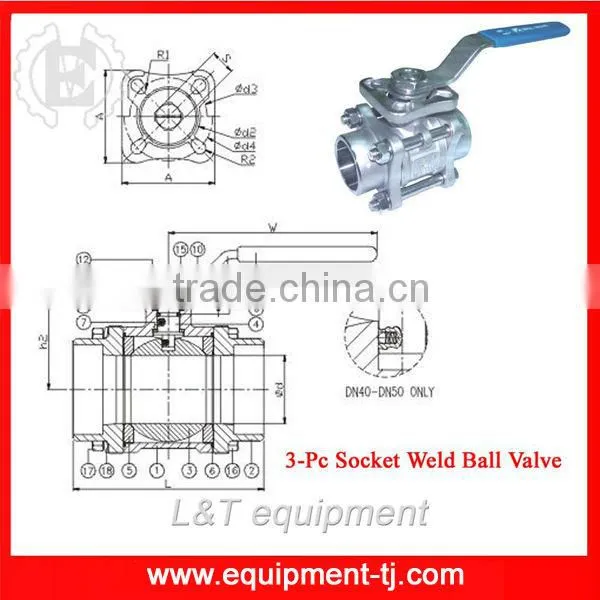

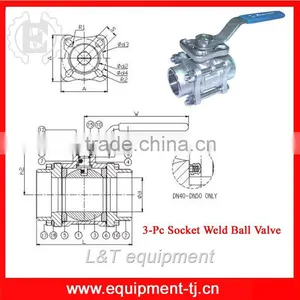

3 Pc Socket Weld Ball Valve3 Pc Socket Weld Ball Valve
Model:BSW-3F(FULL BORE 1000PSI)
Material List
Item |
Designation |
Material |
1 |
Plastic Cover |
Plastic |
2 |
Handle |
304 |
3 |
Gland Nut |
304 |
4 |
Stem Nut |
304 |
5 |
Thrust Washer |
304 |
6 |
Stem Packing |
PTFE |
7 |
Stem Seal |
PTFE |
8 |
Body Seal |
PTFE |
9 |
Cap |
CF8/CF8M |
10 |
Bolt |
304 |
11 |
Nut |
304 |
12 |
Thrust Washer |
304 |
13 |
Body |
CF8/CF8M |
14 |
Seat |
RPTFE |
15 |
Ball |
CF8M |
16 |
Stem |
304/316 |
17 |
Locking |
304 |
Dimension Table
Item/Size |
1/4" |
3/8" |
1/2" |
3/4" |
1" |
1 1/4" |
1 1/2" |
2" |
2 1/2" |
3" |
4" |
d |
12.5 |
12.5 |
15 |
20 |
25 |
32 |
38 |
50 |
65 |
76 |
94 |
D |
14.1 |
17.6 |
21.7 |
27.1 |
33.9 |
42.6 |
48.7 |
61.1 |
77 |
89.8 |
115.5 |
A |
10 |
10 |
10 |
13 |
13 |
13 |
13 |
16 |
16 |
16 |
19 |
L |
72 |
72 |
72 |
80 |
85 |
105 |
113 |
132 |
170 |
186 |
220 |
H |
48 |
48 |
50 |
52 |
65 |
70 |
85 |
93 |
116 |
125 |
180 |
W |
105 |
105 |
105 |
126 |
144 |
144 |
189 |
189 |
224 |
224 |
251 |
