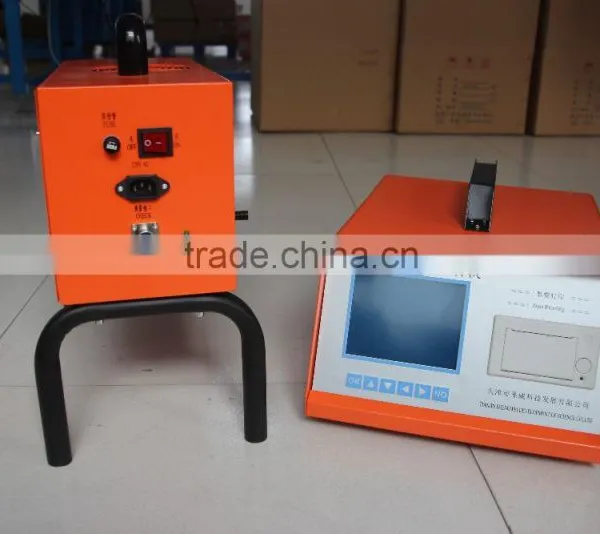

Cheap Sophisticated Exhaust Gas Analyzer Price
- Xingang of Tianjin China
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Tianjin, China | Brand Name | ME | |
| Model Number | LT-PD |
Weight: 15Kg Dimension: 610*500*330mm Packed In cartons
Product Description
1. Functional feature
1). Used to measure the concentration of HC, CO, CO2, O2, NO in the Automobile Exhaust Gas.
2). Two kinds of test function: General and Two-speed idle
3). Full English Menu Operation
4). LCD (liquid crystal) screen displays
5). Auto-zeroing
6). Automatic calculation and show the air-fuel ratio λ
7). Equipped with RS232 digital serial communication interface to facilitate networking
8). Optional function: rotate speed and oil temperature measurement
9). Equipped with functions of Plate number and time display
10). Can store and search 500 groups of data, built-in printer
11). Measurable with liquefied gas (LG), liquefied natural gas (LNG) and gasoline and other alternative fuel vehicles.
2. The main technical parameters
| Instrument Precision | |||
| Measurement Range | Indicated Error | ||
| Absolute Error | Relative error | ||
| CO | 0~10×10-2 (%)vol | ±0.06×10-2(%)vol | ±5% |
| CO2 | 0~20×10-2 (%)vol | ±0.5×10-2(%)vol | ±5% |
| HC | 0~10000×10-6 (ppm)vol | ±12×10-6 vol | ±5% |
| O2 | 0~25×10-2 (%)vol | ±0.1×10-2(%)vol | ±5% |
| NO | 0~40000×10-6 (ppm)vol | ±25×10-6 vol | ±4% |
| Other Sepcifications | |
| Response Times: | CO, HC, CO2≤ 10S |
| NO, O2≤ 15S | |
| Power: | 220V / 50Hz (can be customized) |
| Preheating Time: | 10min (3 min. warm-up for fast measurement) |
| Display Method: | LCD large screen display |
| Gross Weight: | 15Kg |
| Packing Size: | 610*500*330mm |
| Temperature | -5~40 centigrade |
| Humidity | no more than 85% |
| Atmospheric Pressure | 86~106kPa |
| Packing List | ||
| Item | Description | Qty |
| 1 | SV-5Q Automobile Exhaust Gas Analyzer | 1 |
| 2 | Standard Gas(if ship by air, will not be included) | 2 |
| 3 | Protective Tube | 2 |
| 4 | Sampling Handle | 1 |
| 5 | Probe Tube | 1 |
| 6 | Operation Instruction | 1 |
| 7 | Calibration Certificate | 1 |
| 8 | Filter Paper | 1 |
| 9 | 220V power line | 1 |
| 10 | Front Filter | 8 |
| 11 | After-filter Tip | 10 |
| 12 | Tail Pipe (1m) | 1 |
| 13 | Print Paper | 1 |
| 14 | Specialized Spanner | 1 |
| 15 | Network Tie-in | 1 |
| 16 | Pump Cover | 2 |
| 17 | Filter Element For Oil-water Separator | 2 |
| 18 | PC Software and Operation video | 1 |
| 19 | Oil temperature Tester ( Free) | 1 |
| 20 | RPM Tester (Free) | 1 |
