Telephone Cable

Name: Telephone Cable
Brand: runxiang
SKU: 105886971
Availability: InStock

US$ 0.07 - 0.12 MOQ: 500 Meters

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

runxiang

Model Number:

HYY

Shenzhen Runxiang Telecommunication Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name runxiang

Model Number HYY

Specifications

1.Telephone cable
2.HDPE insulation
3.LDPE out jacket
4.Outdoor aaplication

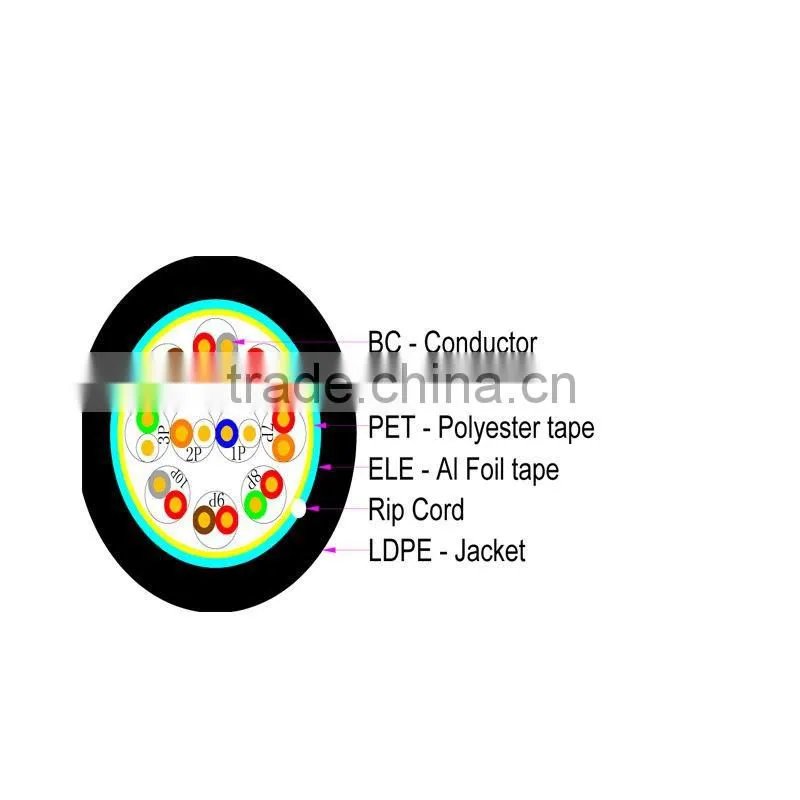

The cross section of HYY communication cable

feature

the advantage :
conductor	solid &stranded soft circle twistesd copper wire
pairs	cabling can meet the defense requirement
jacket	uset hte black PVC
standard	YD/F322,GB/T13849,IEC708-1

the specifiacation of the communication cable HYY

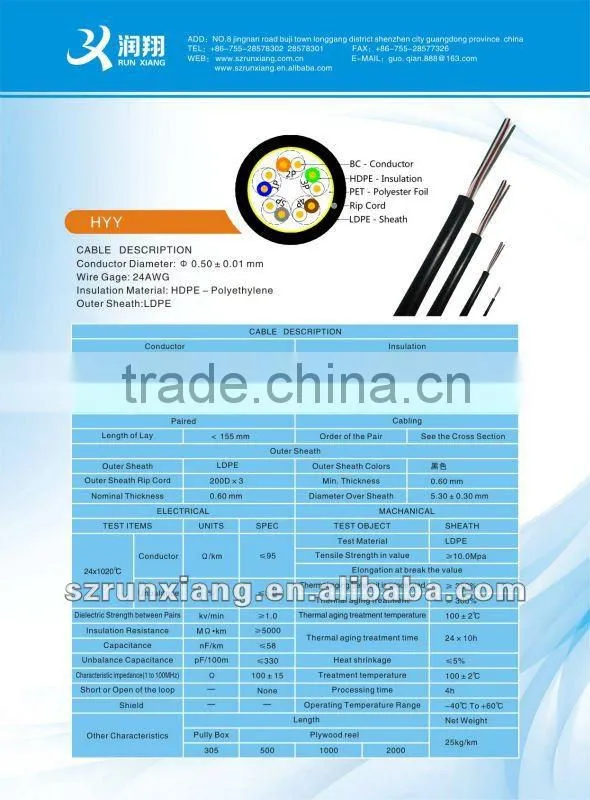

HYY communication cable specification
conductor			Insulation
pairs	10P		material	HDPE -High density polyethylene
conductors	20 root		Diamter	Φ0.86+/-0.02mm
Wire Gage	24AWG		Polyester Tape :PET-Polyester Tape Wrapping
stranding	solid		Twisted pairs Length			≤155mm
material	BC-bare copper		pairs color code
Diamter	Φ0.5+/-0.01mm		see the <<pair color code chart>>
Jacket			packing
material	LDPE		cable Net Weight		88Kg/km
color	black		product Length		500m/Wooden Drum
Rip Cord	500D*3		1000m/Wooden Drum
Nominal thickness		Φ1.40+/-0.05mm	3000m/Wooden Drum
Diamter	Φ9.5+/-0.50mm		Operationg Temperature			below 5°C
maketing	per customer request		Rated Voltage:30V

HYY communication cable specification
conductor			Insulation
pairs	10P		material	HDPE -High density polyethylene
conductors	20 root		Diamter	Φ0.86+/-0.02mm
Wire Gage	24AWG		Polyester Tape :PET-Polyester Tape Wrapping
stranding	solid		Twisted pairs Length			≤155mm
material	BC-bare copper		pairs color code
Diamter	Φ0.5+/-0.01mm		see the <<pair color code chart>>
Jacket			packing
material	LDPE		cable Net Weight		88Kg/km
color	black		product Length		500m/Wooden Drum
Rip Cord	500D*3		1000m/Wooden Drum
Nominal thickness		Φ1.40+/-0.05mm	3000m/Wooden Drum
Diamter	Φ9.5+/-0.50mm		Operationg Temperature			below 5°C
maketing	per customer request		Rated Voltage:30V

Electrical characteristics
Test Item	Units	Spec
ndutor DC Resistance 20°C	Ω/KM	≥95
2.Unbalance of pair DC resistance	%	≤5.0
3.Dielectric Strength between pairs	Kv/Min	≥1.0
4.Insulation Resistance	MΩ.km	≥10×103
5.Working capacitance	nF/Km	≤58
6.Short or Open Of the Loop	-	None
7.shield continuity	-	Continuity
Polyethylene Jacket Mechanical Characteristics
Test Item	Units	Spec
1.Tensile strength ,in value	MPa	≥10.0
2.Elongation at break,the value
Thermal aging before it's processed	%	≥350
Thermal aging treatment	%	≥300
Thermal aging treatment temperature	°C	100+/-2
Thermal aging treatment time	h	24*10
3.Heat Shrinkage	%	≤5.0
Treatment temperature	°C	100+/-2
processing time	h	4
4.Operating Temperature Range	°C	–40To+60
