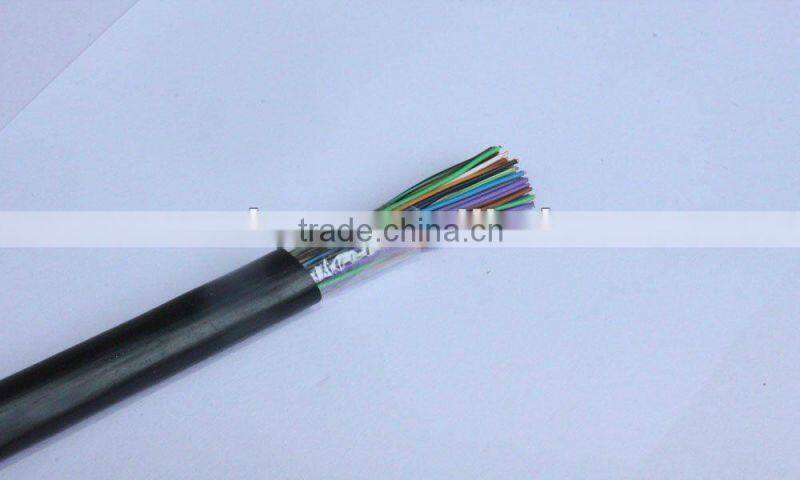

HYY Communication Cable 100 Pairs for Outdoor
US$ 0.07 - 0.12
MOQ: 10000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
szrunxiang
Model Number:
RX-HYY Telephone Cable
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HYY Outdoor Communication Telephone Cable WireUS$ 0.15 - 0.21MOQ: 10000 Meters -
Belden HYY 50 Pair Telephone CableUS$ 1 - 3.1MOQ: 500 Meters
-
Telecommunication Outdoor 5 Pair Telephone Cable HYYUS$ 1 - 3.1MOQ: 500 Meters
-
HYA Outdoor Communication Telephone CableUS$ 2 - 3.1MOQ: 1000 Meters
-
RX HYA 5Pairs Outdoor Cable-Telecommunication CableUS$ 0.52 - 3.1MOQ: 1000 Meters
Place of Origin
Guangdong, China
Brand Name
szrunxiang
Model Number
RX-HYY Telephone Cable
Specifications
munication cable2.HDPE insulation
3.LDPE out jacket
4.Use in door
5.Delivery in time
HYY — Outdoor Telephone Cable UTP 25 Pairs 24AWG LDPE

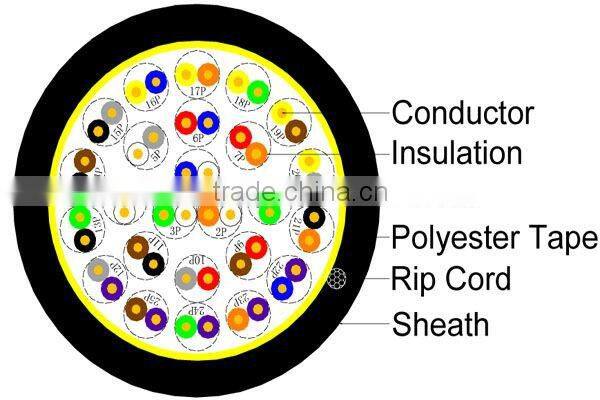

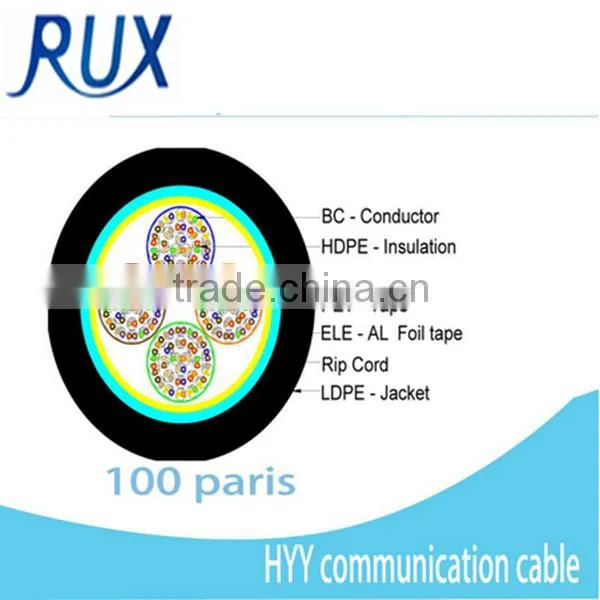

SECTION DRAWING
SPECIFICATION
| HYY communication cable specification | |||||||
| conductor | Insulation | ||||||
| pairs | 50P | material | HDPE -High density polyethylene | ||||
| conductors | 100 root | Diamter | Φ0.86+/-0.02mm | ||||
| Wire Gage | 24AWG | Polyester Tape :PET-Polyester Tape Wrapping | |||||
| stranding | solid | Twisted pairs Length | ≤155mm | ||||
| material | BC-bare copper | pairs color code | |||||
| Diamter | Φ0.5+/-0.01mm | see the <<pair color code chart>> | |||||
| Jacket | packing | ||||||
| material | LDPE | cable Net Weight | 300Kg/km | ||||
| color | black | product Length | 300m/Wooden Drum | ||||
| Rip Cord | 500D*3 | 500m/Wooden Drum | |||||
| Nominal thickness | 1.5+/-0.05mm | 1000m/Wooden Drum | |||||
| Diamter | Φ16.0+/-0.05mm | Operationg Temperature | below 5°C | ||||
| maketing | per customer request | Rated Voltage:30V | |||||
| the advantage : | |||||||
| conductor | solid &stranded soft circle twistesd copper wire | ||||||
| pairs | cabling can meet the defense requirement | ||||||
| jacket | uset hte black PVC | ||||||
| standard | YD/F322,GB/T13849,IEC708-1 | ||||||
CABLE DESCRIPTION | |||
Conductor | Insulation | ||
Number of Pairs | 25 | Insulation Material | HDPE - Polyethylene |
Total Number of Conductors | 100 | Minimum Thickness | 0.15 mm |
Wire Gage | 24AWG | Diameter | Φ 0.85±0.02 mm |
Diameter | Φ 0.50±0.01 mm | Pair Color Code | Cable Color Cord |
Paired | Cabling | ||
Length of Lay | <155 mm | Order of the Pair | See the Cross Section |
Outer Sheath | |||
Outer Sheath | LDPE - Polyethylene | Outer Sheath Colors | Black |
Outer Sheath Rip Cord | 200D×3 | Min. Thickness | 0.80 mm |
Nominal Thickness | 1.00±0.05 mm | Diameter Over Sheath | Φ10.5±0.50 mm |
