Help CenterPipe Freeze Protective Self-regulating Water Proof Floor Heating Cable
Related Products
-
Iceguard Pre-terminated Electric Heating Resistance CableNegotiableMOQ: 10000 Meters -
NEW Self -regulation Floor Heating CableUS$ 0.25 - 0.35MOQ: 10000 Meters
-
18w Red Pipe Outdoor Underfloor Heating Silicon Rubber Cable Quality ChoiceUS$ 0.48 - 0.76MOQ: 30000 Meters
-
1 Core Selfregulated Solar Heating Tracing CableUS$ 0.1 - 1MOQ: 500 Meters
-
1 Core Selfregulated Undetgroung Infrared Raychem Heating Tracing CableUS$ 0.1 - 1MOQ: 500 Meters
Specifications
1,Energy saving2,Low charges of installation and working
3,Easy maintaining
4,Automated management
5,No pollution

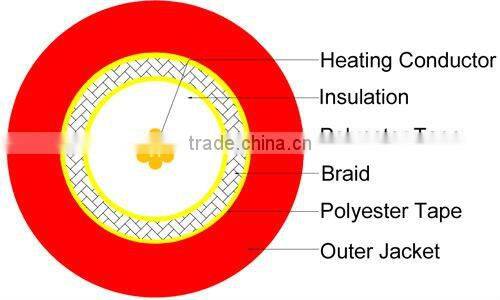

the cross section of the items

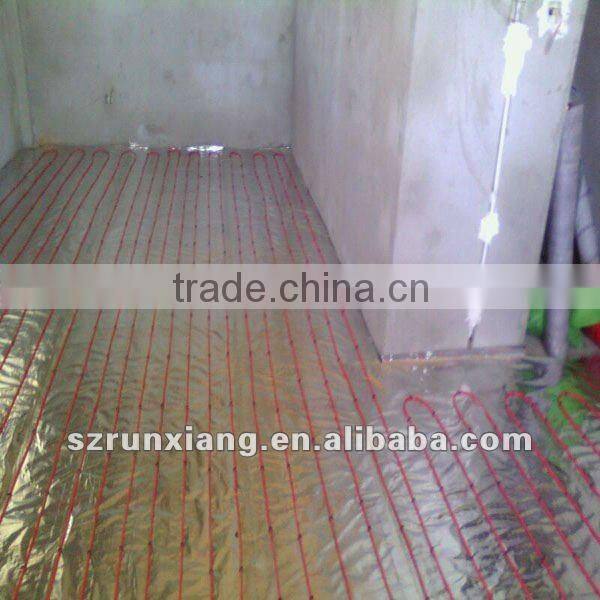

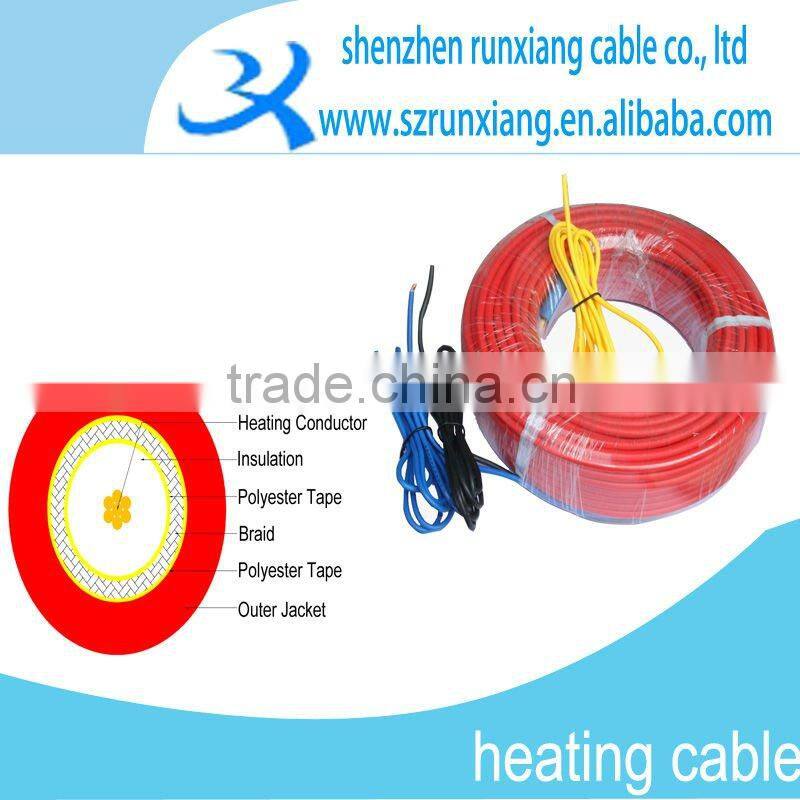

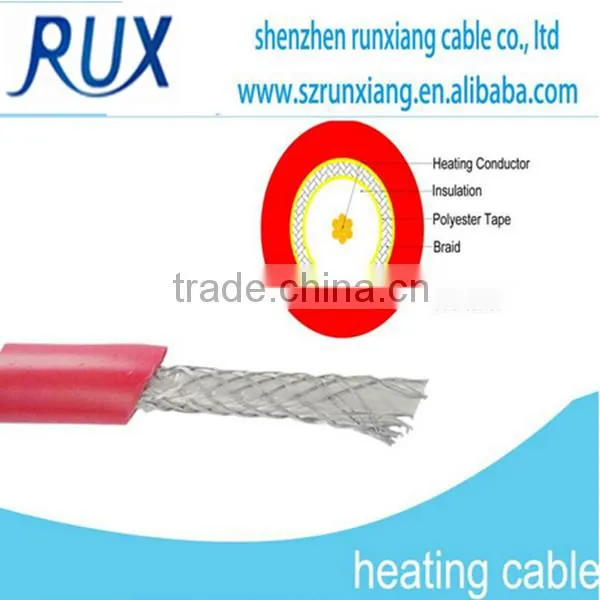

the pic of the items :
HEATING CABLE SELF-REGULATING
Technical parameters
1,temperature range: Max maintenance temperature 65°C.
Max surface temperature 70°C±5°C.
Max bearing temperature 105°C.
2,Installation temperature:Min -60°C.
3,Thermo stability:Recycle 300 time from the temperature 10°C to 99°C,the heating value can keep 90% at least.
4,Bend radius:room temperature 20°C,the value is 25.4mm.room temperature −30°C,the value is 35.0mm.
5,Insulation resistance:when the length of heating cable is 100m,ambient temperature is 75°C,tested by 2500V DC tramegger 1 minute,the value of insulation resistance is 1200MΩ.
SPECIFICATION
Product Type |
Rated power |
Standard length |
Nominal resistance |
Resistance per meter |
RXRL/1R300/18 |
300 |
16.67 |
161.33 |
9.86 |
RXRL/1R500/18 |
500 |
27.78 |
96.8 |
3.485 |
RXRL/1R550/18 |
550 |
30.56 |
88 |
2.88 |
RXRL/1R700/18 |
700 |
38.89 |
69.14 |
1.778 |
RXRL/1R800/18 |
800 |
44.44 |
60.5 |
1.361 |
RXRL/1R1000/18 |
1000 |
55.56 |
48.4 |
0.871 |
RXRL/1R1100/18 |
1100 |
61.11 |
44 |
0.72 |
RXRL/1R1200/18 |
1200 |
66.67 |
40.33 |
0.605 |
RXRL/1R1300/18 |
1300 |
72.22 |
37.27 |
0.516 |

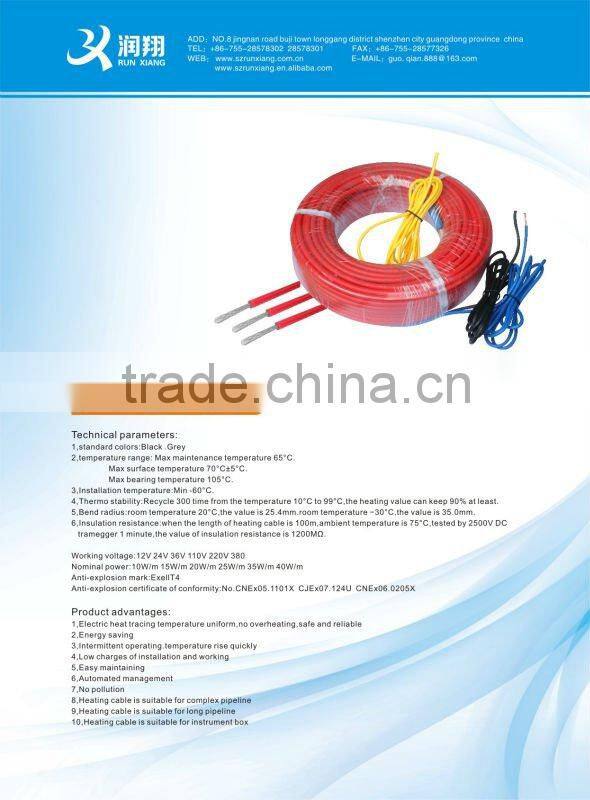

the specification of the items
