Home > Products > heating cable > Iceguard Pre-terminated Pipe Freeze Silicone Rubber Defrosting Heating Cable

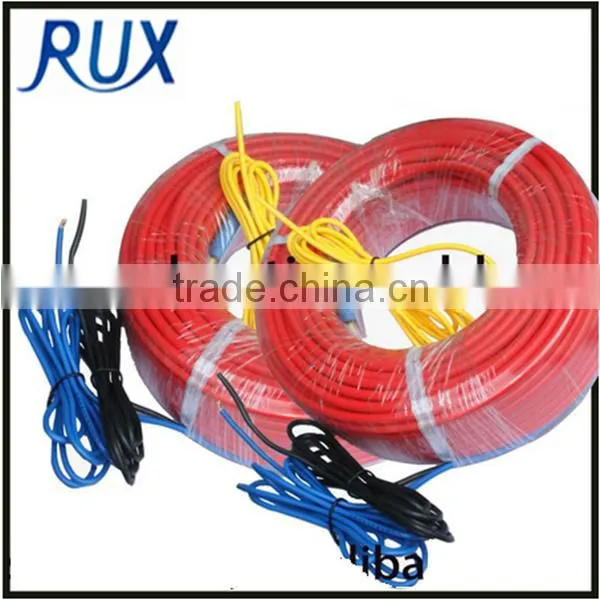

Iceguard Pre-terminated Pipe Freeze Silicone Rubber Defrosting Heating Cable

FOB Price

Negotiable / Meter

10000 Meters(Min. Order)

Port SHENZHEN
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	szrunxiang
Model Number	RX-Self-regulating heating cable	Conductor Material	Other, Alloy resistance wire
Insulation Material	Rubber	Jacket	PVC
Application	pipe/underfloor

Product Description

Specifications

1,Energy saving
2,Low charges of installation and working
3,Easy maintaining
4,Automated management
5,No pollution

the cross section of the item

floor silicone rubber defrosting Heating Cable

the product describle

1,Energy saving
2,Low charges of installation and working
3,Easy maintaining
4,Automated management
5,No pollution

the specification of the item

the describletion of the items

SINGLE HEATING CABLE SPECIFICATION MODEL(220V 18W/M)
Product Type	Rated power (W/ROOT)	Rated voltage (V)	Linear power (W/M)	Standard length (M/ROOT)	Nominal resistance (Ω/ROOT)
RXRL/1R300/18	300	200	18	16.67	161.33
RXRL/1R500/18	500	200	18	27.78	96.8
RXRL/1R550/18	550	200	18	30.56	88
RXRL/1R700/18	700	200	18	38.89	69.14
RXRL/1R800/18	800	200	18	44.44	60.5
RXRL/1R1000/18	1000	200	18	55.56	48.4
RXRL/1R1100/18	1100	200	18	61.11	44
RXRL/1R1200/18	1200	200	18	66.67	40.33
RXRL/1R1300/18	1300	200	18	72.22	37.27
RXRL/1R1400/18	1400	200	18	77.78	34.57
RXRL/1R1500/18	1500	200	18	83.33	32.27
RXRL/1R1800/18	1800	200	18	100	26.89
RXRL/1R2100/18	2100	200	18	116.67	23.05
RXRL/1R2300/18	2300	200	18	127.78	21.04
RXRL/1R2500/18	2500	200	18	138.89	19.36
RXRL/1R2800/18	2800	200	18	155.56	17.29
RXRL/1R3000/18	3000	200	18	166.67	16013
RXRL/1R150/18	150	200	30	5	322.67

HEATING CABLE SELF-REGULATING

Technical parameters

1,temperature range: Max maintenance temperature 65°C.

Max surface temperature 70°C±5°C.

Max bearing temperature 105°C.

2,Installation temperature:Min -60°C.

3,Thermo stability:Recycle 300 time from the temperature 10°C to 99°C,the heating value can keep 90% at least.

4,Bend radius:room temperature 20°C,the value is 25.4mm.room temperature −30°C,the value is 35.0mm.

5,Insulation resistance:when the length of heating cable is 100m,ambient temperature is 75°C,tested by 2500V DC tramegger 1 minute,the value of insulation resistance is 1200MΩ.

SPECIFICATION

Product Type	Rated power (W/ROOT)	Standard length (M/ROOT)	Nominal resistance (Ω/ROOT)	Resistance per meter (Ω/M)
RXRL/1R300/18	300	16.67	161.33	9.86
RXRL/1R500/18	500	27.78	96.8	3.485
RXRL/1R550/18	550	30.56	88	2.88
RXRL/1R700/18	700	38.89	69.14	1.778
RXRL/1R800/18	800	44.44	60.5	1.361
RXRL/1R1000/18	1000	55.56	48.4	0.871
RXRL/1R1100/18	1100	61.11	44	0.72
RXRL/1R1200/18	1200	66.67	40.33	0.605
RXRL/1R1300/18	1300	72.22	37.27	0.516
