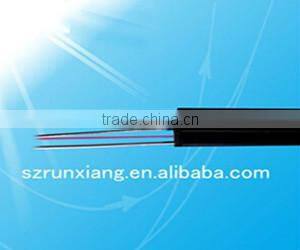

2 Core FTTH Drop Cable Multimode FTTH Outdoor
The introduction of fiber optic access network with disc (indoor wiring ) is the optical communication unit ( fiber ) in the center , placed on both sides of two parallel non-metallic strength member (FRP), finally, black or other colored extruded polyethylene vinyl chloride (PVC) or halogen material (PVC) jacket made .

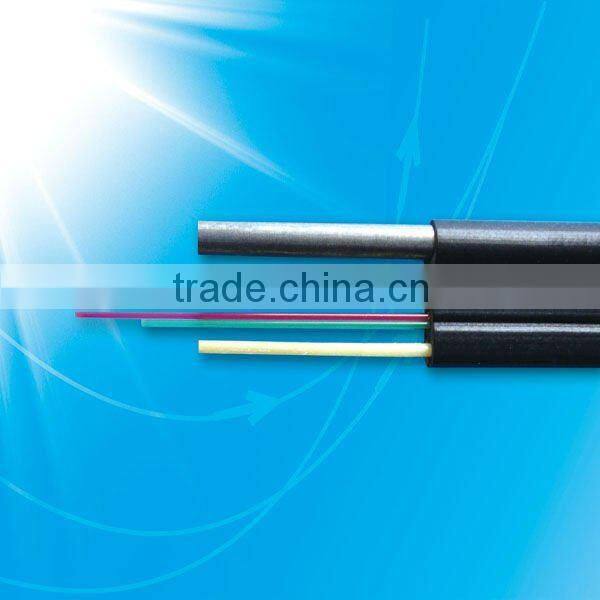

Product Structure
Non-metallic strenghen member
- Total number of root:2 Root
- Material:FRP-Glass Fiber Reinforced Plastic Rods
- Diameter:0.50 ±0.10mm
Outer Sheath:
- Material:PVC
- Color:Black
- Diameter(1,2 core):2.0H ×5.1W ±0.1mm
- Diameter(4 core):2.0H ×6.1W ±0.1mm
- Marking:Depends on the Customer Request
FTTH drop cable charateristics:
| Optical | Jacket Machine | |||||
| Test items | Units | Spec | Test items | Units | Spec | |
|
Single-mode fiber cutoff wavelength |
λc/nm | ≤1250 | Test material | - | pvc | |
| λcc/nm | ≤1260 | |||||
|
Maximum Attenuation@ |
1310nm | dB/km | ≤0.40 | Tensile Strength | Elongation at break | |
| 1550nm | dB/km | ≤0.30 | Thermal aging treatment | |||
|
Dispersion Coefficient |
1288-1399nm | ps/nm·km | ¦D¦≤3.5 | Before | Mpa/ % | ≥12.5 ≥150 |
| 1271-1360nm | ps/nm·km | ¦D¦ ≤5.3 | After | % | 20 ≥125 | |
| 1550nm | ps/nm·km | ¦D ¦≤18 | Time | h | 24 ×10 | |
| Zero dispersion Wavelength | nm | 1300-1322 | Temperature | °C | 100 ±2 | |
| Zero dispersion slope | ps/nm²km | ≤0.092 | Change rate after heating aging | % | 20 | |
| Light source continuity | - | continuous | ||||
| Others characteristics | Cable Net weight | 1C | 25kg/km | 2C | 25kg/km | |
| Product Length | m/Plywood Drum | 500 | 1000 | 2000 | ||
Fiber color code:
| NO | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| NO | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Purple | Pink | Aqua |
Product Features:
- cable diameter is small, light weight , low cost, low construction cost
- using cold welding technology , fast, flexible and efficient
- cable has a high resistance to crushing force and tensile strength , self-supporting structure 50 meters to meet the following design flying pull
- fiber used in line with ITU-T G657A technical requirements for anti-bending optical fiber , the minimum bend radius of 15mm
| Type | Fiber Core |
Outer Diameter (mm) |
Weight kg/km |
Minimum Bend Radius (mm) |
Allow Tension(N) |
Transmission Loss dB/km |
|||
| dynamic | static | short term | long term | 1310nm | 1550nm | ||||
| GJYXFCV | 1 | 2.0×5.2 | 7 | 50 | 30 | 660 | 400 | ≤0.40 | ≤0.40 |
| GJYXFCV | 2 | 2.0×5.2 | 7 | 50 | 30 | 660 | 400 | ≤0.40 | ≤0.40 |
| GJYXFCV | 4 | 2.0×6.2 | 8 | 50 | 30 | 660 | 400 | ≤0.40 | ≤0.40 |
Related Products
The cables will be shipped on wooden drums.

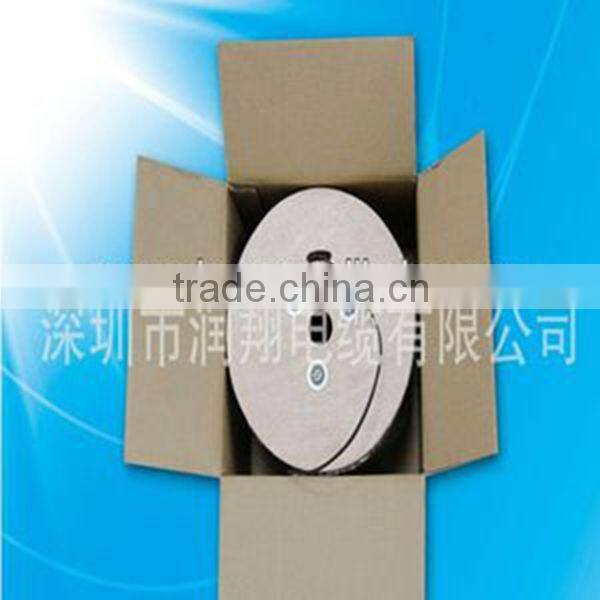

Inner packing: rolled by wooden Drum(1000m/Plywood Drum is 250*110*190mm)

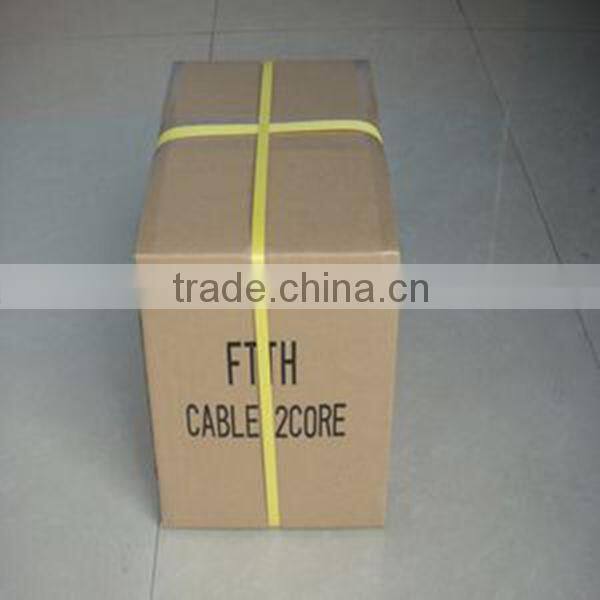

Out packing: one drum in a carton box
-We are professional manufacture of optical fiber cables in China.
-OEM is accepted
-The cable size and material are customized,and your own logo or design are welcome
-We'll reply you in 12 hours after you send enquiry to us
- 100% product quality protection.
- 100% on-time shipment protection.
- 100% payment protection for your covered amount.
Certification
Company Profile
Production Workshop
Guangdong,China(mainland) RUX is a leading global manufacturer of fiber optical cable.We have the most advanced reserch and development team, first-class production technology.Relying on good prestige , creditable quality,perfect service and reasonable price ,Hit the United States ,India,South Korea,Brazil,etc.
You can inquiry us by send message here, or contact:
James Sun, Skype: jamessun01, cell phone:+86 15939142043
.......................................................................................................................................................
Website:
Add: Floor 1-2 of Building D, No.13 Longshan Industrial Zone, Nanling Village, Nanwan Avenue, Longgang District, Shenzhen City, Guangdong Province, China
Q1: How is quality for your fiber optic cable?
A1: Firstly,we use top quality raw material(best fiber optic and eco-friendly sheath material etc),Then surveyor will do the test,such as raw material quality test,fiber optic attenuation test and high or low temperature test etc.
Q2: How many years experience in producing?
A2: More than 15 years,and our engineers have more than 20 years product experience.
Q3: Can provide sample to us?
A3: Yes,sample below 30m can be provided freely,but you need pay freight cost.
Q4: Is there cheap shipping cost to import to our country?
A4: For small order,express will be best.And for bulk order,sea ship way is best but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q5: How to do if don't need your company brand name?
A5: We have own factory,OEM is available;If need other brand name,it is ok pls give us letter of authorization.
