Ftth Armoured Fiber Optic Patch Cable

US$ 0.054 - 0.115 MOQ: 5 Kilometers

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

RUX

Model Number:

ftth fiber optical cable

Contact Supplier Request Quote Chat Now

Shenzhen Runxiang Telecommunication Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name RUX

Model Number ftth fiber optical cable

Type Cat 6a

Number of Conductors 2

ftth armoured fiber optic patch cable

Product Description

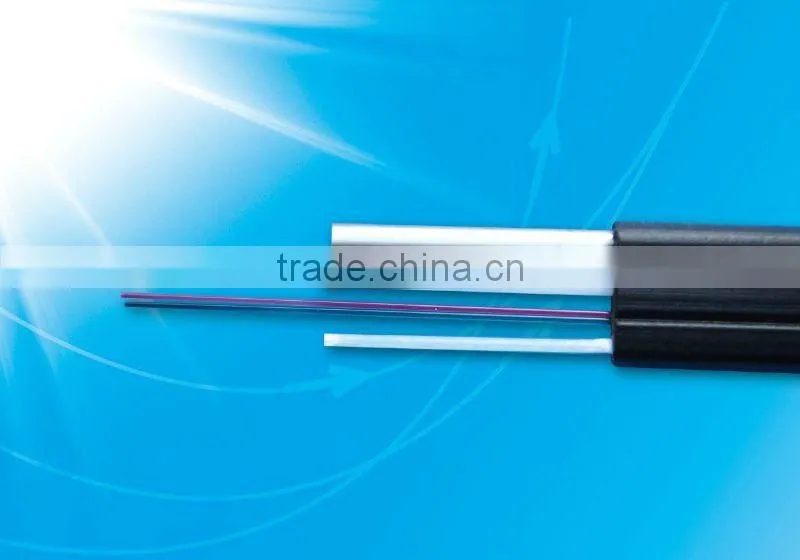

The φ250μm colored coating optical fibers are positioned in the centre. The parallel fiber reinforced plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.

Product Structure

Non-metallic strenghen member

Total number of root:2 Root

Material:FRP-Glass Fiber Reinforced Plastic Rods

Diameter:0.50 ±0.10mm

Strengthening Messenger Wire:

Total of number of root:1 Root

Material:Phosphatized steel wire

Diameter:1.20 ±0.05mm

Application

-Directly installed into houses aerial acss installation,suitable for condominium office installation

-Access network,fiber to the home,connects the communication line from the LAN tothe user.

-End users use directly cabling.

-Support the internet,CATV and telephone, support more network increase service in future,easily reach 100M

Code Code

Technical parameters

Singlemode Fiber size parameters		Metallic Strength Member
Fiber Type	ITU-T G.657A	Total the Number of Root	2
Fiber Specification	62.5/125/245 μm	Material	phosphating steel wire
The Number of Fibers	2 Root	Diameters	0.35+/-0.02mm
Core Diameters	62.2+/-2.5μm	Enhanced Component Hanging Wire
Core Non-circularity	≤5%	Total the Number of Root	1
Mode field Diameters	8.6~9.0+/-0.4μm	Material	phosphating steel wire
Clad Diameter	125.0+/-0.7μm	Diameters	1.20+/-0.05mm
Clad Non-circularity	≤1.0%	Thickness	0.45+/-0.05mm
Core/Clad Concentricity Error	≤0.5μm	Outer jacket
Coating Diameters	245+/-10μm	Material	LSZH
Clad/Coating Concentri city Error	≤12.5μm	Color	black & white

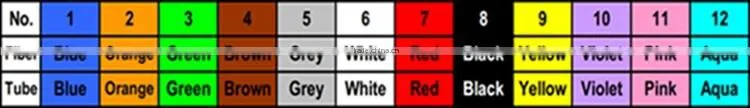

Color Code	blue/orange	Diameters	2.0×5.1+/-0.02mm

Packaging & Shipping

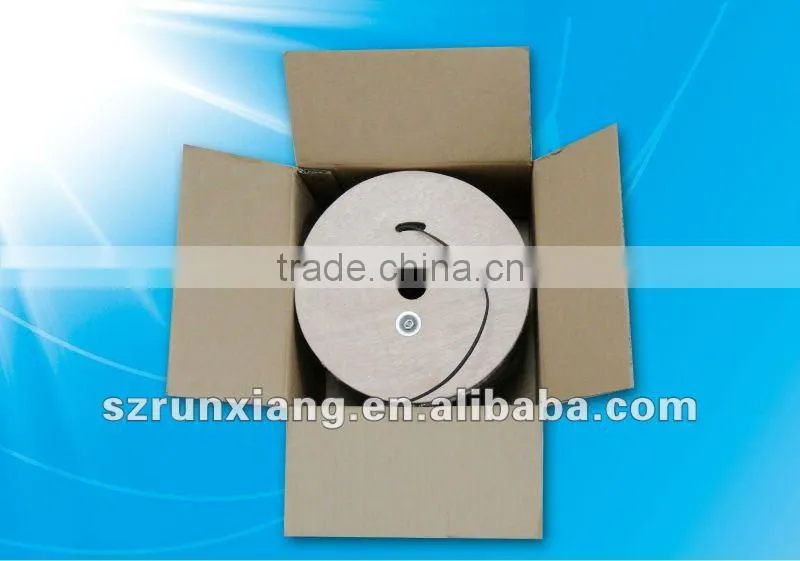

The cables will be shipped on wooden drums.

Inner packing: rolled by wooden Drum(1000m/Plywood Drum is 250*110*190mm)

Out packing: one drum in a carton box

Our Services

1.We are professional manufacture of optical fiber cables in China.

2.OEM is accepted.

3.The cable size and material are customized,and your own logo or design are welcome.

4.We'll reply you in 12 hours after you send enquiry to us

FAQ

Q1: How is quality for your fiber optic cable?

A1: Firstly,we use top quality raw material(best fiber optic and eco-friendly sheath material etc),Then surveyor will do the test,such as raw material quality test,fiber optic attenuation test and high or low temperature test etc.

Q2: How many years experience in producing?

A2: More than 15 years,and our engineers have more than 20 years product experience.

Q3: Can provide sample to us?

A3: Yes,sample below 30m can be provided freely,but you need pay freight cost.

Q4: Is there cheap shipping cost to import to our country?

A4: For small order,express will be best.And for bulk order,sea ship way is best but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q5: How to do if don't need your company brand name?

A5: We have own factory,OEM is available;If need other brand name,it is ok pls give us letter of authorization.
