24AWG Cat3 lan cable shenzhen utp networking cable
- 5000000 Meter / Meters per Month
- shenzhen
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | runxiang | Model Number: | UTP cat3 |
Product Description
Specifications
Cat3 networking cable1.PVC outer sheath
2.100 pair cable
3.ISO 9001-2000 certification
4.OEM is ok

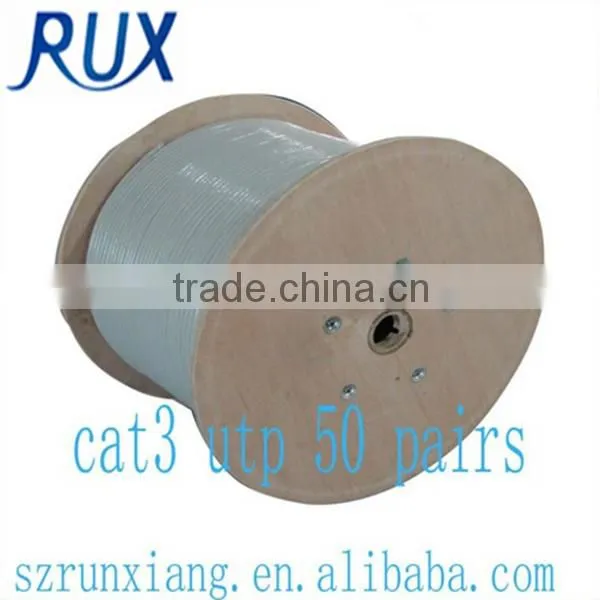

24AWG Cat3 lan cable shenzhen utp networking cable
The cross section of networking cable
Feature
1.small diameter,can save the space
2.light weight ,easy to curve ,flexible to splice
3.can reduce the harass
4.have the good inflaming retarding
5.Siut for the structure complex splice
we handle this items for many years and can meet your reguirement
Electrical Characteristics | ||||||
Test Item | Units | Spec | ||||
Conductor DC Resistance 20°C | Ω/100m | ≤9.5 | ||||
Unbalance of Pair DC Resistance 20°C | % | ≤2.5 | ||||
Dielectric Strength between Pairs | kv/min | ≥1.0 | ||||
Insulation Resistance | MΩ·km | ≥5000 | ||||
Capacitance | nF/100m | ≤6.6 | ||||
Unbalance Capacitance | pF/100m | ≤330 | ||||
Characteristic impedance(1 to 100MHz) | Ω | 100±15 | ||||
Short or Open of the loop | — | None | ||||
Shield | — | — | ||||
Pair Color Code Chart | Other Characteristics | |||||
pair NO | color | net weight | 16 kg/km | |||
1 | a | White | Length | 305m Pully Box | ||
b | Blue | 500m Pully Box | ||||
2 | a | White | 1000m Plywood | |||
b | Orange | 2000m Plywood | ||||
Mechanical Characteristics | ||||||
Test Object | Sheath | |||||
Test Material | PVC | |||||
Before Tensile Strength(Mpa) | ≥13.5 | |||||
Aging Elongation(%) | ≥150 | |||||
Aging Condition(°C×hrs) | 100×168 | |||||
Before Tensile Strength(Mpa) | ≥12.5 | |||||
Aging Elongation(%) | ≥125 | |||||
Cold Bend(-20±°C×4hrs) | No crack | |||||
Operating Temperature Range | -20°C To +75°C | |||||
Min.Bending Radius(Install) | 8×D | |||||
total name | INDOOR CAT 3 UTP SOLID LAN CABLE 16MHz 24AWG 2 PAIRS PVC | |||||
Part No. RX-L3.IN-UTP2-24-PVC |
Cable Description
Conductor
Number of Pair:100
Total Number of Conductor:200
Conductor Material:BC-Solide Bare Copper
Wire Gage:24awg
Elongation rate: ≥15%
Insulation
Insulation Material:HDPE-Polyethylene
Nom.Insulation Wall Thickness:0.18mm
Diameter over Insulation: φ0.86 ±0.02mm
Pair Color Code:Cable Color Cord
Paired
Length of Lay: <70mm
Outer Sheath
Outer Sheath:PVC-Polyvinyl Chloride
Outer Sheath Color:Per Customer Request
Outer Sheath Rip Cord:500D ×3
Nominal Thickness:1.2 ±0.05mm
Min.Thinckness:1.00mm
Diameter Over Sheath: φ20.0 ±1.00mm
Marking:Per Customer Request
Machanical Charateristics
Test Object:Sheath
Test Material:PVC
Before Tensile Strength(Mpa): ≥13.5
Aging Elongation(%): ≥150
Aging Condition( ℃ × hrs):100 ×168
Before Tensile Strength(Mpa): ≥12.5
Aging Elongation(%): ≥125
Cold Bend( - 20 ± ℃ × hrs):No crack
Operating Temperature Range: -20 ℃ -75 ℃
1.We are professional manufacture of optical fiber cables in China.
2.OEM is accepted.
3.The cable size and material are customized,and your own logo or design are welcome.
4.We'll reply you in 12 hours after you send enquiry to us
We have the ISO9000 ISO9002 and Sira certification
