2014 Newest 4 Pair 23awg Utp Cat 6 Cable Specification
US$ 0.2 - 0.35
MOQ: 5000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
runxiang
Model Number:
SZRX6U2301-cat6
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solide Bare Copper Conductor 8 Pair Cat5e Utp CableUS$ 0.2 - 0.35MOQ: 5000 Meters -
24AWG 2 Pairs Lan Cable Fluke Test D-link FTP Cat5eUS$ 0.25 - 0.31MOQ: 3000 Meters
-
16 Pairs Cat3 Networking Outdoor Utp Cable PriceUS$ 0.07 - 0.2MOQ: 5000 Meters
-
UTP Cat6 Cable ManufacturerUS$ 0.13 - 0.28MOQ: 5000 Meters
-
HOT Selling 26 Awg Ftp Cat5e Cable for 4 Pair NetworkUS$ 0.25 - 0.3MOQ: 100000 Meters
Place of Origin
Guangdong, China
Brand Name
runxiang
Model Number
SZRX6U2301-cat6
Number of Conductors
4
Specifications
utp cat 6 cable1.PVC sheath
2.High standrad ISO 9001-2000
3.Fast delivery
4.OEM is ok
2014 newest 4 pair 23awg utp cat 6 cable specification
Product Description
Feature
lid &stranded soft circle twisted copper wire
2.high -density polythene
3.rating temperatuer 75 degree
4.we can provide different colors and length
5.we can meet your requirements and welcome to vist to us

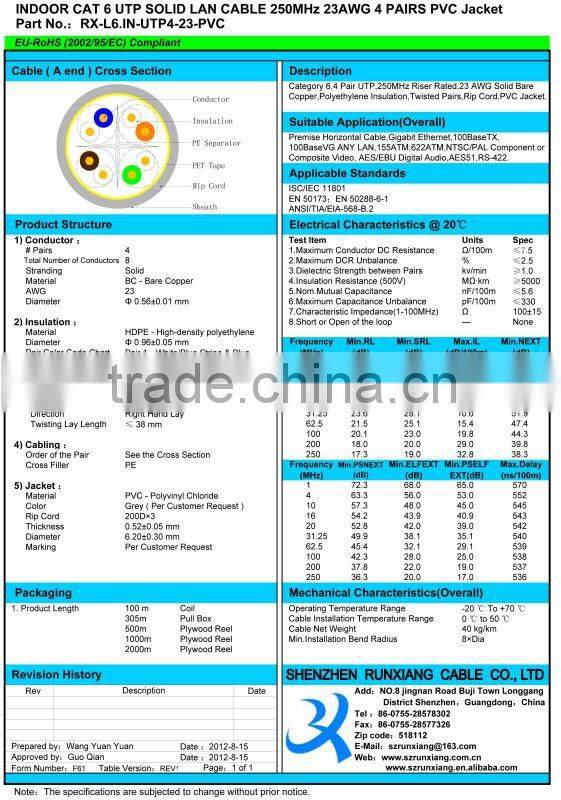

| UTP cat6 solid lan cable 23AWG | |||||||
| conductor | insulation | ||||||
| pairs | 4 | material : | HDPE-High-density polyethylene | ||||
| total number of the conductor | 8 | diameter | Φ0.96+/-0.05mm | ||||
| stranding | solid | pair color code chart | pairs 1:white /Blue stripe &blue pair2:whie /Orange stripe &orange pair3:whie /Green stripe &Green pair4:whie /Brown stripe &Brown | ||||
| material | BC-bare copper | ||||||
| AWG | 23 | ||||||
| Diameter | Φ0.56+/-0.01mm | ||||||
| paired | cabling | ||||||
| Direction | Right hand lay | order of the pair | see the cross section | ||||
| Twisting lay length | ≤38mm | cross filler | PE | ||||
| jacket | packing | ||||||
| material | PVC-polyvinyl chloride | product length | 100m | coil | |||
| color | Grey | 305m | pull box | ||||
| rip cord | 200D*3 | 500m | plywood reel | ||||
| thickness | 0.52+/-0.05mm | 1000m | plywood reel | ||||
| marking | 6.20+/-0.30mm | 2000m | plywood reel | ||||
| the detail information about the utp cat6 cable | ||||||
| Conductors: | 23AWG
| |||||
| Conductor No: | 0.58 mm rate 0.52-0.58 mm | |||||
| Insulation: | pvc/pe/lszh | |||||
| Color Code | orange/ white/ black/ blue | |||||
| Pair1: Blue- White/Blue | ||||||
| Pair2: Orange- White/Orange | ||||||
| Pair3: Green- White/Green | ||||||
| Pair4: Brown- White/Brown | ||||||
| Ripcord: | Under Jacket | |||||
| Jacket O.D: | 6.5+0.2 mm | |||||
| Pair quantity: | 4 | |||||
| remarks | OEM is ok | |||||

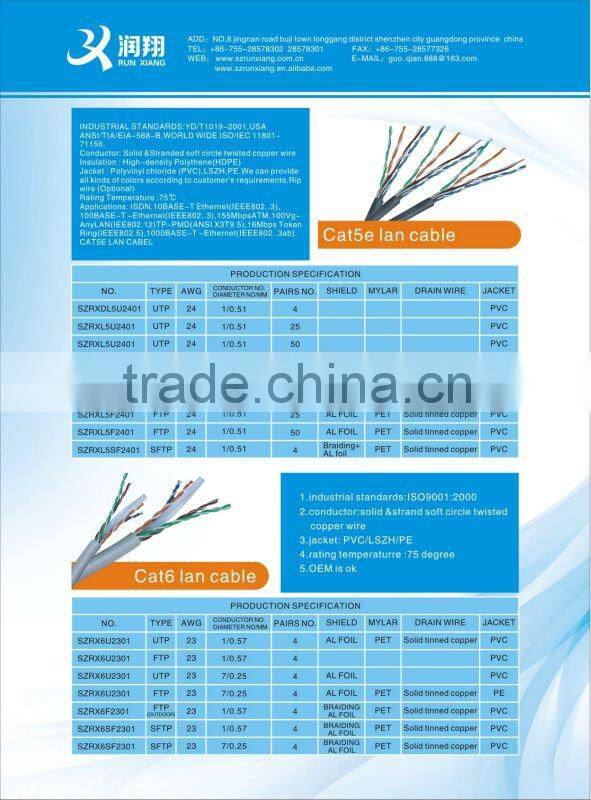

the other picture of the utp cat6 cable
