FTTH Hot melt plastic fiber optic connector

FOB Price

US$ 1.25 - 1.38 / Piece

3000 Pieces(Min. Order)

Port shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	runxiang
Model Number	SC-UPC Connector

Product Description

Specifications

1.fiber optic connectors
2.best price and delivery in time
3.OEM is OK
4.T/T,L/C is ok
5.ISO9000:9002 certification

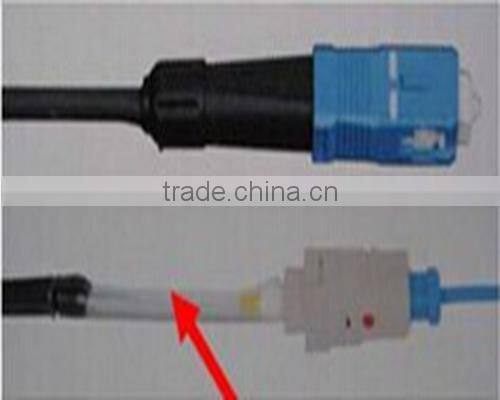

FTTH Hot melt plastic fiber optic connector

Features:

1) Factory-installed fiber stub.

2) No epoxy and polishing required, No special tools needed when installed.

3) Allows up to three re-termination result.

4) Easily installed, Quick and easy fiber termination in the field.

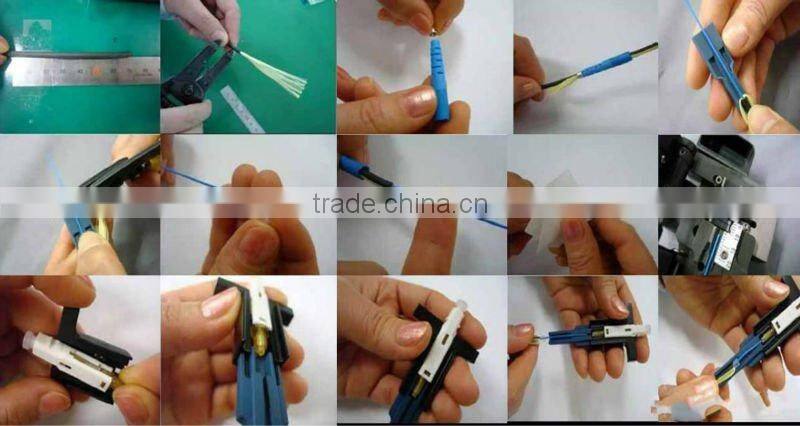

5) Only 30 seconds needed to learn the process of installation and making.

6) Cost effective, Warranty: One year.

7) Fast connecting and repeat, No special tools needed when installed.

8) Can be made on-site without splicing connectors.

9) Eliminates cable excess length and pigtail splice storage.

10) Can be intalled and maked repeatedly thus avoiding loss.

Specifications:

Fiber optical fast connector

SC/PC fast connector,
Fiber connector,
Optical connector,
with High Reliability

Applications:

1. Fiber optic communication system

2. Optical access network

3. Fiber optic data transmission

4. CATV

5. Fiber optic equipment

Performance index:

Item		SC Fast connector		Item No.	SC/UPC-BJT-02
Technical parameter	Suited cable outer diameter		2*3.0mm
	Insertion Loss		Average value≤0.25dB Max value≤0.5dB
	Return Loss		Max value≥40dB(UPC) ≥55dB(APC)
	Repetitive Assemble		Assemble times:5
	Duration Time		NOM≤90S
	Vibration		Frequency:10-50Hz Sweep Fr:45/min Amplitude:0.75mm Single-amplitude
	Tensile		0.125mm bare fiber 4N,Off-line monitor optic performance 0.25mm fiber 4N,Off-line monitor optic performance 0.9mm fiber 10N,On-line monitor optic performance
	Machinery durability		0.25 Db MAX. 0.15 Db MAX
	Repetition		Insert and Draw frequency:10

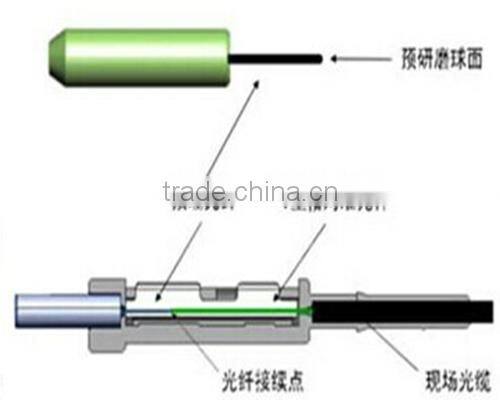

Remark	Embedded optical fiber type structure; Pressure parts adopt new unique structure design, Without the glue and grinding, low insertion loss, high return loss, high and low temperature tested, Operation is easy; Widely used in opening the optical fiber terminal into FTTH.

ording information:

SC Embedded fast connector
Single mode 9/125	900µM(ODM) 2MM 3MM
Single mode 9/125 APC	900µM(ODM) 2MM 3MM
Multi mode 62,5/125	900µM(ODM) 2MM 3MM
Multi mode 50/125	900µM(ODM) 2MM 3MM
