Good Quality Fiber Optic Mechanical Splice

Name: Good Quality Fiber Optic Mechanical Splice
Brand: szrunxiang
SKU: 105881431
Availability: InStock

Shenzhen Runxiang Telecommunication Technology Co., Ltd.

US$ 2.45 - 3.15 MOQ: 3000 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

szrunxiang

Model Number:

FTTH Splice

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name szrunxiang

Model Number FTTH Splice

Specifications

fiber optic mechanical splice
1.no need any other stool
2.easy and fast installation
3.Fast delivery
4.OEM is ok

Good quality fiber optic mechanical splice

Product Description

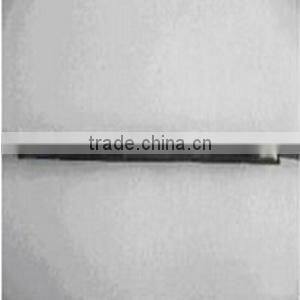

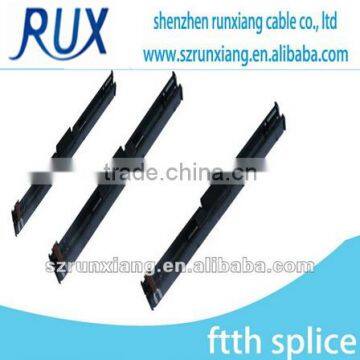

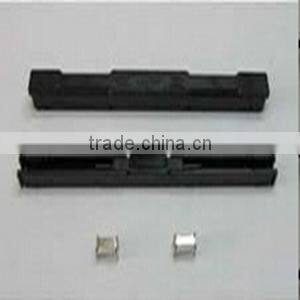

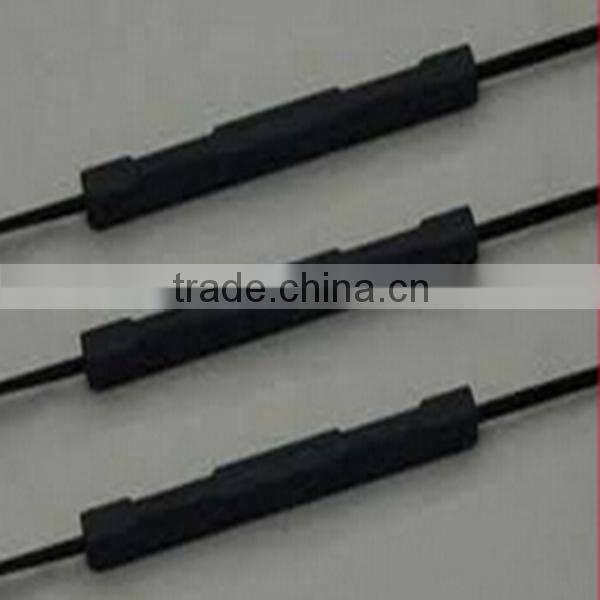

Product Picture

Features

Apply for the ftth tail fiber optical docking

1. The alternative site preset optical fiber connectors docking type thoroughly, and reduce the cost.

2. the connect time is less than 40 seconds (including optical fiber preparation).

3. In some sealing technology, use fixed number of year more than 30 years.

4.tensile strength is greater than 9 kg, can be directly connected with ONU.

5. For fiber optic cable damaged (tensile and rat bite, etc.) or corridor to the skin in the cable.

Product Paramete

Test Project	Technology parameters
Applicable scope	Φ0.25mm&Φ0.90mm fiber
Fiber diameter	125μm(657A&657B)
Tight cladding diameter	250µ m &900µm
Applicable mode	Single mode&multimode
Operating Time	about 10s(do not contain fiber processing)
Insertion Loss	≤0.10dB
Return Loss	≤—40dB
Naked fine solid tight force	>5N
Tight packet layer clamping forces	>8N
Using Temperature	−40°c—75°c
Repeated use(ten times)	Δ1L≤0.2dBΔRL≤5dB
