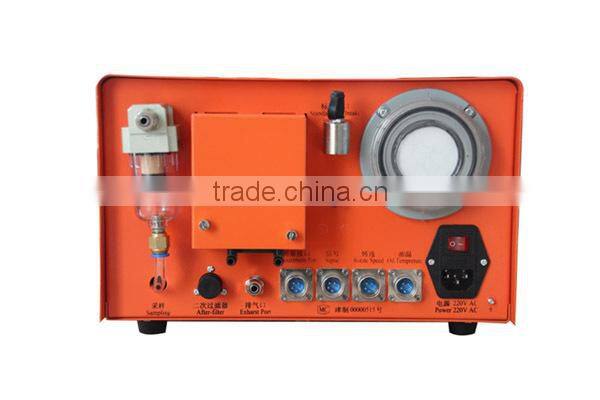

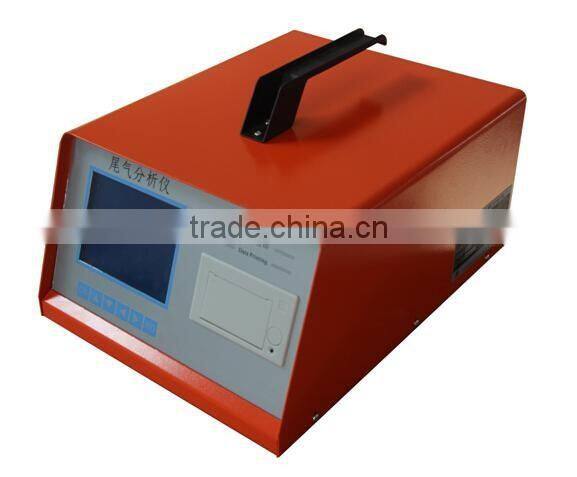

HC, CO, CO2, O2, NOx Gas Analyzers
Product Description
Main Feature
Used to measure the concentration of HC, CO, CO2, O2, NOx in the Automobile Exhaust Gas
Two kinds of Test Function: General and Two-speed idle
Full English Menu Operation
LCD (Liquid crystal) screen display
Auto-zeroing
Automatic calculation and show the air-fuel ratio
Equipped with RS232 digital serial communication interface to facilitate networking
Optional function: rotate speed and oil temperature Measurement
Equipped with functions of plate number and time display
Can store and search 500 groups of data, built-in printer
Measurable with Liquefied Petroleum Gas(LPG),Compressed Natural Gas(CNG),and gasoline and other alternative fuel vehicles
Main technical parameters
1. Environment conditions:
Temperature: -5~40℃ humidity: ≤95%
Atmosphere pressure: 670~106kps
Power supply:AC220V ±10%; 50Hz ±1Hz
2. Measurement range:
HC: 0~10000 10-6(ppm) vol
CO: 0~10.0 10-2 (%)vol
CO2: 0~20.0 10-2(%)vol
O2:0~25.0 10-2 (%) vol
NOx:0~5000 10-6(ppm)vol
Rotate speed: 0~10000rpm
Oil temperature: 0~120 ℃
3. Response Time:
CO, HC, CO2≤10S ; NOx, O2≤15S
4. Indication Error:
CO: ±5% (relative error: 0-10%)
CO2: ±5% (relative error: 0-20%)
HC:±5% (relative error: 0-2000ppm vol Hexane equivalent)
±10% (relative error:2001-9999ppm vol Hexane equivalent)
O2: ±5% (relative error: 0-20.9%)
NOx: ±4% ( relative error)
610×500×330mm
| Item | Description | Qty |
| 1 | SV-5Q Automobile Exhaust Gas Analyzer | 1 |
| 2 | Standard Gas(if ship by air, will not be included) | 2 |
| 3 | Protective Tube | 2 |
| 4 | Sampling Handle | 1 |
| 5 | Probe Tube | 1 |
| 6 | Operation Instruction | 1 |
| 7 | Calibration Certificate | 1 |
| 8 | Filter Paper | 1 |
| 9 | 220V power line | 1 |
| 10 | Front Filter | 8 |
| 11 | After-filter Tip | 10 |
| 12 | Tail Pipe (1m) | 1 |
| 13 | Print Paper | 1 |
| 14 | Specialized Spanner | 1 |
| 15 | Network Tie-in | 1 |
| 16 | Pump Cover | 2 |
| 17 | Filter Element For Oil-water Separator | 2 |
| 18 | PC Software and Operation video | 1 |
| 19 | Oil temperature Tester ( Free) | 1 |
| 20 | RPM Tester (Free) | 1 |
