Packed in carton box
Case: 635*580*485mm
Upright post: 1510*120*12

Competitive Price SV-D1T Manual Headlight Tester

Product Discription

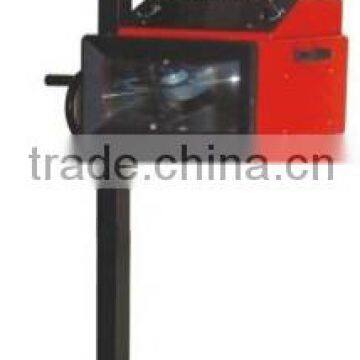

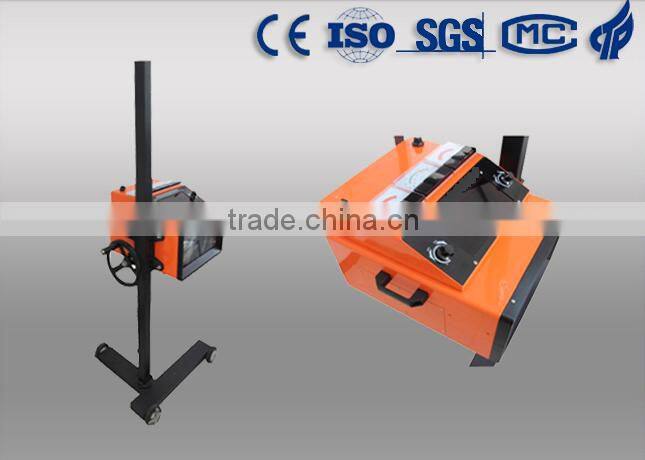

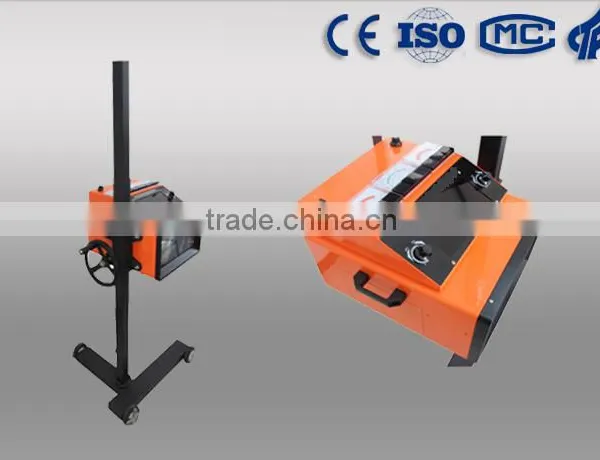

SV-D1T –headlight tester (hereinafter referred to as “tester”), boasts the advantages of accuracy measurement and simple installation, is used to detect the luminous intensity and the illuminating position (or the axis deviation).It is suitable for the auto manufacturer, .vehicle repair unit and environmental- protection department.

Functional feature:

1.Test the light intensity and optical axis deviation of moter vehicle at the same time

2.Match built-in printer to print the test result

3.Legerity, easy to install, accuracy measurement

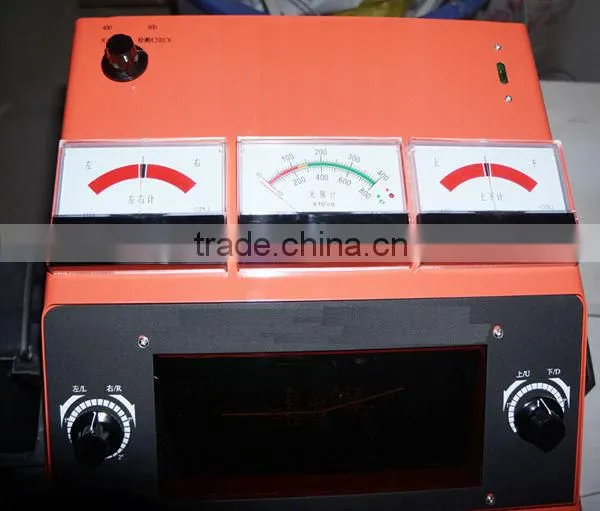

4.Adopt advanced optical system structure, the light characteristic of tested headlamp will display on the screen.

5.Equipped with analog signal and digital signal networking

6.Low power, work with the battery power.

The main technical parameters

1. Nominal range of usage:

Temperature:0-40°C;

Relative humidity :≤80%;

Power: AC220V-DC5V or DC6V()

2.Measurement:

Luminous intensity:0-40000cd                  0-80000cd

Axis deviation:

Vertical direction:Up1º20´——Down2º20´;

Horizontal direction:Left2º20´——Right2º20´;

3. The indicated error for luminous intensity: ±12%;

4.The indicated error for axis deviation: ±15’

5. Measuring range of lamp height: 0.4—1.3m;

6. Testing distance: 1m;

7. Weight:22kg

8. Dimension:

Case: 635*580*485mm

Upright post: 1510*120*12
