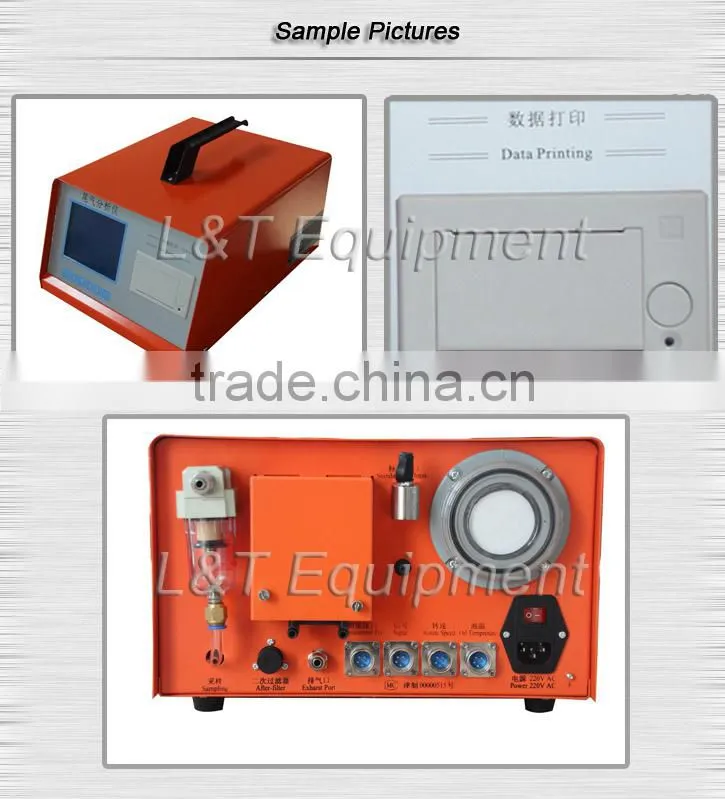

Competitive Price Exhaust Multiple Gas Analyzer 5Q

Main Feature

Used to measure the concentration of HC, CO, CO2, O2, NOx in the Automobile Exhaust Gas

Two kinds of Test Function: General and Two-speed idle

Full English Menu Operation

LCD (Liquid crystal) screen display

Auto-zeroing

Automatic calculation and show the air-fuel ratio

Equipped with RS232 digital serial communication interface to facilitate networking

Optional function: rotate speed and oil temperature Measurement

Equipped with functions of plate number and time display

Can store and search 500 groups of data, built-in printer

Measurable with Liquefied Petroleum Gas(LPG),Compressed Natural Gas(CNG),and gasoline and other alternative fuel vehicles

Main technical parameters

1. Environment conditions:

Temperature: -5~40℃ humidity: ≤95%

Atmosphere pressure: 670~106kps

Power supply:AC220V ±10%; 50Hz ±1Hz

2. Measurement range:

HC: 0~10000 10-6(ppm) vol

CO: 0~10.0   10-2 (%)vol

CO2: 0~20.0   10-2(%)vol

O2:0~25.0    10-2 (%) vol

NOx:0~5000  10-6(ppm)vol

Rotate speed: 0~10000rpm

Oil temperature: 0~120 ℃

3. Response Time:

CO, HC, CO2≤10S ; NOx, O2≤15S

4. Indication Error:

CO: ±5% (relative error: 0-10%)

CO2: ±5% (relative error: 0-20%)

HC:±5% (relative error: 0-2000ppm vol Hexane equivalent)

±10% (relative error:2001-9999ppm vol Hexane equivalent)

O2: ±5% (relative error: 0-20.9%)

NOx: ±4% ( relative error)
