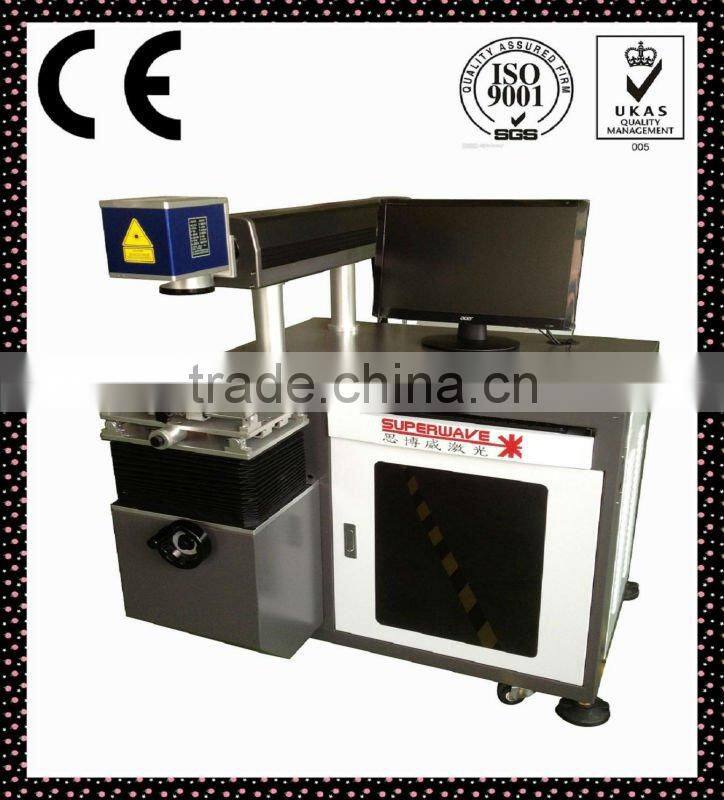

Glasses and Watch Laser Engraving System
US$ 10,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Diode
CNC or Not:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Diode Laser Marker in Auto PartsUS$ 10,000 - 13,000MOQ: 1 Set -
Hot Sell Diode Laser Marking Name PlateUS$ 10,000 - 13,000MOQ: 1 Set
-
PVC Pipe Marking YAG Diode Laser Marking in Metal and NonmetalsUS$ 10,000 - 13,000MOQ: 1 Set
-
Online Flight Laser Marker MachineUS$ 10,000 - 16,000MOQ: 1 Set
-
Food Packaging Laser MarkingUS$ 10,000 - 13,000MOQ: 1 Set
Condition
New
Laser Type
Diode
CNC or Not
Yes
Cooling Mode
Water Cooling
Place of Origin
Guangdong, China
Brand Name
superwave laser
Model Number
SW-DPLM
Certification
CE, ISO
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
glasses and watch laser engraving system1:Low power dissipation
2:stable laser output
3:long service life
4:MaintenanceFree
Glasses and watch laser engraving system
high speed, high efficiency,high quality
It's good at deep engrave on any matallic workpiece.such like mould die.and automobile part pare with the CNC machine,the laser marker is more better of the accuracy.because the laser beam diameter only 0.01mm,the cutting tools can not be such small.
Features
1.High electro-optic conversion efficiency
2.Low power dissipation and stable laser output
3.Semiconductor pump laser with long service life
4.Laser output with small spot and thin lines, suitable for precise pattern marking
5. Maintenance Free.
Applications
Very high output laser power,easy to do deep engraving of mould,automobile parts, bicycle parts etc. Laser marking machine have been widely applied to make most metal materials and some nonmetal materials, especially to process high elaborate and accurate product marking ,such as electronic components,handphone components ,communication equipment ,glasses and watch ,auto parts, plastic buttons, tools, tableware, medical equipment .precision metal, gift accessories,label, PVP tube etc.
Technical Parameter
Model SW-DPLM100 SW-DPLM150
Max laser power 100W 150W
Laserwave length 1064nm 1064nm
Laser Repetition frequency ≤50KHZ ≤50KHZ
Marking area 50×50mm,150×150mm ;200×200mm 50×50mm,150×150mm,200×200mm
Marking depth ≤1.5mm ≤2.0mm
Linear speed ≤7000mm/s ≤7000mm/s
Min line width 0.01mm 0.01mm
Min letter 0.2mm 0.2mm
Repeatability ±0.002mm ±0.002mm
Power supply 220v±10% / 50Hz 220v±10% / 50Hz
Host dimension 1000mm*800mm*1100mm 1000mm*800mm*1100mm
Model SW-DPLM100 SW-DPLM150
Max laser power 100W 150W
Laserwave length 1064nm 1064nm
Laser Repetition frequency ≤50KHZ ≤50KHZ
Marking area 50×50mm,150×150mm ;200×200mm 50×50mm,150×150mm,200×200mm
Marking depth ≤1.5mm ≤2.0mm
Linear speed ≤7000mm/s ≤7000mm/s
Min line width 0.01mm 0.01mm
Min letter 0.2mm 0.2mm
Repeatability ±0.002mm ±0.002mm
Power supply 220v±10% / 50Hz 220v±10% / 50Hz
Host dimension 1000mm*800mm*1100mm 1000mm*800mm*1100mm

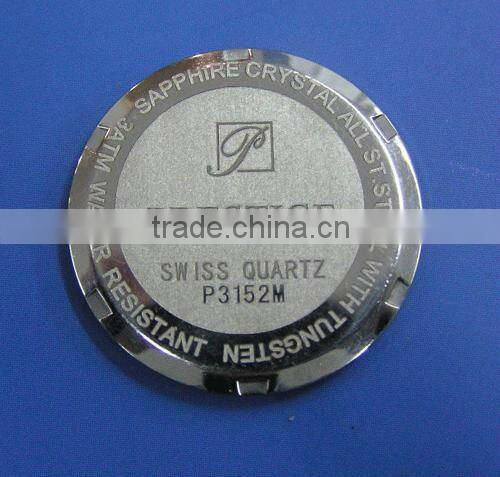

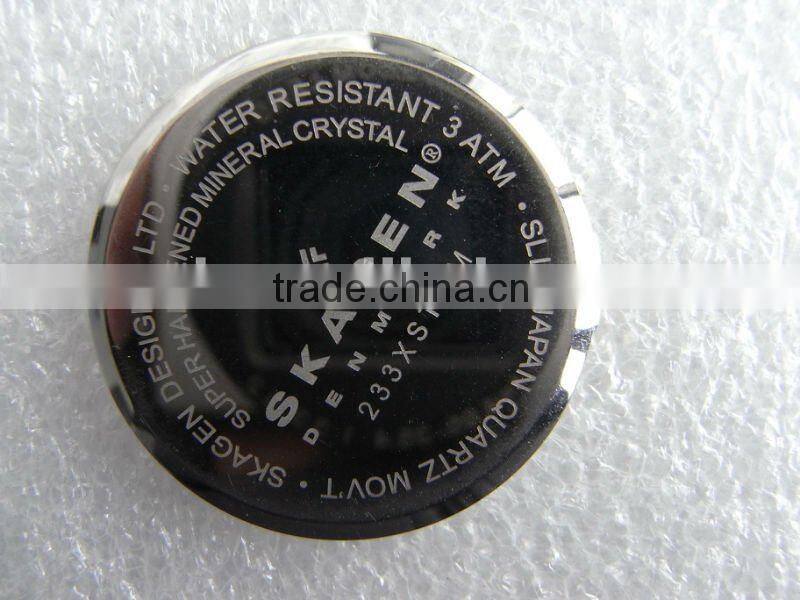

samples
....
