High Efficiency Professional Rotogravure Printing Machine
US$ 10,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
KETE
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Computerize Rotogravure Printing MachineUS$ 40,000 - 80,000MOQ: 1 Set -
1600mm Width Plastic Film Heat Transfer Printing MachineUS$ 40,000 - 80,000MOQ: 1 Set
-
New Stype Full Automatic Computer Control High Speed Plastic Bag Printing MachineUS$ 40,000 - 80,000MOQ: 1 Set
-
High Speed CMYK Printing MachineUS$ 40,000 - 80,000MOQ: 1 Set
-
High-Speed Gravure Printing MachineUS$ 40,000 - 80,000MOQ: 1 Set
Condition
New
Place of Origin
Zhejiang, China
Brand Name
KETE
Model Number
KTNS-A
Usage
Paper Printer, Other, Paper Printer, Plastic or paper
Automatic Grade
Automatic
Voltage
380V/3P
Gross Power
about 60kw
Dimensions(L*W*H)
10000 x 2900x 2700mm
Weight
about 8000kg
Certification
CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

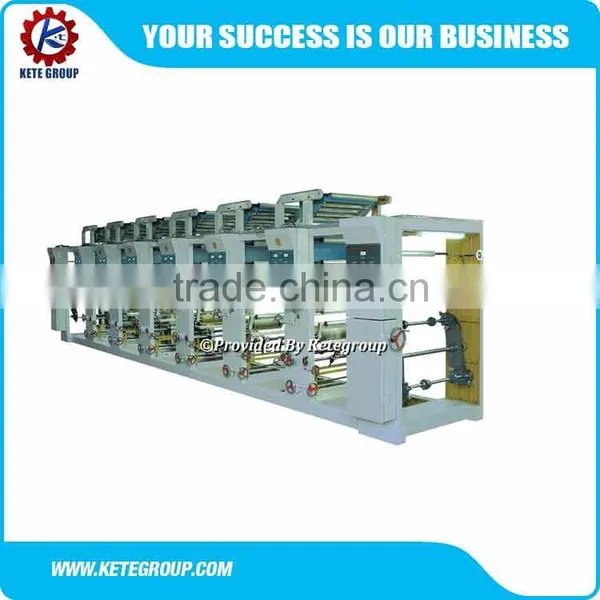

High Efficiency Professional Rotogravure Printing Machine
Future:
This plastic bag rotogravue printing machine is suitable for roller to roller printing plastic film, aluminum Foil, BOPP, PET, PVC, PVC Foil, PE, CPP and Paper etc. It is widely use in flexible packaging material printing.
Main Technical Specification
| Main Point | Model | KTMS-B |
| Printing Colors | 2~12 Colors (base on customer requirement) | |
| Printing Material | Plastic Film / Paper / Aluminum Foil etc | |
| Printing Width | 600mm/800mm/1000mm/1200mm | |
| Heating Way | Electrical heating, Gas heating | |
| Printing speed | 120m/min | |
| Total power | About 135kw(8 color) | |
| Machine weight | About 17 Ton (8 color) | |
| Machine Size(LWH) | 13500 x 2900 x 2800mm (8 color) | |
| Unwind &Rewind | Type | Twin-reel rotating design |
| Raw Material Diameter | 600mm (Optional 800mm or more) | |
| Paper Core Diameter | 76 mm(optional152mm) | |
| Material Splicing and cutting | Manual(Optional automatic) | |
| Tension Control | Auto tension | |
| Air-shaft | Shaft type air shaft | |
| Printing Unit | Printing cylinder | Shaft-less type design |
| Printing cylinder Diameter Range | 120~300mm (special size possible) | |
| Color register precision | Vertical (Y-Axis) ≤±0.10mm (automatic) Horizontal (X-axis) ≤±0.10mm (Manual) | |
| Emboss rubber roller Diameter | 135 mm (NBR Shore (A) 60 °~ 65°) | |
| Ink recycle | Pneumatic Ink pump | |
| Control Part | Auto color register system | Include |
| Web video inspection system | include | |
| Water cooling system | Not Include(Optional possible) | |
| 3 motor drive tension system | Not include(optional possible) | |
| 7 motor drive tension system | Not include(optional possible) | |
| Ink viscosity | Not include(optional possible) | |
| Reverse Printing device | Not include(optional possible) |

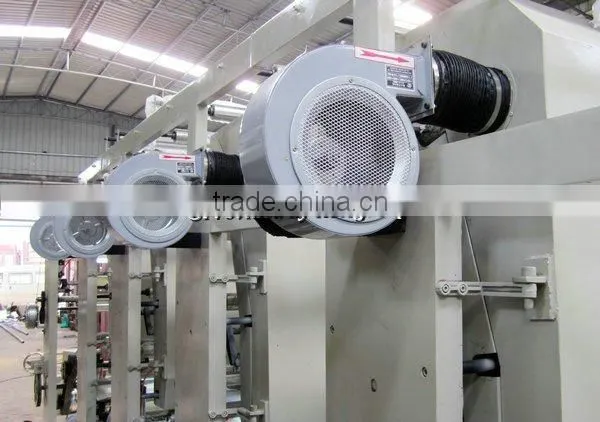

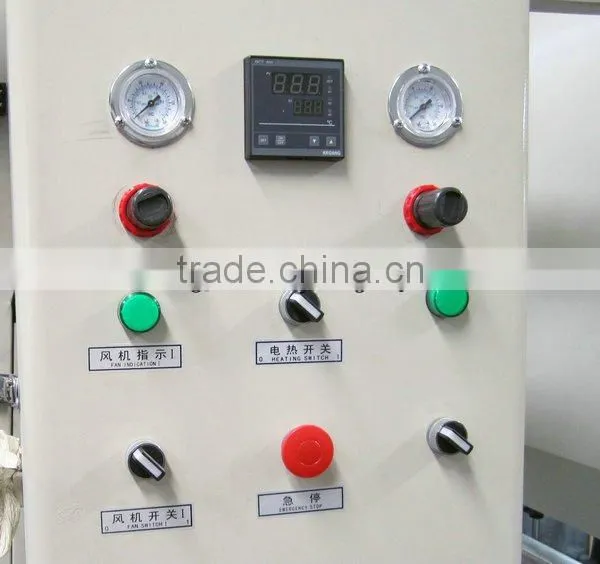

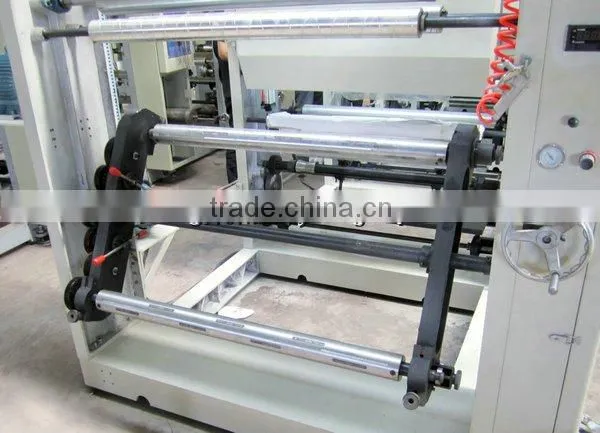

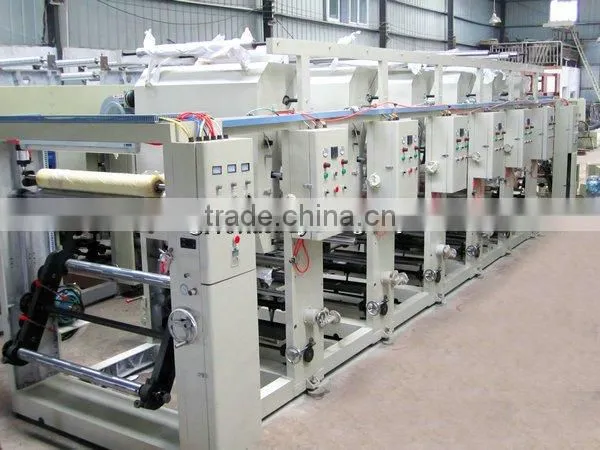

Machine Detail Show

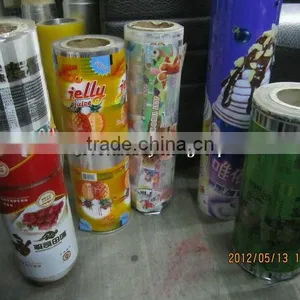

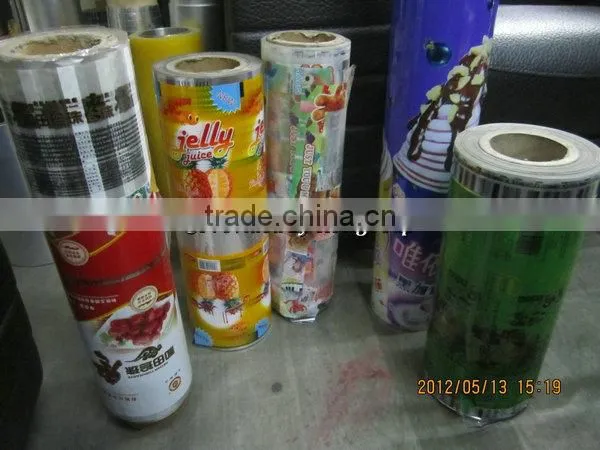

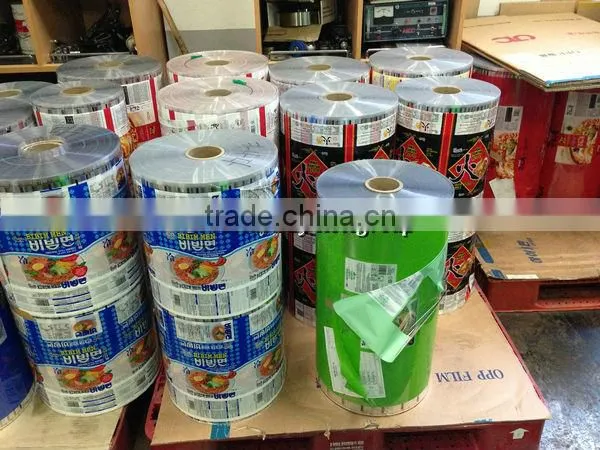

Printed Sample Show:
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2013
Factory Size
5,000-10,000 square meters
Total Employees
11 - 50 People
