1600mm Width Plastic Film Heat Transfer Printing Machine

Name: 1600mm Width Plastic Film Heat Transfer Printing Machine
Brand: KETE
SKU: 105839699
Availability: InStock

US$ 40,000 - 80,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

KETE

Ruian Kete International Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name KETE

Model Number KTMS-B

Usage Paper Printer, Other, Paper Printer, Platic film, Aluminum Foil

Automatic Grade Automatic

Voltage 380V/3P

Gross Power About135kw

Dimensions(L*W*H) L13500 x W2900 x H2800mm

Weight about 17000kg

Certification CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

1600mm Width Plastic Film Heat Transfer Printing Machine

Features

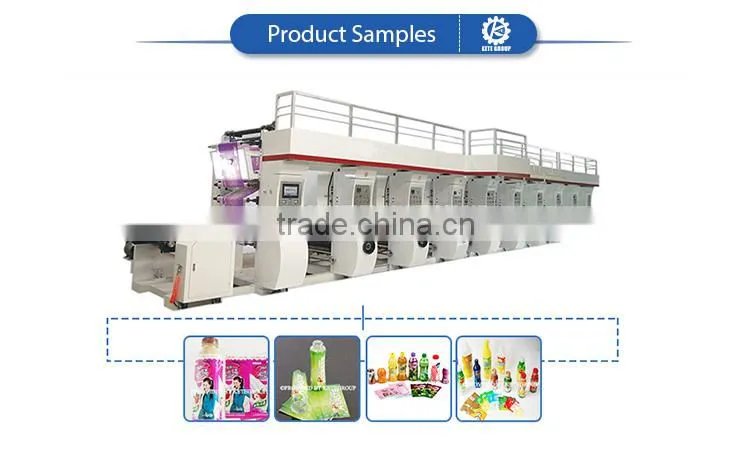

This Plastic Film Roto Gravure Printing Machine is suitable for roller to roller printing plastic film, aluminum Foil,

BOPP, PET, PVC, PVC Foil, PE, CPP and Paper etc. It is widely use in high quality packaging material printing.

Main Technical Specification

Main Point	Model	KTMS-B
	Printing Colors	2~12 Colors (base on customer requirement)
	Printing Material	Plastic Film / Paper / Aluminum Foil etc
	Printing Width	600mm/800mm/1000mm/1200mm
	Heating Way	Electrical heating, Gas heating
	Printing speed	120m/min
	Total power	About 135kw(8 color)
	Machine weight	About 17 Ton (8 color)
	Machine Size(LWH)	13500 x 2900 x 2800mm (8 color)

Unwind &Rewind	Type	Twin-reel rotating design
	Raw Material Diameter	600mm (Optional 800mm or more)
	Paper Core Diameter	76 mm(optional152mm)
	Material Splicing and cutting	Manual(Optional automatic)
	Tension Control	Auto tension
	Air-shaft	Shaft type air shaft

Printing Unit	Printing cylinder	Shaft-less type design
	Printing cylinder Diameter Range	120~300mm (special size possible)
	Color register precision	Vertical (Y-Axis) ≤±0.10mm (automatic) Horizontal (X-axis) ≤±0.10mm (Manual)
	Emboss rubber roller Diameter	135 mm (NBR Shore (A) 60 °~ 65°)
	Ink recycle	Pneumatic Ink pump

Control Part	Auto color register system	Include
	Web video inspection system	include
	Water cooling system	Not Include(Optional possible)
	3 motor drive tension system	Not include(optional possible)
	7 motor drive tension system	Not include(optional possible)
	Ink viscosity	Not include(optional possible)
	Reverse Printing device	Not include(optional possible)
