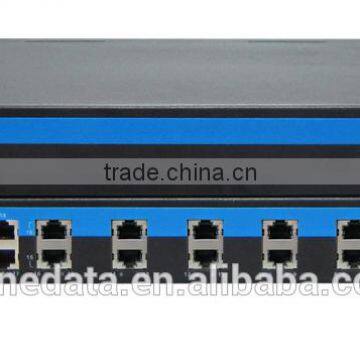

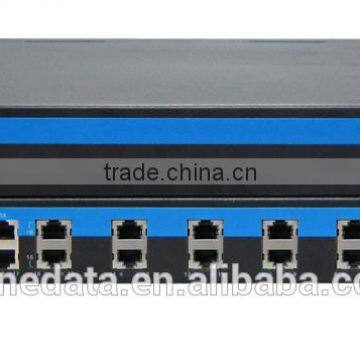

24 Ports Managed Industrial Ethernet Switch With 4 Gigabit SFP Ports

      IES5028-4GS is an industrial grade, managed and redundancy Ethernet switch which supports 24 Electrical Ports and 4 Gigabit (SFP socket) ports. It provides some kinds of advanced network managed function, such as: SW-Ring redundancy ring network, VLAN, Trunking, Quality of Service, Flow control, port mirroring, fault alarm and firmware upgrade online. SW-Ring TM is an arithmetic designed for rapid redundancy network.,it provides crash recovery technology for the rapid redundant network(recovery time<20ms),can bring your Ethernet  network to intelligent redundancy. Standard industrial design,all components are industrial grade, can satisfied every requirement of the industrial scene,make the switch high reliability.

      Switch accorded to CE, FCC standard and Industrial grade 4 design requirement, provides high-performance, high-quality products guaranteed for the industrial Ethernet application. Support 1 channel power input and 1 channel  relay alarm output, wide voltage range of power supply input,wide temperature range of -40~75℃ to be able to meet the requirements of all kinds of industrial field, can be widely used in electric power, water conservancy, transportation, and other fields.

1.Support IEEE802.3, IEEE802.3u, IEEE802.3z,IEEE 802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W
2.SW-Ring Rapid redundancy network patent technology (Fault recovery time<20ms)
3.Support RSTP, Convergence time<50ms

4.Support Port based VLAN and IEEE 802.1Q VLAN
5.Support absolutely and opposite priority, support IEEE802.1P, DSCP priority
6.Support Based Tag port Tag trunking, IEEE802.3ad, 2 group trunking link
7.Support MAC address learning, aging automatic
8.Support rate control, Broadcast storm control
9.Support configuration file up and download

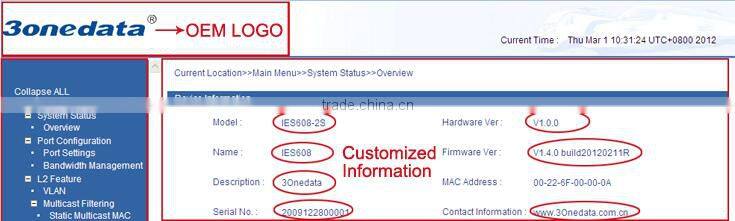

10.Support WEB configuration
11.Support 8K MAC address
12.Support static and dynamic IGMP
13.Support bi-directional port mirroring
14.Support 1 channel relay alarm output
15.Industrial grade 4 design, -40-75℃work temperature
16.IP30 protection grade , rugged high-strength metal case

17.No fan design

18.19 inch rack mounted

Switch

Function

Switch

Properties

100M forward filter speed: 148810pps
1000M forward filter speed: 1488100pps

Transmit mode: store and forward
Backplane bandwidth: 12.8Gbps
MAC table size: 8K
Buffer size: 4M

Electrical Port: RJ45 Connector, 10/100Base-T(X) auto negotiation , Half/full duplex and MDI/MDI-X auto detect
Optical Fiber Port: 1000Base-FX (SFP Socket)

Console port: RS-232(RJ45 Connector) debug serial port
Alarm port: 1 channel relay alarm output( 2 bit terminal block)

Power port: 1 channel power iutput( 3 bit terminal block)

10/100Base-T(X):CAT5/CAT5e UTP(≤100m)

1000Base-FX:Optical Fiber

Multi-mode:    1310nm, 2Km
Single-mode: 1310nm, 20/40/60Km
                          1550nm, 80/100/120Km

wavelength: 1310nm, 1550nm

Shell: IP30 protect grade, metal shell

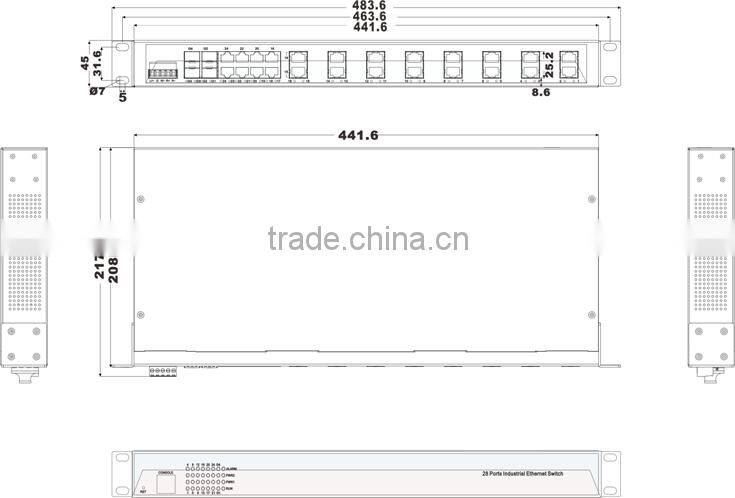

Size(W×H×D): 441.6mm×45mm×208.9mm

Weight:2.82kg

Installation: 19” 1U rack mounted

EMI:

FCC Part 15, CISPR (EN55022) class A
EMS:

EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock:

IEC 60068-2-27
Free fall:

IEC 60068-2-32
Vibration:

IEC 60068-2-6
