24 Ports Managed Industrial Optical Ethernet Switch With 2 Fiber Ports

Shenzhen 3onedata Technology Co., Ltd.
24 Ports Managed Industrial Optical Ethernet Switch With 2 Fiber Ports thumbnail-1
24 Ports Managed Industrial Optical Ethernet Switch With 2 Fiber Ports thumbnail-2
24 Ports Managed Industrial Optical Ethernet Switch With 2 Fiber Ports thumbnail-3
24 Ports Managed Industrial Optical Ethernet Switch With 2 Fiber Ports photo-1

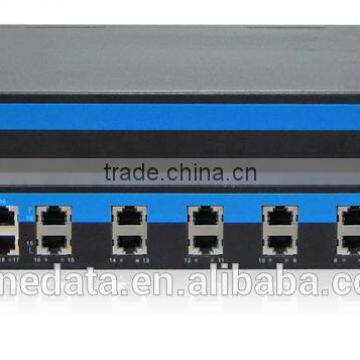

24 Ports Managed Industrial Optical Ethernet Switch With 2 Fiber Ports photo-2

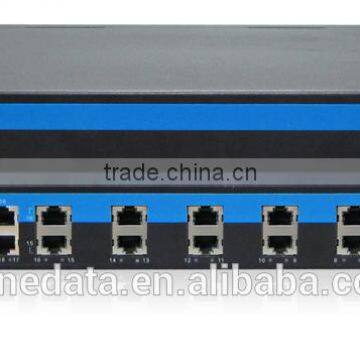

24 Ports Managed Industrial Optical Ethernet Switch With 2 Fiber Ports photo-3
US$ 1 - 2,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
3onedata/OEM
Model Number:
IES5024-2F
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name 3onedata/OEM
Model Number IES5024-2F

24 ports Managed Industrial Optical Ethernet Switch with 2 Fiber Ports  24 ports Managed Industrial Optical Ethernet Switch



 Introduction
      IES5024-2F is an industrial grade, managed and redundancy Ethernet switch which supports 22 Electrical Ports and 2 Fiber ports. It provides some kinds of advanced network managed function, such as: SW-Ring redundancy ring network, VLAN, Trunking, Quality of Service, Flow control, port mirroring, fault alarm and firmware upgrade online. SW-Ring can bring your Ethernet  network to intelligent redundancy. Standard industrial design, can satisfied every requirement of the industrial scene. All components are industrial grade, make the switch high reliability.
      Switch complies with FCC and CE standards, in line with the industrial design requirements, for industrial Ethernet application provides high-performance, high-quality products guaranteed. Support 1 channel power input and 1 channel  relay alarm output, wide voltage range of power supply input,wide temperature range of -40~75℃ to be able to meet the requirements of all kinds of industrial field, can be widely used in electric power, water conservancy, transportation, and other fields.



 Features

1.Support IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W
2.SW-Ring ring network patent technology (Fault recovery time<20ms)
3.Support RSTP, Convergence time<50ms
4.Support static multicast, IGMP Snooping and GMRP
5.Support Port based VLAN and IEEE 802.1Q VLAN
6.Support QOS absolutely and opposite priority
7.Support flow control, Broadcast storm control
8.Support WEB, SNMP and Telnet configuration
9.Support MAC address learning, aging automatic
10.Support DHCP server and port frame statistics
11.Support email warning and relay warning
12.Support port status display, data update.
13.Support configuration file upload and download
14.Support 1 channel relay alarm output
15.Industrial grade 4 design, -40-75℃working temperature
16.IP30 protection grade, rugged high-strength metal case

17.No fan design

18.19-inch rack mounted



 Specification
Standard IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W
Protocol
ARP, ICMP, TCP, DHCP, DNS, HTTP, Telnet, SW-Ring, RSTP, SNMP
Flow Control
IEEE802.3x flow control, Back pressure flow control

Switch

Function

SW-Ring, QOS, 802.1QVLAN, RSTP, SNMP, Port trunking, static multicast filter, port mirroring, bandwidth management, broadcast storm control, port flow statistics, upgrade online, up and download configuration file, user name access system

Switch

Properties

Forward speed: 148810pps

Maximum filter speed: 148810pps
Transmit mode: store and forward
Backplane bandwidth: 12.8Gbps
MAC table size: 8K
Buffer size: 4M

Interface

Electrical Port: RJ45 Connector, 10/100Base-T(X) auto negotiation , Half/full duplex and MDI/MDI-X auto detect
Optical Fiber Port: 100Base-FX, SC/ST/FC connector

Console port: RS-232(RJ45 Connector) debug serial port
Alarm port: 1 channel relay alarm output( 2 bit terminal block)

Power port: 1 channel power iutput( 3 bit terminal block)

Transfer Medium

10/100Base-T(X):CAT5/CAT5e UTP(≤100m)

100Base-FX:Optical Fiber

Multi-mode:    1310nm, 2Km
Single-mode: 1310nm, 20/40/60Km
                          1550nm, 80/100/120Km

wavelength: 1310nm, 1550nm

Indicator
Run indicator: Run
Interface indicator: Link (1~24)
Power supply indicator: PWR
Alarm indicator: Alarm
Power Supply
Input Voltage: 100~240VAC
Connector: 3 bits terminal block
Overload current protect: 1.2A
Consumption
No-load consumption: 7.4W
Full-load consumption: 10.1W
Environment Requirement
Working temperature: -40~75℃
Storage temperature: -40~85℃
Relative Humidity: 5%~95 %( no condensation)
Physical Characterisitics

Shell: IP30 protect grade, metal shell
Size(W×H×D): 441.6mm×45mm×208.9mm

Weight:2.82kg

Installation: 19” 1U rack mounted

Industrial Standard

EMI:

FCC Part 15, CISPR (EN55022) class A
EMS:

EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock:

IEC 60068-2-27
Free fall:

IEC 60068-2-32
Vibration:

IEC 60068-2-6

Certification
CE, FCC, RoHS, UL508 (Pending)
Warranty
 5 years
Packing List
1. Industrial Ethernet Switch IES5024-2F (plus terminal block)  × 1
2. Attached CD × 1
3. User manual × 1
4. Certificate of quality × 1
5. Warranty card × 1
6. Power cable × 1

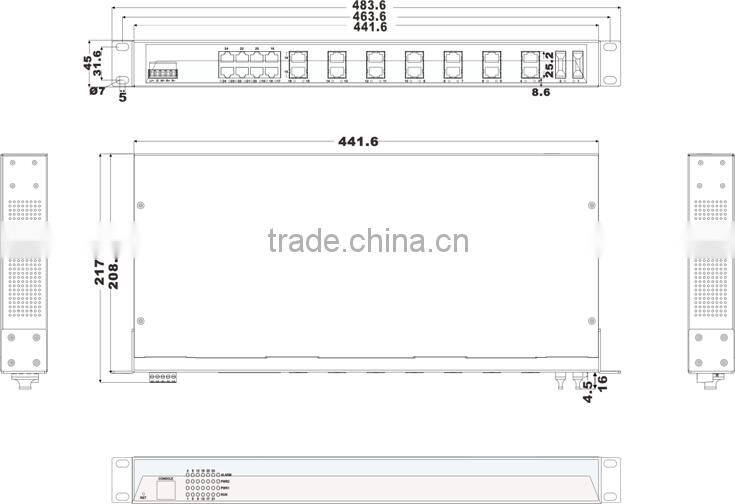

 Dimension
  24 ports Managed Industrial Optical Ethernet Switch with 2 Fiber Ports

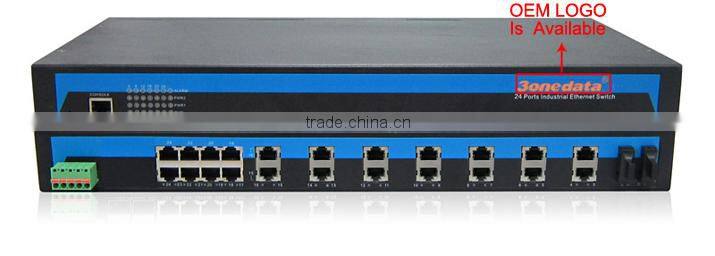

 Show Case
  24 ports Managed Industrial Optical Ethernet Switch with 2 Fiber Ports
24 ports Managed Industrial Optical Ethernet Switch with 2 Fiber Ports



 Package
24 ports Managed Industrial Optical Ethernet Switch with 2 Fiber Ports24 ports Managed Industrial Optical Ethernet Switch with 2 Fiber Ports



 Shipping
24 ports Managed Industrial Optical Ethernet Switch with 2 Fiber Ports



 Order Information
IES5024-2F (M):     22 port 10/100Baes-T(X) + 2 port 100Base-FX Multi-mode SC/ST/FC, 100-240VAC
IES5024-2F (S):     22 port 10/100Baes-T(X) + 2 port 100Base-FX Single-mode SC/ST/FC, 100-240VAC
IES5024-2F (SS):  22 port 10/100Baes-T(X) + 2 port 100Base-FX single-mode, single fiber SC/ST/FC, 100-240VAC
