8 ports Embedded Industrial Ethernet Switch Core Module
| Introduction |
| IEM608 module is an embedded module designed to allow client’s industrial equipment to be provided with managed switch function. Adopting the modern modular design concept, which is simple and high-efficiency, this module makes the industrial equipment designers concentrate on their industrial design instead of figuring out complex network product design. It is widely used in such areas as electric power, water conservation, mining, chemical manufacturing, car, road monitoring, national defense and military. |
| Features |
1. Support 8 Ethernet ports, all support 10Base-T/100Base-TX/100Base-FX(optical or electrical ports optional) 2. Support self-developed SW-Ring redundant network patented technology, many looped networks, failover time <20ms 3. Support Layer 2 protocols of Ethernet switch such as VLAN, QoS, Port Trunking, Port Mirroring, IGMP Static Multicast 4. Support rate limiting and broadcast storm control 5. Support Web, CLI, Telnet management 6. Support port data frame statistics 7. Support abnormal alarm 8. Support one-key configuration 9. Energy saving design, power consumption < 4W 10.Working temperature -40~85℃ 11.Compact and integrated |
| Specification | |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ad, IEEE802.1p, IEEE802.1Q, IEEE802.1X |
| Flow Control | IEEE802.3x flow control, Back pressure flow control |
|
Switch Properties |
Support 100 devices in a ring |
| Interface | Ethernet port: |
| Networking | Single Ring, Tangent Ring, Star, Chain, Coupling Ring, Dual Homing |
| Power Supply | Input voltage: 3.3VDC (±5%) |
|
Environment Requirement |
Working temperature: -40~85℃ Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) |
| Physical Characterisitics | Size (W*H*D): 72mm×54mm×9.5mm |
| Warranty | 5 years |

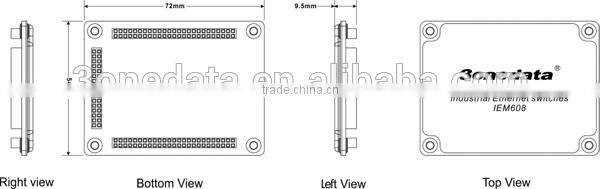

| Dimension |
|
|
| Order Information |
| IEM608: 8 port(optical or electrical ports optional) Embedded Industrial Ethernet Switch Module, 3.3VDC |
