2 ports Ethernet to Fiber Converter

FOB Price

USD $1 - $150 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	3onedata/OEM
Model Number	MODEL1200

Product Description

2 ports Ethernet to Fiber Converter

Introduction

Model1200, 10/100M Media Converter, complies with IEEE802.3, IEEE802.3u, IEEE802.3x Standards. It is designed to convert data signal between 10/100 Base-TX and 100Base-FX fast Ethernet. It supports 10/100Base-TX and 100Base-FX applications. The data signal converted by such high performance media converter can be transmitted up to 120Km maximum by fiber-optical cable. The Converter is equipped one optic port and two RJ45 Jacks and one external power supply receptacle. Four LED indicators are built-in for easy diagnosing and monitoring the status of. It can be configured automatically for Full Duplex or Half Duplex operation.

Features

1. Accord to IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX
2. MDI/MDI-X auto negotiation, 10M/100M auto negotiation
3. Supports full /half duplex, Point-to-point transparent transfer
4. Power External 5VDC input
5. Plug-and-play, easy to installation
6. Can insert to 2U 19", 14 slots Rackmount

Specification
Standard	Comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX
Interface	RJ45 port rate: 10/100Mbps auto negotiation Optical Fiber port rate: 100Mbps Working: Asynchronous, point to point Transfer distance: RJ45 port: 100m Optical Fiber: 20,40,60,80,100,120km(SM), 2 km(MM) optional RJ45 port cable: CAT5/CAT5e UTP Optical Fiber connector: SC, ST, FC optional Optical Fiber cable: Single Mode:8.3/125,8.7/125,9/125 or 10/125 um Muti-Mode:50/125,62.5/125 um Wavelength:850nm,1310nm,1550nm
Power Supply	Power supply: External 5VDC input Consumption: 5W
Environment Requirement	Operating temp:-10°C to 65°C Storage temperature: -20 to 70°C Operating humidity: 5% to 95%(no condensation)
Physical Characterisitics	Dimensions: 94.0×71.0×26.0mm(external power supply) Shell: Iron Color: White Weight: 228g(external power supply)
Certification	CE, FCC, RoHS
Warranty	3 years
Packing List	1.Ethernet to Fiber Converter MODEL1200 × 1 2.Power Adapter × 1 3. User manual × 1 4. Certificate of quality × 1 5. Warranty card × 1

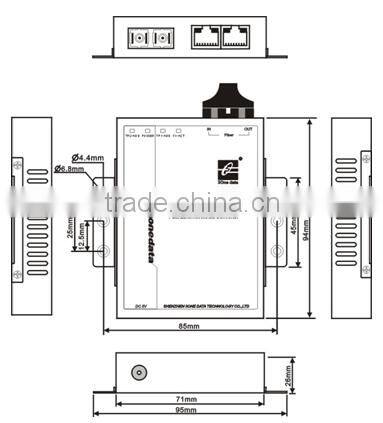

Dimension

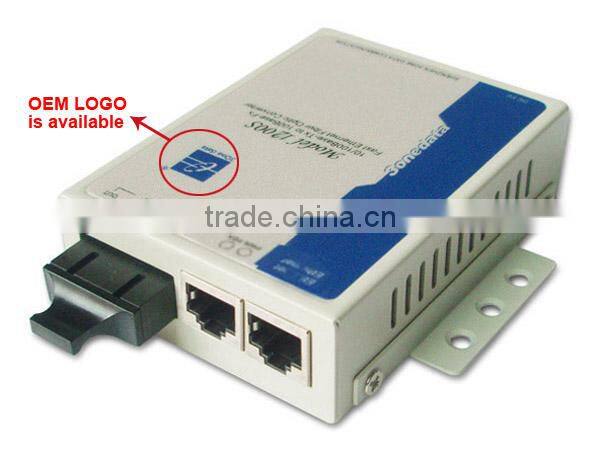

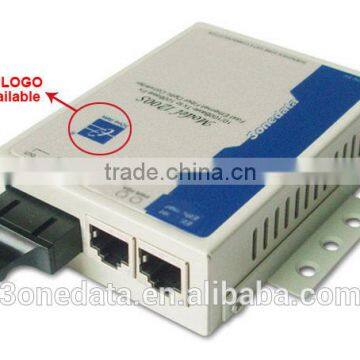

Show Case

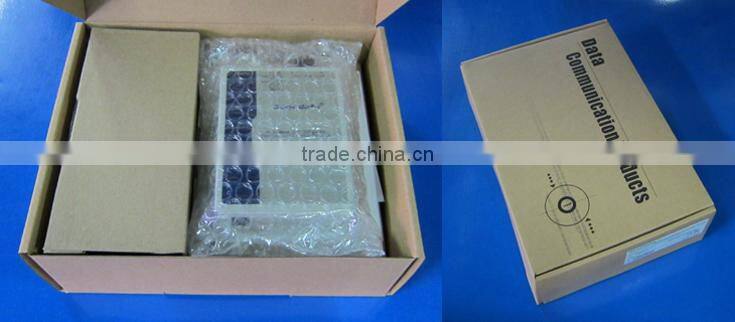

Package

Shipping

Order Information

MODEL1200-M: 2 ports Ethernet to Fiber Converter, Multi-mode, SC/ST/FC, 5VDC

MODEL1200-S: 2 ports Ethernet to Fiber Converter, Single mode, SC/ST/FC, 5VDC

MODEL1200-SS: 2 ports Ethernet to Fiber Converter, Single mode, Single Fiber, SC/ST/FC, 5VDC
