Specifications

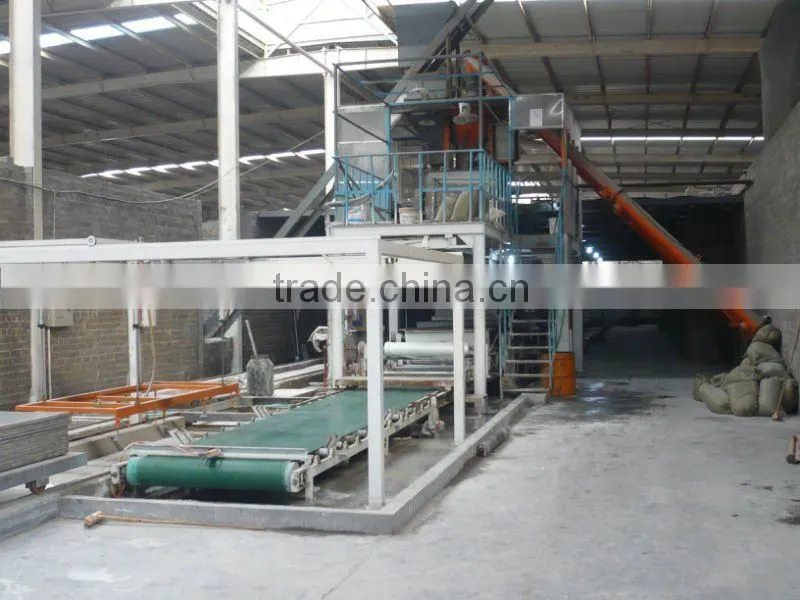

Wall board production line has workshop and raw material warehouseThe equipment has high automatization degree, simple production technology, low labor intensity and production line, and there is no noise and three-wastes during production
II. Project Feature
1. The source of the production raw materials is widely with no regional restriction. The product is made of sawdust, straw (rice hulls), many kinds of crop straw and inorganic material (such as talcum powder, infusorial earth and powder coal ash) after special technology. So this project have low production cost, small investment and fast effectiveness.
2. The equipment has high automatization degree, simple production technology, low labor intensity and production line, and there is no noise and three-wastes (waste water, waste gas and waste residue) during production.
3. Low production energy consumption. With the influence of chemical reaction, it can meet the requirements about production technology without high temperature and high pressure.

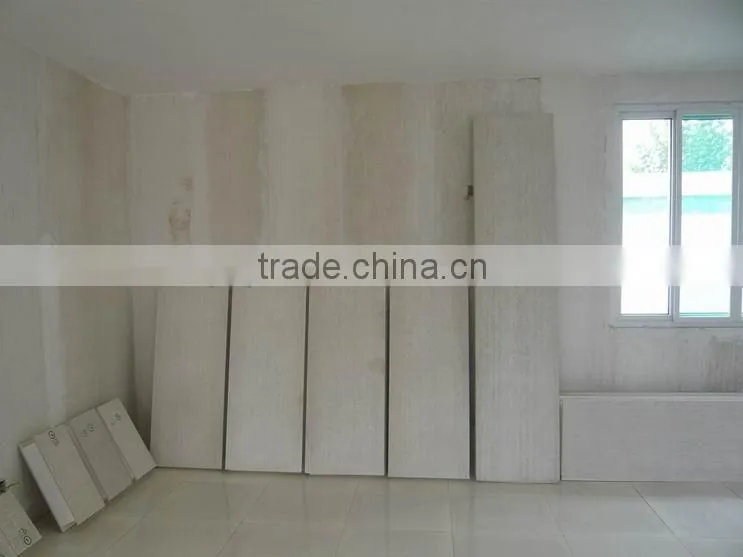

III. Product Feature and Performance
(I)Performance
1 |
Air-dry density |
≤ (Standard index)50kg/m2 |
(Test Value) 30.0kg/ m2 |
2 |
Drying shrinkage rate of the board |
≤0.08% |
0.015% |
3 |
Anti-breaking load |
≥1400N |
5640N |
4 |
Anti-impact |
No breakage phenomenon such as cracking after three impacts |
No breakage phenomenon such as cracking after three impacts |
5 |
Thermal resistance of main section (T=90mm) |
≥1.35(m2.k)/w |
≥1.36(m2.k)/w |
6 |
Thermal bridges area ratio |
≤8% |
2.22% |
7 |
Sound reduction Index |
|
36dB |
8 |
Radioactivity |
|
None |
