Multi-functional EPS Sandwich wall panel machine

Specifications

Wall Panel Equipment

Shandong Chuangxin Building Materials Complete Equipment Co., Ltd. is a professional equipment manufacturer, main equipments are following: Magnesium Oxide Board (MgO Board) Production Line, Fire-resistant Decorating Board Production Line, Straw Board Production Line, Straw Door Production Line, Wall Board (Sandwich Wall Board) Production Line, Vent-pipe Board Production Line and Roof Tile Production Line. The above production line can produce Magnesium Oxide Board (MgO board), Fire-resistant Decorating Board, Straw Board, Straw Door, wall board(Sandwich Wall Board), vent-pipe board and Roof Tile.

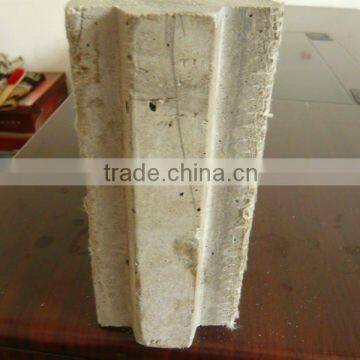

1. Product Wall Board Machine mainly produce Light-weight heat-preserving wall board, which will replace solid brick as indoor partition, wall of steel structure and frame structure as well as wall of removable houses. Its products can be used for outside wall heat-preserving in northeast area of China.

2. Raw Material and Cost Analysis The product is formed with crushed crop straw or sawdust and some inorganic chemical materials at one time after roller-extruding. The raw materials of this board is widely and purchased easily for customers. Take thickness of 8cm as example, the cost is about 25 Yuan/m2, and the market price is generally 50~70 Yuan/m2.

3. Technology Features This machine adopts the technology of double-drive double-roller-extruding, and the product is formed once after slurry spreading, material feeding, spreading no-woven cloth, compounding and repressing. The product have even and glazed surface with high compactness. The equipment largely reduces the labor intensity of worker and thoroughly changes many shortages of the former casting forming with upright mould or flat mould, such as large mould usage and single kind of product. There is not any requirement about high temperature and high pressure during production processing. The board will be formed at one time after roller-extruding under the conditions of normal temperature and normal pressure. This is a green environmental-protection project, because that there is no waste water, waste materials and waste gas during its production processing. The finished board doesn’t need high temperature drying, air-drying and watering, and under the normal temperature, they will dry well indoor.

4. Equipment Model and Product Specification According to different production capacity, our equipment has different models for large-scale, middle-scale and small-scale. Our all equipment can produce board with same quality and specification but different production capacity. The board with the thickness from 1 cm to more than 10 cm, the width from 60cm to 120cm and unlimited length. So you can adjust the specification of board at will. The product has following kinds: hollow, solid and interlayer with benzene board (With best effect). 5. After-sale After purchased the equipment, we will teach relevant technology for free, and will go to your factory for installation and testing until you can produce the qualified product by yourself. Our company will train 2-3 technical personnel for free until he can get the skill. We will take responsibility for provide technical consultation and following-up service for a long time, the equipment warranty period is one year.
