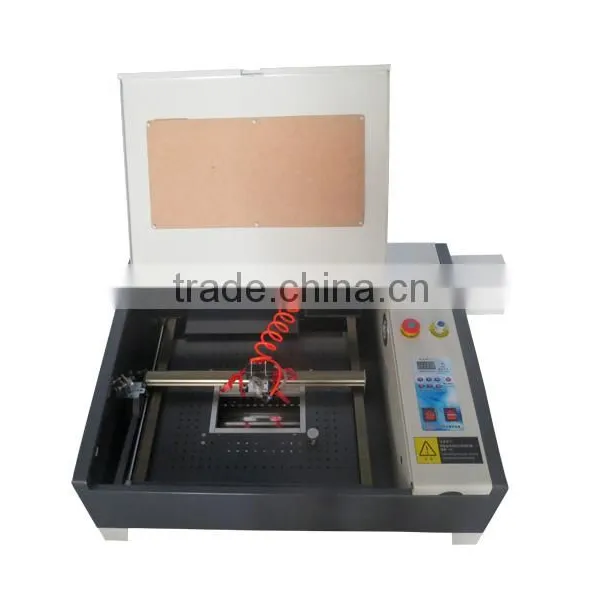

The Newest LY 4040M CO2 Laser Engraving & cutting machine
Main unique functions:
A. Manual control up & down.
B. Red point alignment.
C. Blowing flame retardant function.
D. Digital control panel
E. Full 50W power.
F. Non-drag tail design.
G. Honey-comb built into up & down control platform,all in one design.
H. Emegency stop buttion
I. Laser locking function.(Without laser key,other cannot use machine)

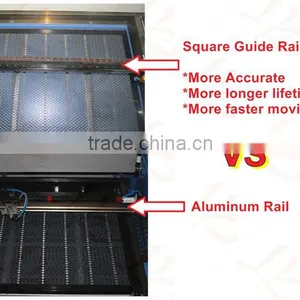

J. X axis upgraded aluminum rail into square guide rail,engraving speed up 25% than before!!!
1.Applicable materials:
wood,MDF,acrylic,plastic,plexiglass,crystal,rubber,fabric,paper and other non-metal materials.
2.Applicable Industry:
This machine is suitable to professional user for cutting performance in art gift, package, portraits,breast cards, cloth toy and other industries.
3.Technical Parameters:
Soft Ware: Coredraw
Laser Power |
50W |
Supply Voltage |
110/220V±10% ,50/60Hz |
Max width |
400mmx400mm |
Working table |
Aluminum knife and honey comb |
Up and down size |
50mm |
Table control mode |
Manual/Electric |
Max engraving Speed |
400mm/s |
Max cutting speed |
40mm/s |
Locating Precision |
<0.01mm |
Min shaping character |
Character 2x2mm ,Letter 1x1mm |
Resolution |
0.0125mm |
Cutting thickness |
0-15mm |
Control Configuration |
Panel |
Data transfer Interface |
USB |
System Environment |
WINDOWS XP/Win7/8 |
Graphic file format |
BMP,PLT,AI,CDR,DXF |
256 Color separation output |
Support |
360 degree slope engraving |
Not support |
Off line working(Non-internet) |
Not support |
Cooling Way |
Water Cooling |
Operating temperature |
5°C -35°C |
Water protecting sensor and alarm |
Yes |
Net Weight |
80 |
Machine dimension |
1150x600x400mm |
Packing list:
1. laser 4040M Engraving machine 50W.
2. USB date line
3. Power line
4. USB drive key
5. Smoke pipe
6. Water pump
7. Air pump
(RE:laser 4040M not with 4th rotary axis)
