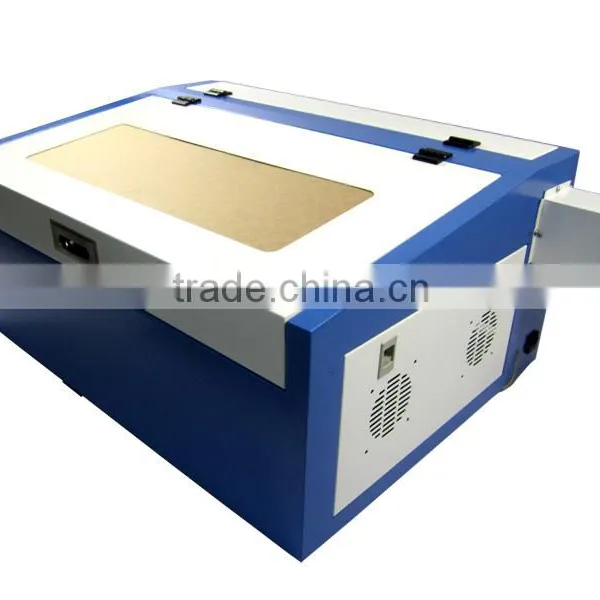

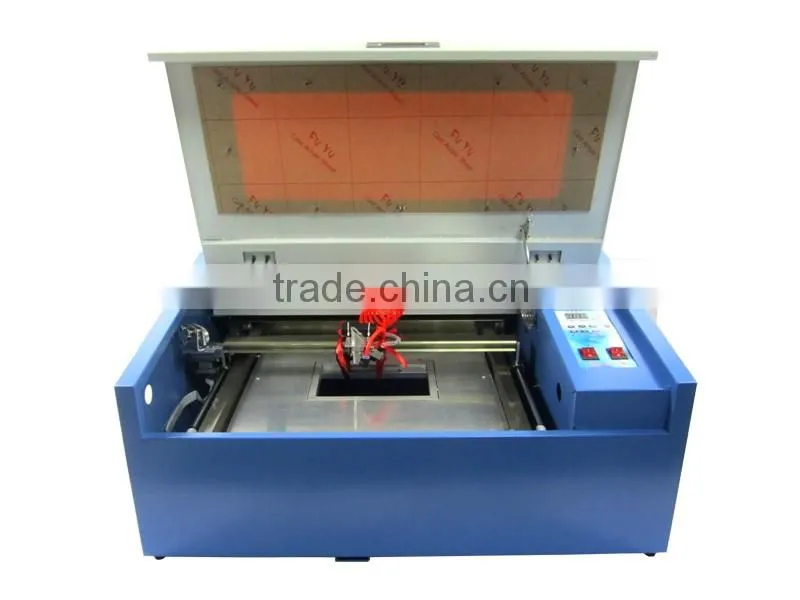

Latest LY 3040M CO2 Laser Engraving & cutting machine, Super quality with all functions

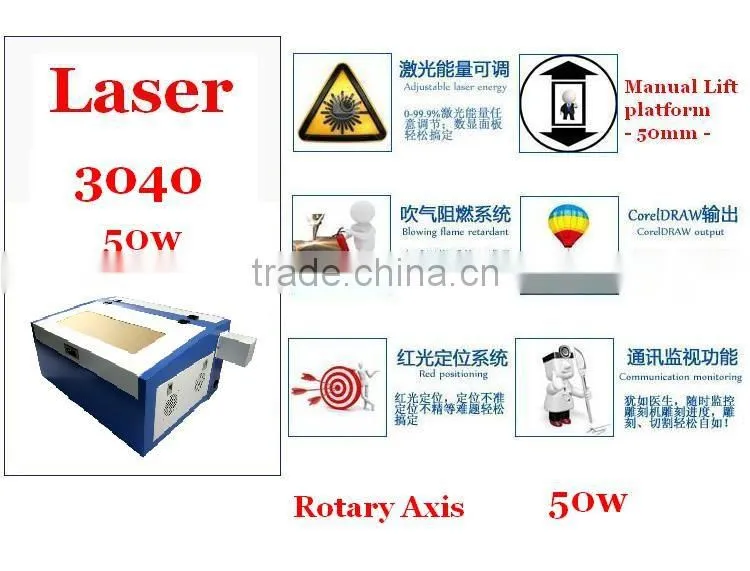

Main uniqure functions:
A. Manual control up & down.
B. Red point alignment.
C. Blowing flame retardant
D. Digital control panel
E. Full 50W power.

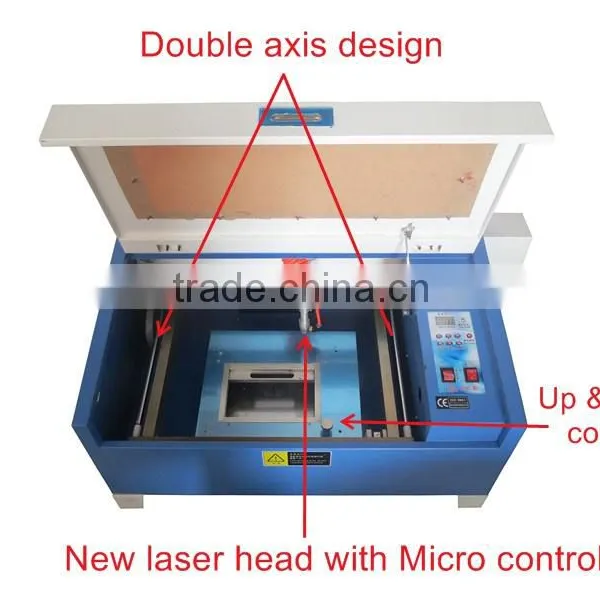

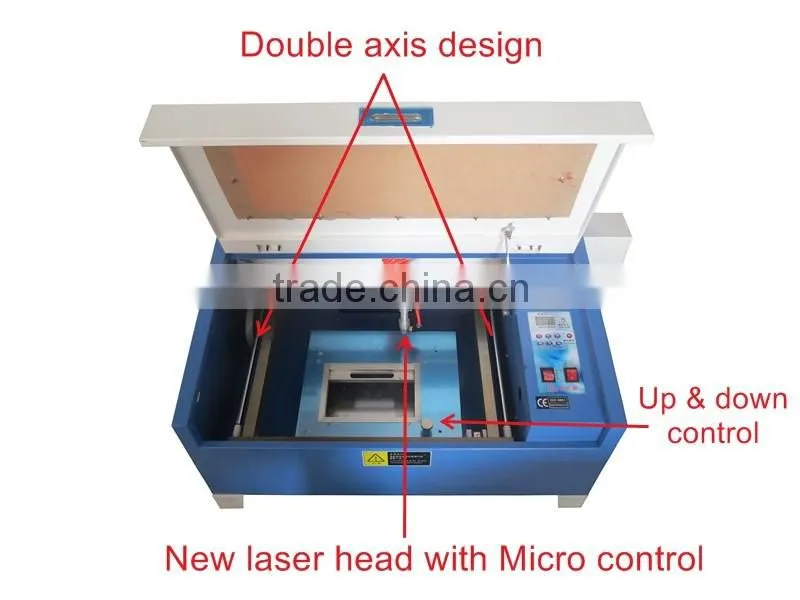

F. Double axis movement,more accurate & longer life-time.
G. Non-drag tail design.

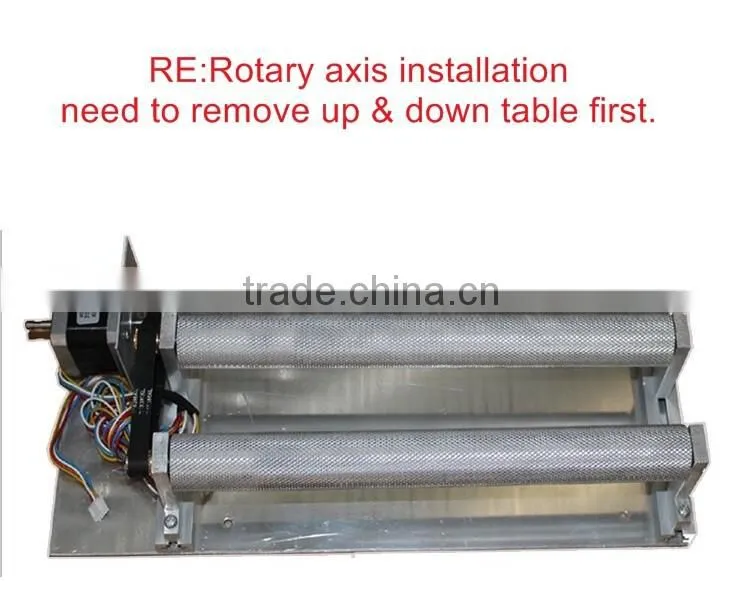

H. Rotary Axis included.
I. Honey-comb board included 300*400 size.
J. X axis upgraded aluminum rail into square guide rail,engraving speed up 25% than before!!!
1.Applicable materials:

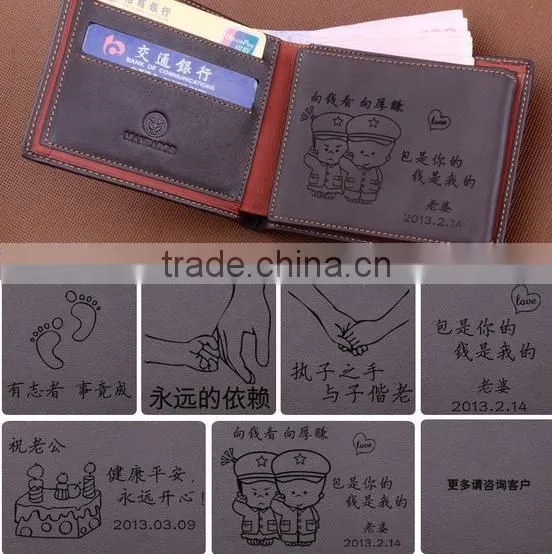

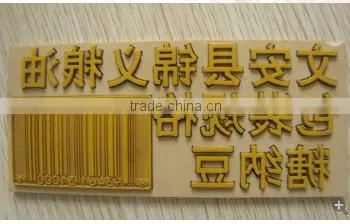

wood,MDF,acrylic,plastic,plexiglass,crystal,rubber,fabric,paper and other non-metal materials.
2.Applicable Industry:
This machine is suitable to professional user for cutting performance in art gift, package, portraits,breast cards, cloth toy and other industries.
3.Technical Parameters:
Soft Ware: Coredraw
Laser Power |
50W |
Supply Voltage |
110/220V±10% ,50/60Hz |
Max width |
400mmx300mm |
Working table |
Aluminum knife and honey comb |
Up and down Range |
50mm |
Table control mode |
Manual/Electric |
Max engraving Speed |
400mm/s |
Max cutting speed |
40mm/s |
Locating Precision |
<0.01mm |
Min shaping character |
Character 2x2mm ,Letter 1x1mm |
Resolution |
0.0125mm |
Cutting thickness |
0-15mm |
Control Configuration |
|
Data transfer Interface |
USB |
System Environment |
WINDOWS XP/Win7/8 |
Graphic file format |
BMP,PLT,AI,CDR,DXF |
256 Color separation output |
Support |
360 degree slope engraving |
Not Support |
Off line working(Non-internet) |
Not Support |
Cooling Way |
Water Cooling |
Operating temperature |
5°C -35°C |
Water protecting sensor and alarm |
Yes |
Net Weight |
55KG |
Machine dimension |
1150x700x500mm |

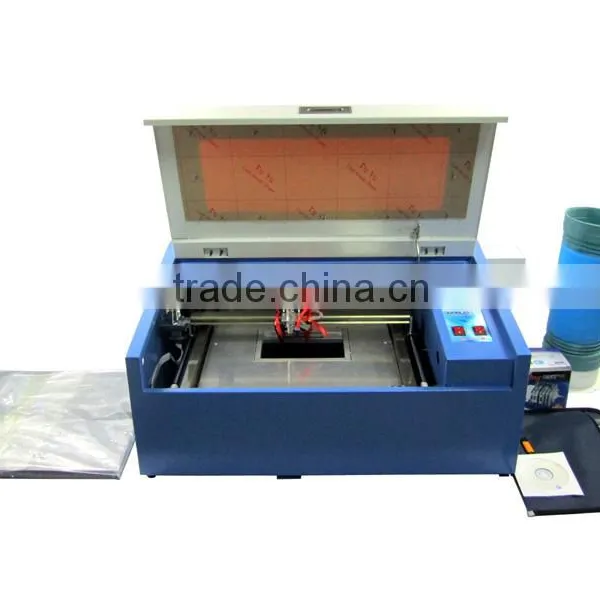

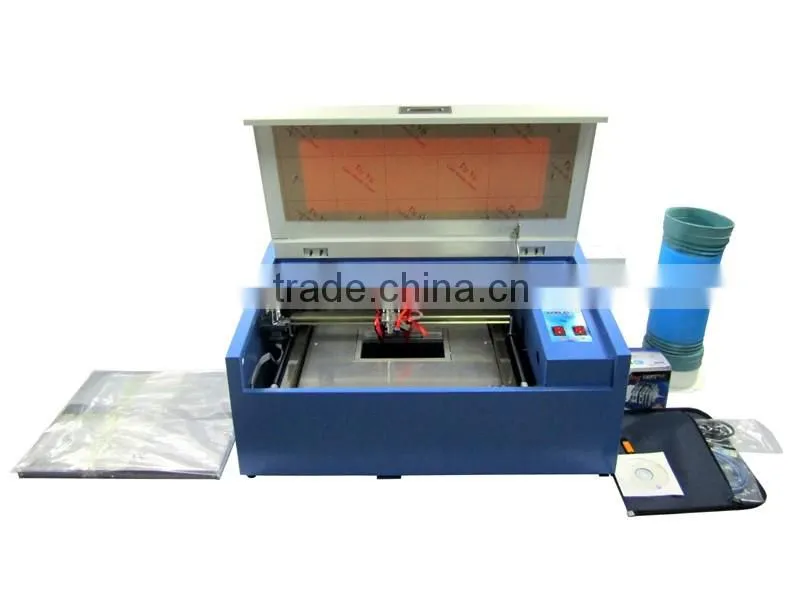

Packing list:
1. laser 3040M Engraving machine 50W.
2. Honey comb board 300*400mm
3. USB date line
4. Power line
5. USB drive key
6. Smoke pipe
7. Water pump
8. Air pump
9. Rotary axis
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
USBearth business group is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .
We has 10 years experiences in manufacturing and foreigh trade
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. 6 year gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
