Product Details

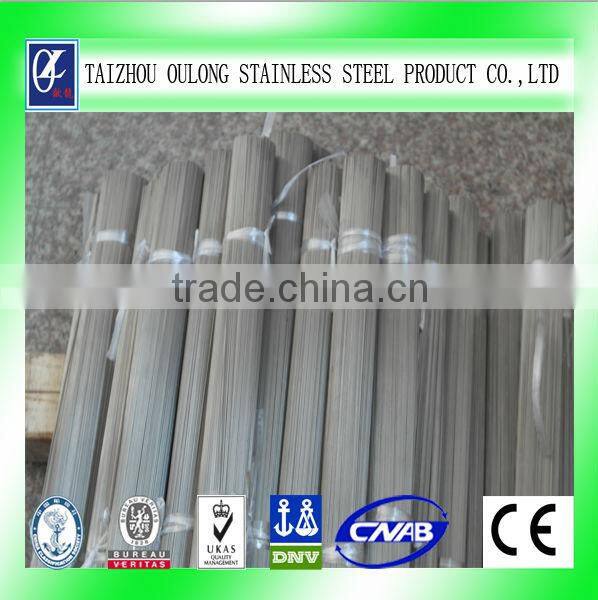

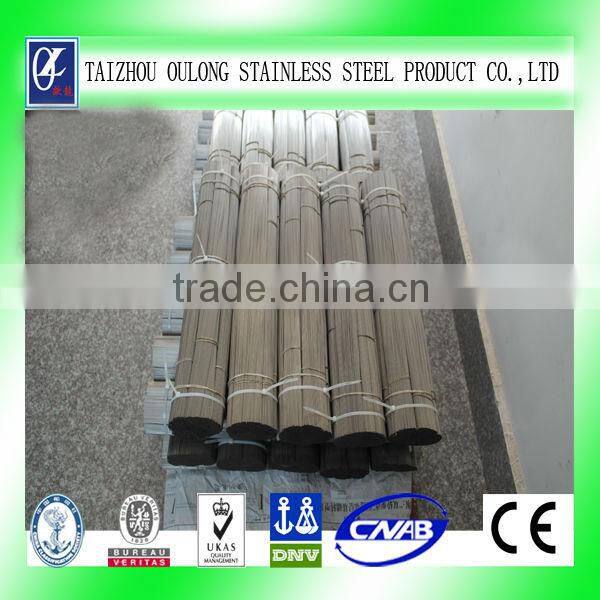

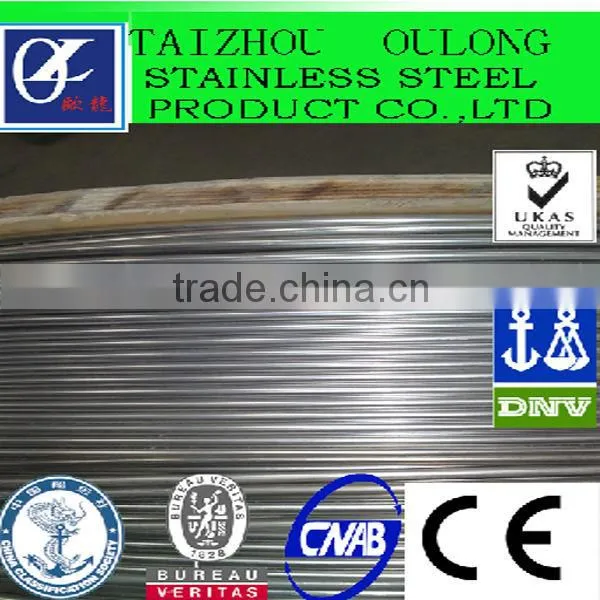

Stainless Steel Capillary Pipe
SUS316L 9.525mm*0.889mm
1. Material:
American Standard Material: TP304 TP304L TP304H TP321 TP321H TP316L TP316SS
TP316Ti TP347 TP347H TP317L TP309S TP310S 904L
Russian standard Material: 08X18H10 03X18H11 10X17H13M2T 03X17H13M2
12X18H10T 08X18H10T 08X18H12B
German standard material: 1.4301 1.4306 1.4541 1.4404 1.4571 1.4550
Japanese standard material: SUS304 SUS304L SUS321 SUS316L
SUS316Ti SUS347 SUS800 SUS840
Double-Grade Material: 304/304L 316/316L 321/321H 347/347H
Super duplex steel: 2205 2304 S31803 S32750
Inconel 600,Inconel 601,Inconel 625,Inconel 725,Incoloy 800,Incoloy 800H,Incoloy 800HT,
Incoloy 825,Incoloy 901,Incoloy 925Incoloy 926 Etc.
2.Production standard:
China Standard : GB/T14975/14976/13296
American Standard: ASTM A269/A312/A213/A511/A789/A790
Japanese standard: JISG3459/3463
German standard: DIN17456/17458
European standard: EN10216-5
3. The range of applications:
petroleum, chemical, pharmaceutical, food, machinery, aerospace, construction, military, hardware,
gas boilers, plumbing devices, ships, power plants and other industr
For example:
1)Medical Acupuncture with Capillary Tube,
2)High-pressure instrumentation with Capillary Tube,
3)Coal exploration with a stainless steel capillary pipe coil
4)Thermostat with Capillary Tube
5)Beer machine with stainless steel Capillary Tube
6)Drinking water equipment with stainless steel Capillary Tube
7)Danfoss expansion valve with stainless steel Capillary Tube
4. Specifications:
OD(mm) |
WT(mm) |
Material |
Φ0.3 |
0.1mm |
ASTM304 AISI304 ASTM321
ASTM316L
SUS321 SUS316L 316SS 316Ti SUS310S
Inconel 600,625,725
Incoloy 800HT,825,901,925,926 Etc. |
Φ0.5 |
0.1mm-0.2mm |
|
Φ0.7 |
0.1mm-0.3mm |
|
Φ0.8 |
0.1mm-0.3mm |
|
Φ0.9 |
0.1mm-0.35 |
|
Φ1.0 |
0.1mm-0.4mm |
|
Φ1.2 |
0.1mm-0.5mm |
|
Φ1.4 |
0.1mm-0.65mm |
|
Φ1.5 |
0.1-0.65mm |
|
Φ1.6 |
0.1mm-0.75mm |
|
Φ1.8 |
0.1mm-0.75mm |
|
Φ2.0 |
0.1mm-0.9mm |
|
Φ2.4 |
0.15mm-1.0mm |
|
Φ2.5 |
0.15m-1.1mm |
|
Φ2.8 |
0.15mm-1.3mm |
|
Φ3.0 |
0.15mm-1.2mm |
|
Φ3.17 |
0.15mm-1.5mm |
|
Φ3.5 |
0.15mm-1.5mm |
|
Φ4.0 |
0.15mm-1.5mm |
|
Φ4.2 |
0.15mm-1.5mm |
|
Φ4.5 |
0.15mm-1.5mm |
|
Φ4.8 |
0.15mm-1.5mm |
|
Φ5.0 |
0.15mm-1.5mm |
|
Φ5.5 |
0.15mm-1.5mm |
|
Φ6.0 |
0.15mm-1.5mm |
|
Φ6.35 |
0.15mm-1.5mm |
|
Φ6.5 |
0.15mm-1.5mm |
|
Φ7.0 |
0.15mm-1.5mm |
|
Φ8.0 |
0.15mm-1.5mm |
|
Φ9.35 |
0.15mm-1.5mm |
|
Φ9.52 |
0.15mm-1.5mm |
|
Φ10 |
0.15mm-1.5mm |
5. Production flow chart :

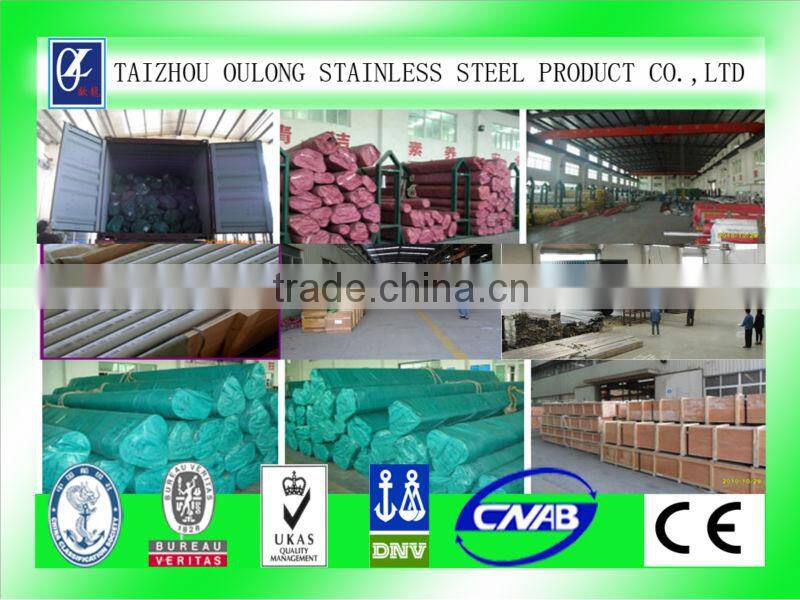

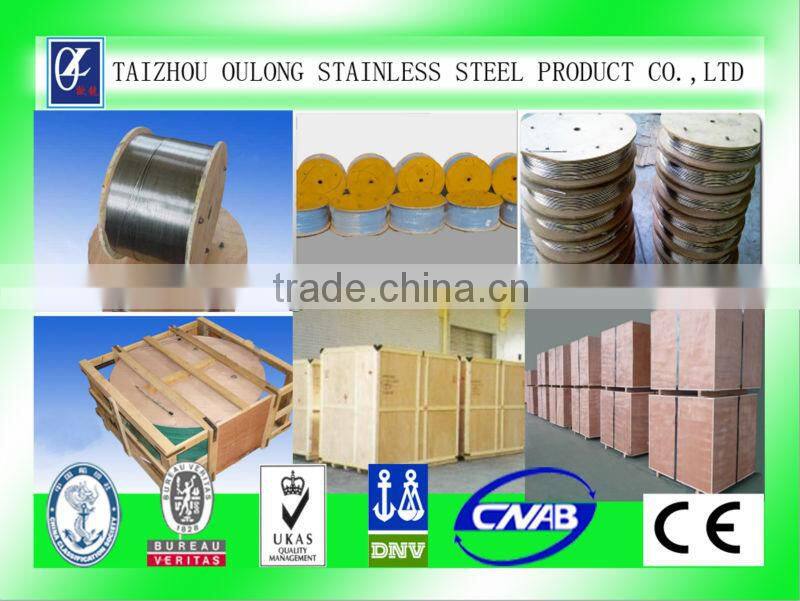

6.Packing:standard :standard export package or as clients' requirement.
7. Transportation
------------------------------------------------------------------------------------------------------------------
The best route to our company
