AURON ASTM A269 316L Stainless Steel Coiled Tubing 3/8"*0.045"

AURON ASTM A269 316L Stainless Steel Coiled Tubing 3/8"*0.045" thumbnail-1
AURON ASTM A269 316L Stainless Steel Coiled Tubing 3/8"*0.045" photo-1
US$ 10 - 15 MOQ: 1000 Kilograms
Key Specifications
Get Latest Price
Standard:
AISI, ASTM, DIN, EN
Place of Origin:
Jiangsu, China
Brand Name:
OULONG
Contact Supplier Request Quote Chat Now
Taizhou Auron Stainless Steel Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard AISI, ASTM, DIN, EN
Place of Origin Jiangsu, China
Brand Name OULONG
Model Number OL-02
Type Welded
Steel Grade Other, SUS304,321,316L,310S,6625,8825,800,840Etc.
Application Marine, petroleum, pharmaceutical, plumbing devices, power plants Etc.
Certification ISO
Welding Line Type Spiral Welded
Thickness 0.045"
Outer Diameter 3/8"

Product Details

TP304 TP 316L  3/8"*0.045"



1. Material:

                         American Standard Material: TP304 TP304L TP304H TP321 TP321H TP316L TP316SS

                                                                                TP316Ti TP347 TP347H TP317L TP309S TP310S 904L

                         Russian standard Material: 08X18H10 03X18H11 10X17H13M2T 03X17H13M2

                                                                            12X18H10T 08X18H10T 08X18H12B

                         German standard material: 1.4301 1.4306 1.4541 1.4404 1.4571 1.4550

                         Japanese standard material: SUS304 SUS304L SUS321 SUS316L

                                                                                   SUS316Ti SUS347 SUS800 SUS840

                         Double-Grade Material: 304/304L 316/316L 321/321H 347/347H

                         Super duplex steel: 2205 2304 S31803 S32750

                          Inconel 600,Inconel 601,Inconel 625,Inconel 725,Incoloy 800,Incoloy 800H,Incoloy 800HT,

                          Incoloy 825,Incoloy 901,Incoloy 925Incoloy 926 Etc.

2.Production standard:

                         China Standard : GB/T14975/14976/13296
                         American Standard: ASTM A269/A312/A213/A511/A789/A790
                         Japanese standard: JISG3459/3463
                         German standard: DIN17456/17458

                         European standard: EN10216-5

3.Common applications:

                         1. Hydraulic control lines
                         2. Marine   Stainless Steel Pipe In Coil
                         3. Oilfield test cable pipe lines
                         4. High-pressure instrumentation  Stainless Steel Pipe In Coil
                         5. Health and medical grade Stainless Steel Pipe In Coil
                         6.  Cold heat exchanger Stainless Steel Pipe In Coil
                         7. Coal mine detection Stainless Steel Pipe In Coil
                         8. Deep-sea oil drilling Stainless Steel Pipe In Coil
                         9. Instant water heater with Stainless Steel Pipe In Coil
                       10. Water dispenser beverage machine with Stainless Steel Pipe In Coil
4. Specifications:
                  1. Outer diameter :1.5mm-25.4mm     Tolerance:0.005mm-0.01mm
                       2. Wall thickness :0.5mm-2.0mm        Tolerance :0.01mm-0.02mm
                       3. Single length :100-8000m
                       4. Pressure :80-250MPa

 AURON ASTM A269 316L Stainless Steel Coiled Tubing 3/8"*0.045"

AURON ASTM A269 316L Stainless Steel Coiled Tubing 3/8"*0.045"AURON ASTM A269 316L Stainless Steel Coiled Tubing 3/8"*0.045"AURON ASTM A269 316L Stainless Steel Coiled Tubing 3/8"*0.045"AURON ASTM A269 316L Stainless Steel Coiled Tubing 3/8"*0.045"AURON ASTM A269 316L Stainless Steel Coiled Tubing 3/8"*0.045"

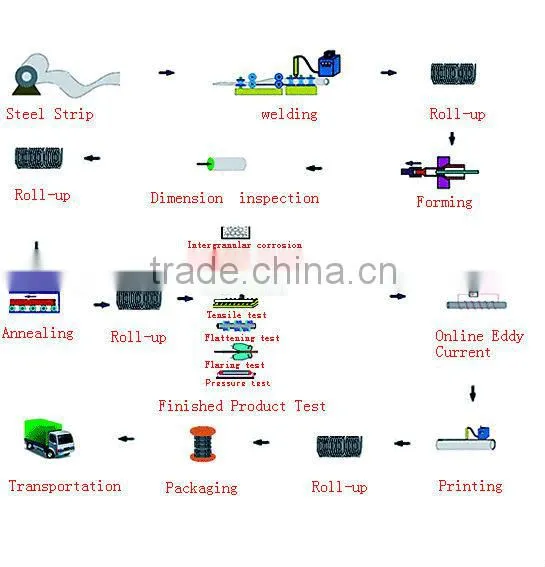

5. Production flow chart :

    AURON ASTM A269 316L Stainless Steel Coiled Tubing 3/8"*0.045"





6.Packing:standard :standard export package or as clients' requirement.

AURON ASTM A269 316L Stainless Steel Coiled Tubing 3/8"*0.045"AURON ASTM A269 316L Stainless Steel Coiled Tubing 3/8"*0.045"

7. Transportation

 AURON ASTM A269 316L Stainless Steel Coiled Tubing 3/8"*0.045"



------------------------------------------------------------------------------------------------------------------
