Specifications
High frequency transmission:2.4GWide transmission range: 30 meters
Samll and compact
no interference
CE certificate

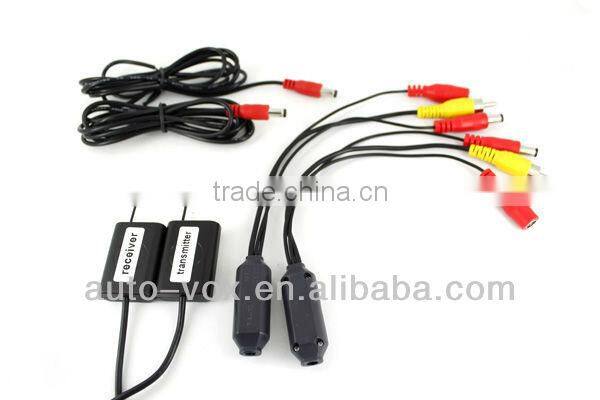

2.4G analog Wireless video transmitter receiver
- External wireless transmitter reciver kit for cameras.
- Transmission signal stability within 30 meters.
- Samll and compact.
Transmitter details:
- External wireless transmission kit for cameras
- High frequency transmission : 2.4G
- Wide transmission range: 30 meters.
- Size: 40 x 28 x 11mm (L*W*H)
Item |
Min. |
Typ. |
Max |
Test condition |
DC Characteristics |
|
|||
Supply Voltage |
|
12V VDC |
|
|
Current Consumption |
30MA |
35 mA |
50mA |
|
Video Characteristics |
|
|||
Input Impedance |
|
|
75Ω |
|
Peak Deviation |
|
|
1.2 MHz |
MOD: sine wave 400KHz 1Vp-p |
Output Characteristic |
|
|||
Tx Power |
17.5dBm |
18dBm |
19dBm |
|

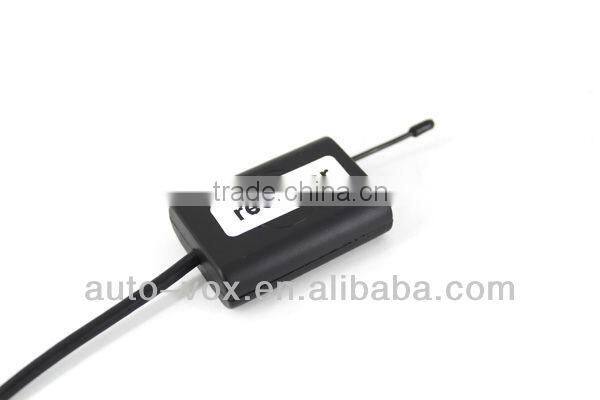

Receiver info:
- External wireless receiving kit for monitors
- High frequency transmission : 2.4G
- Wide transmission range: 30 meters
- Size: 40 x 28 x 11mm (L*W*H)
DC Characteristics | |
POWER SUPPLY |
12V |
Current Consumption |
70mA , Max |
Environmental Specification | |
Operating Temperature) |
-10~+55 ºC |
Storing Temperature) |
-30~+85 ºC |
Operating humidity |
85%RH |
RF Characteristics | |
Receiving frequency range |
2370 ~ 2510MHz* |
Voltage Standing Wave Ratio |
2:1 |
Demodulation system |
FM/PLL |
IF |
480MHz |
ANT. input impedance |
50Ω, Typ. |
LO Frequency stabilization |
±100kHz |
LO Frequency Precision |
±200kHz |
LO Control |
PLL |
Input LO Leak |
-55dBm |
Receiving Sensitivity |
-85dBm |
Input Level Range |
-85 dBm ~+5 dBm |
Video Characteristics | |
Video Output impedance |
75Ω, Typ. |
Video Output Level |
1Vp-p, Typ. |
Video Polarity |
NEGATIVE |
Video Frequency Respone |
±5 dB, Max. 50Hz ~ 6MHz |
Differential Gain |
±5 %, Max |
Differential Phase |
±5 Deg., Max |
3dB 3Db IF WIDEBAND |
16.5MHz |
S/N |
38dB, Min |
