Home > Products > Other Products > 2.4G Analog Wireless Receiver System for Receiver System for Wireless Rear View

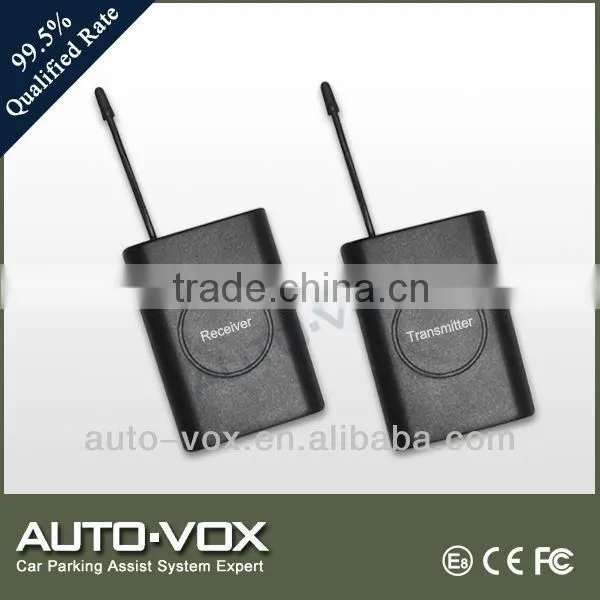

2.4G Analog Wireless Receiver System for Receiver System for Wireless Rear View
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Auto-vox | |
| Model Number | AX-WTR24A(Receiver, analog) |
Product Description
Specifications
.4G analog Wireless receiverWide transmission range:30 meters
Samll and compact
no interference
CE certificate
2.4G analog wireless receiver system for receiver system for wireless rear view
- External wireless receiving kit for monitors
- High frequency transmission : 2.4G
- Wide transmission range: 30 meters
- Size: 40 x 28 x 11mm (L*W*H)
DC Characteristics | |
POWER SUPPLY | 12V |
Current Consumption | 70mA , Max |
Environmental Specification | |
Operating Temperature) | -10~+55 ºC |
Storing Temperature) | -30~+85 ºC |
Operating humidity | 85%RH |
RF Characteristics | |
Receiving frequency range | 2370 ~ 2510MHz* |
Voltage Standing Wave Ratio | 2:1 |
Demodulation system | FM/PLL |
IF | 480MHz |
ANT. input impedance | 50Ω, Typ. |
LO Frequency stabilization | ±100kHz |
LO Frequency Precision | ±200kHz |
LO Control | PLL |
Input LO Leak | -55dBm |
Receiving Sensitivity | -85dBm |
Input Level Range | -85 dBm ~+5 dBm |
Video Characteristics | |
Video Output impedance | 75Ω, Typ. |
Video Output Level | 1Vp-p, Typ. |
Video Polarity | NEGATIVE |
Video Frequency Respone | ±5 dB, Max. 50Hz ~ 6MHz |
Differential Gain | ±5 %, Max |
Differential Phase | ±5 Deg., Max |
3dB 3Db IF WIDEBAND | 16.5MHz |
S/N | 38dB, Min |
