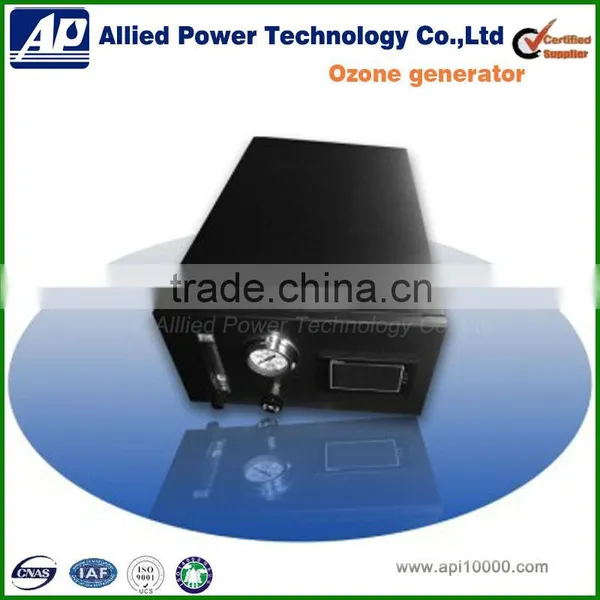

Large ozone generator for color control

We are OBM and ODM manufactory, We also accept OEM.

We own our core technology, large sales teams, strong R&D team and standardized production workshop.

Have strong competitive advantages on quality and price.

Our R & D team always leads ozone technical reform and innovation.

Our markets extend to all over the world.

Allied Power ozone generator technology advantages:

1. Adopt high frequency power supply system which made by us strict quality control. It is smaller, low electric consumption and high efficiency than other medium frequency or low frequency power supply system.

2. We introduce international micro-gap discharge technology, quartz glass tubes honeycomb discharge. Quartz glass tubes produce ozone with high efficiency than enamel tubes. High dielectric constant is not easy be punctured by high voltage. So quartz glass tubes working life is longer than enamel tubes or plates.

3. Compare to air cooling system, our water cooling system with good cooling effect. It could improve ozone output and concentration.

4. Pure oxygen as gas feed, our highest ozone concentration could reach 230mg/h.

5. When ozone concentration is 100mg/h, electric consumption is 7Kw/(kg*h)

6. Wecon PLC micro computer control, touch screen human-machine display.

7. Adopt stainless steel 304 ozone reaction cavity and stainless steel 316 discharging tubes.

8. We are specialized on ozone generator and high frequency inverter R&D, production for many years. So our ozone generator could well match to our high frequency power supply system. So our ozone generator working stable and high efficiency, low decay, low electric consumption than most ozone generators suppliers.

Our ozone high frequency inverters get many international patents. Less ozone generator suppliers could produce ozone generator at the same time produce soft-switch power supply system like us

Item

No.

Ozone Output (g/h)

Concen

tration(mg/L)

Rated power(kw)

Air

flow rate

 (m³/h)

Cooling water

flow

 rate

(m³/h)

Working pressure(Mpa)

Air dew point(°C)

Relative humidity

Power supply (V/Hz)

Power consumption (kwh/kgO₃)

Weight (Kg)

Dimensions

 (mm)

HW-A-10

10

20

0.2

0.29

0.1

0-0.2

-45

≤60%

220V

/50Hz

8.5

25

670*400*225

Description:

1.  Ozone generation concentration 0-230mg/L adjustable

2.  Microcomputer automatic control, human-machine interface display, a key type operation, easy

     and convenient

3.  Stable and reliable system, Low power consumption, produce 1 kg average power

     consumption just 7 KW*H

4. Group control function, a host control platform machine, digital remote monitoring and control,

     real-time analysis and diagnosis system failure

5.  Ozone production adjustable

6.  Time switch machine Settings, realize unattended

7.  Adopt cooling water system. It do not scaling moss

 8. Ozone gas outlet own 0.2 Mpa pressure, it could transport gas without any external

     equipments during certain scope

Application:

1. All kinds of factories and enterprises sterilization and disinfection, food factory, beverage factory, mineral water factory, pharmaceutical factory, health products factory workshop, warehouse, packing material room, buffer room, locker room, food antisepsis etc.

2.  Public places disinfection, sterilization, removing odor:Organs and units, school, nursery school, office, classroom, conference room, hall, restaurant, dormitory, recreation room, bathroom etc.

3.Warehouse and agriculturalproducts keep fresh and anti-corrosion:

 Food, eggs, Chinese herbal medicine, fruits, vegetables, aquatic products, meat products, such as warehouse disinfection, sterilization, anticorrosion, preservation, remove residual pesticide, decomposition hormone.

4.Breeding industry sterilization, disinfection and deodorant:

Indoor chicken farm, pig farm, animal feed farm, aseptic inoculation and cultivation etc.

5.Archives and libraries: archives sterilization, mould proof, insect repellent, moth-proofing, etc.

6.  Water treatment: tap water treatment, waste water treatment, waste water bleaching, color decoloration, reduce BOD and COD.

 7. Waste air treatment: Odor removal, treatment aromatic hydrocarbon,  Benzodiazepines etc.

Remark:

1. The final price will be subject to the approval sample and order quantity.

2. Terms of payment: T/T 30% payment as deposit and the balance 70%T/T payment against the copy of B/L.

3. Delivery time: 30 days after everything confirmed and receive 30% deposit.
