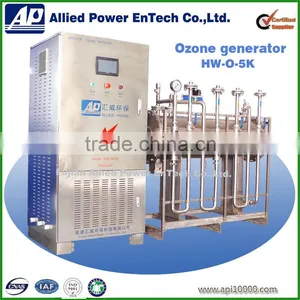

5kg/h ozone generator water purification for urban sewage treatment

FOB Price

USD $30,000 - $60,000 / Set

1 Set(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port Fuzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China		Brand Name	Aliied Powr
Model Number	HW-O-5K

Packaging Details

Wooden carton packing

Product Description

Products introduction

Control system
One-touch operation:Touch screen for human-machine interface which is automatically controlled by microcomputer.

Power System
All Allied Power's ozone generators adopt high- frequency, high-voltage inverter power supply,

The power system manufacture by our own, with the advantages of low comsumption, high efficiency, stability.

Ozone reaction system
Chamber:Material of chamber is Stainless steel 304, adopts advanced processing technology and CNC precision lathe with good seal performance.

Ozone generation unit: Unlike enamel tubes or traditional big quartz glass tubes, Allied Power introduces smaller quartz glass tubes, with the advantages of high concentration, less ozone output decay and don't need to replace tubes.

Corona discharge: With smaller quartz glass tubes, Allied Power's ozone generators ozone generate by double micro-gap corona discharge, chamber becomes smaller, efficiency become higher.

Why Us?

Efficiency& reliable

Power factor>0.95.

PFC≥0.95

The adverage power consumption of per kilogramozone output is about 7 degree.

Ozone concentration could reach 230mg/l with pure oxygen asgas feed.

Multiple abnormality protection. Light alarm system.

Easy operatiion

  Ozone concentration adjustable.
  Ozone production adjustable.
  Time switch machine Settings, realize unattended.
  Transport gas without any external equipments during certain scope.

Group control function, digital remote monitoring
Real-time analysis and system failure diagnosis.

About Us

With advanced technology, mighty R&D and hard work, Allied Power base on ozone generating mechanism and ozone application research, ozone equipment manufacturing, devote to environmental protection, against industrial pollution.

Allied Power has developed most efficient and reliable ozone generator with output from 10g/h to 50kg/h. Our ozone generators adopt medium dielectric barrier corona discharge (DBCD) technology, quartz glass tubes with micro-discharge chamber and SS304 tubes as dielectric medium, ensure high ozone concentration, stable operation. Not only high technology in ozone generating mechanism, we also own international patents on soft-switch power system. Our high frequency inverters power rated could over 440KW, high frequency reach 30KHZ.

Being applications in drinking water, wastewater, process water, industrial oxidation , bleaching, deodorization, waste gas treatment, space disinfection etc., our products have widely used in North America, South America, South-East Asia, Middle East and Europe.

Parameters

Air supply Ozone generator

Product Model	Ozone Output	Flow Of Cooling Water	Rated Power	Air flow rate
HW-A-10	10g	0.1m3/h	0.2kw	8.3N*L/min
HW-A-20	20g	0.1m3/h	0.4kw	16.7N*L/min
HW-A-30	30g	0.1m3/h	0.6kw	25N*L/min
HW-A-50	50g	0.2m3/h	1kw	41.7N*L/min
HW-A-80	80g	0.3m3/h	1.5kw	66.7N*L/min
HW-A-100	100g	0.4m3/h	1.7kw	83.3N*L/min
HW-A-150	150g	0.6m3/h	2.5kw	7.5N*m3/h
HW-A-200	200g	0.8m3/h	3.4kw	10N*m3/h
HW-A-250	250g	1m3/h	4.4kw	12.5N*m3/h
HW-A-300	300g	1.2m3/h	5.1kw	15N*m3/h
HW-A-500	500g	2m3/h	8.5kw	25N*m3/h
HW-A-800	800g	3.2m3/h	136kw	40N*m3/h
HW-A-1K	1kg	4m3/h	17kw	50N*m3/h
HW-A-1.2K	1.2kg	5m3/h	21kw	60N*m3/h
HW-A-1.5K	1.5kg	6m3/h	26kw	75N*m3/h
HW-A-3K	3kg	12m3/h	51kw	150N*m3/h
HW-A-5K	5kg	20m3/h	85kw	250N*m3/h
HW-A-10K	10kg	40m3/h	170kw	500N*m3/h
HW-A-20K	20kg	80m3/h	340kw	1000N*m3/h

Oxygen supply ozone generator

Product Model	Ozone Output	Flow Of Cooling Water	Rated Power	Air flow rate
HW-O-10	10g	0.1m3/h	0.1kw	1.7N*L/min
HW-O-20	20g	0.1m3/h	0.2kw	3.3N*L/min
HW-O-30	30g	0.1m3/h	0.3kw	5N*L/min
HW-O-50	50g	0.1m3/h	0.5kw	8.3N*L/min
HW-O-80	80g	0.15m3/h	0.8kw	13.3N*L/min
HW-O-100	100g	0.2m3/h	0.9kw	16.7N*L/min
HW-O-200	200g	0.4m3/h	1.8kw	2N*m3/h
HW-O-300	300g	1m3/h	2.5kw	3N*m3/h
HW-O-500	500g	1m3/h	4.3kw	5N*m3/h
HW-O-700	700g	1.4m3/h	6kw	7N*m3/h
HW-O-800	800g	1.6m3/h	7kw	8N*m3/h
HW-O-1K	1kg	2m3/h	8.5kw	10N*m3/h
HW-O-2K	2kg	4m3/h	17kw	20N*m3/h
HW-O-2.5K	2.5kg	5m3/h	22kw	25N*m3/h
HW-O-3K	3kg	6m3/h	26kw	30N*m3/h
HW-O-5K	5kg	10m3/h	45kw	50N*m3/h
HW-O-10K	10kg	20m3/h	85kw	100N*m3/h
HW-O-30K	30kg	60m3/h	260kw	300N*m3/h
HW-O-50K	50kg	100m3/h	440kw	500N*m3/h

Ozone water generator

Product Model	Ozone Output	Flow Of Cooling Water	Rated Power	Air flow rate
HW-OW-10	10g	0.1m3/h	0.8kw	1.7N*L/min
HW-OW-20	20g	0.1m3/h	0.9kw	3.3N*L/min
HW-OW-30	30g	0.1m3/h	1.1kw	5N*L/min
HW-OW-50	50g	0.1m3/h	2.2kw	8.3N*L/min

Don't hesitate to contact us!

Email: sharon(at)

Skype: sharonhuangqin

Wechat: sharonhuangqin1988

Whatapp:86-15960140661

Company Profile

Fujian Allied Power EnTech Co., Ltd.

Allied Power En Tech Co.,Ltd founded sincere 2004. We main R&D and produce 10g/h to 50Kg/h ozone generators, high frequency ozone generator power supply and ozonated water machines. Our ozone generator technologies as similar as Wedeco. Our ozone generators adpot medium dielectric barrier corona discharge (DBCD) technology, quartz glass tubes and SS304 tubes as dielectric medium. High dielectic constant could ensure the ozone generator working stable and produce high concentration ozone. Our highest ozone generator concentration could reach 230mg/l. And our ozonated water machine could produce 10ppm ozonated water. By the way, We are also the only one who can produce unit high frequency invertor over 250KW and highest frequency could reach 30KHZ. We cater to diversified industries and applications, which include drinking water treatment, sewage treatment, swimming pools, public fields in hospitals, pharmaceutical factory, paper making for pulp bleaching, printing and dyeing, tower cooling water, ozonated olive oil and essential oil, waste gas odor removal,food and beverage water and air purification etc.
