Mining Vibrating Feeder For Iron Ore/Gold Ore/Copper Ore Feeding

Mining Vibrating Feeder For Iron Ore/Gold Ore/Copper Ore Feeding thumbnail-1
Mining Vibrating Feeder For Iron Ore/Gold Ore/Copper Ore Feeding photo-1
US$ 5500.00 - 5500.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Quarry,Mining
Power Type:
Other, Motor
Contact Supplier Request Quote Chat Now
Zhengzhou Hengxing Heavy Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Quarry,Mining
Power Type Other, Motor
Capacity(t/h) 30-500t/h
Place of Origin Henan, China
Brand Name HengXing
Model Number GZD850*3000,GZD1100*4900
Power(W) depending on models
Dimension(L*W*H) refer to specifications
Weight depending on different model
Certification ISO9001:2008,CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Mining Vibrating Feeder For Iron Ore/Gold Ore/Copper Ore Feeding :

mining vibrating feeder Processing capacity: 1-105t/h
Feeding size: 125-250mm
Feed opening: 150×250-300×1300mm
Motor power: 5.5-55kw
Total weight: 0.8-15.6t

The Application and Features of Vibrating Feeder:
The mining vibrating feeder produced by our company is a linear vibratory feeder with the features of stable vibration, reliable working and long service life. It can continuously and evenly feed the crushing equipment and classify the materials, so that it is widely used in the crushing and screening combination plant in ore beneficiation, building material, silicate and chemical industry.


Vibrating feeder working principle:

The electromotor drives the eccentric block of the exciter to rotate with high speed through the v-shaped belt. The eccentric block can produce big eccentric force, and the exciting screen box will do circular motion with certain amplitude. The materials on the slant screen will be influenced by the impulse transmitted from the screen box and do continuous throwing motion, and the materials smaller than the screen hole will go through the screen, thus realizing classifying. we supply mining feeder for iron ore feeding,copper ore/gold ore feeding .

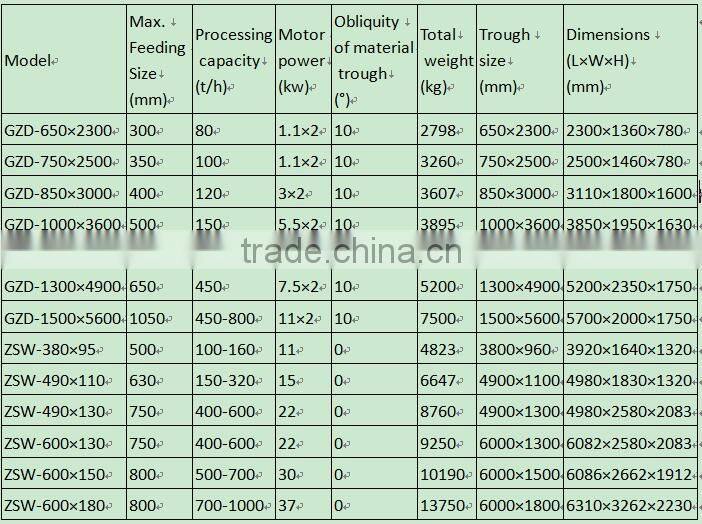

Technical Parameter

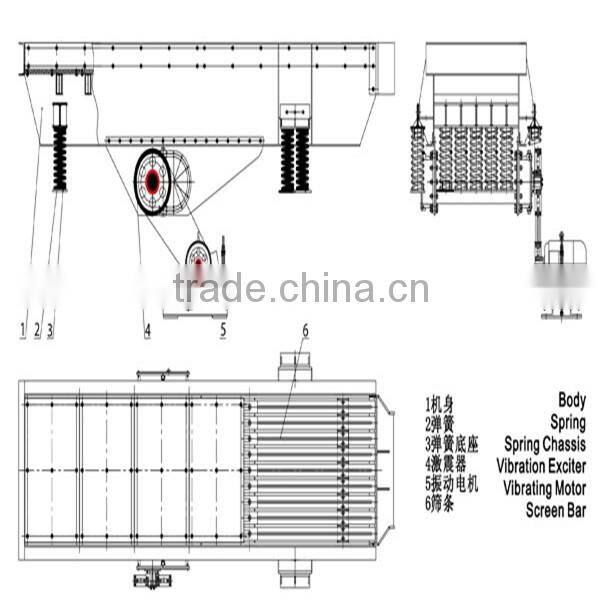

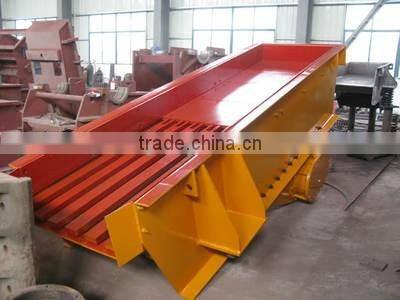

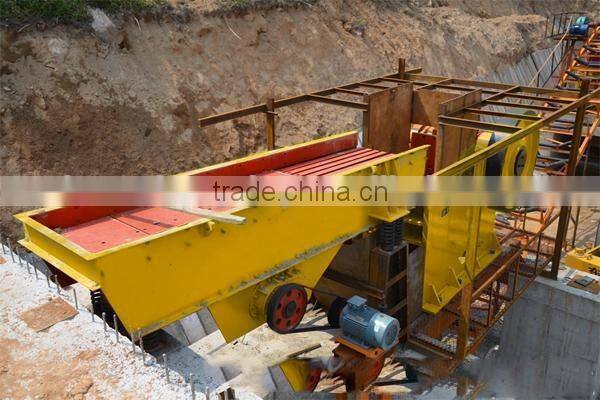

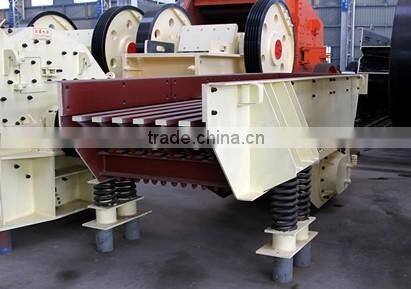

Detailed Images

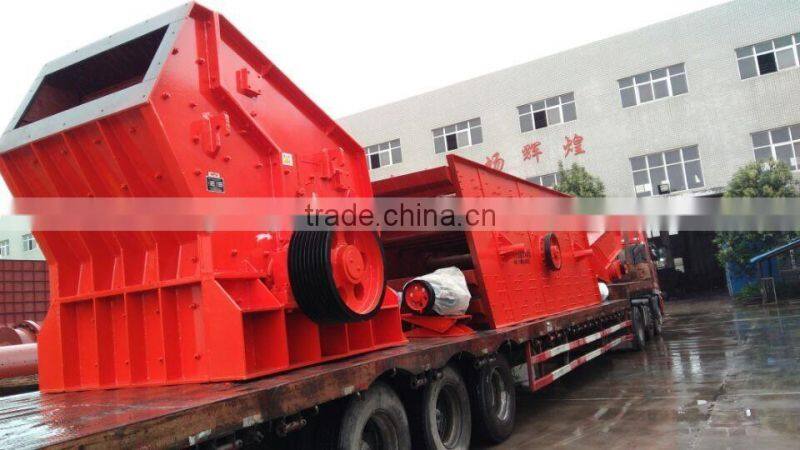

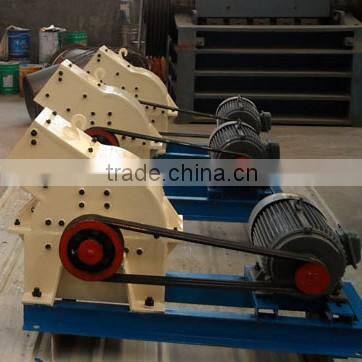

Factory Workshop
Contact

Ms Sara

Mobile phone(whatsapp): 0086 137 8347 1727
Skype: sarapang6
Wechat: sarapang6
Email: sales006#
