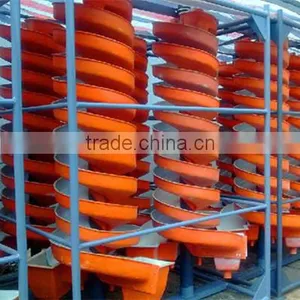

Zircon Ore /Ziron Sand spiral Chute :

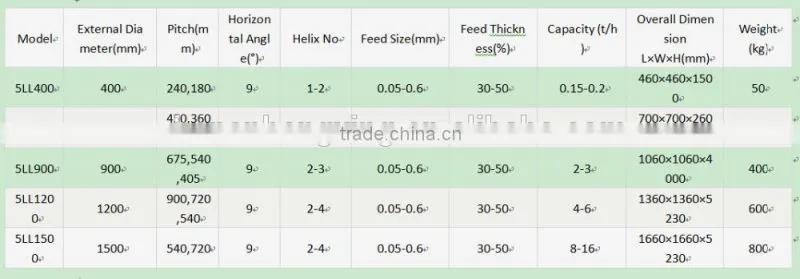

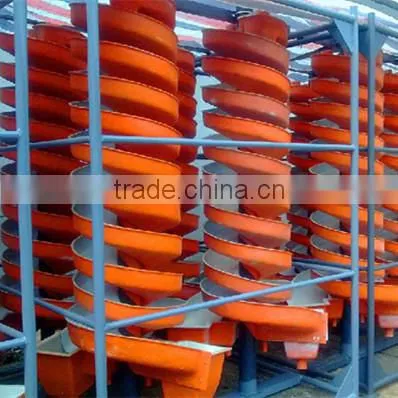

Spiral Chute
【Feed Size】: 0.05-0.6mm
【Capacity】:0.15-16t/h
【Processible Materials】:Iron ore, titanic iron ore, chromate iron ore, brasses, zirconite, rutile, monazite, tungsten ore, gold, silver, copper, and pyrite and niobium ore.

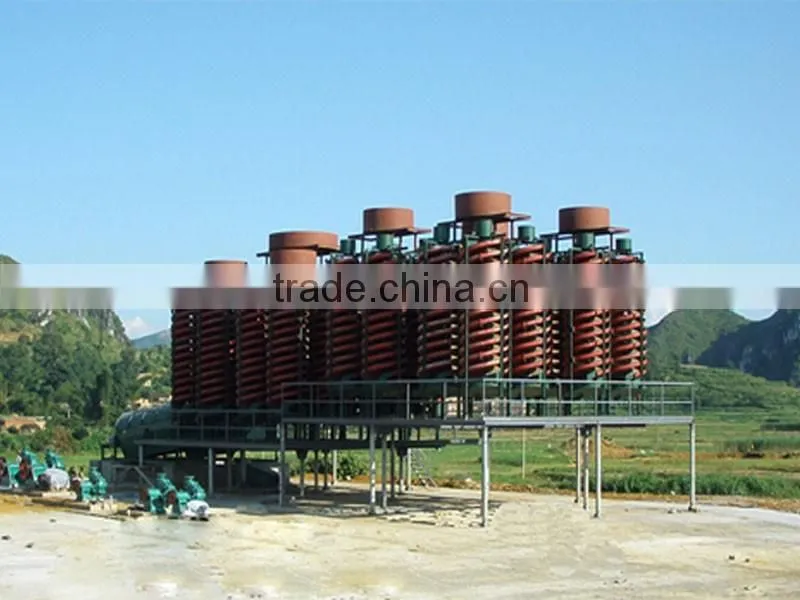

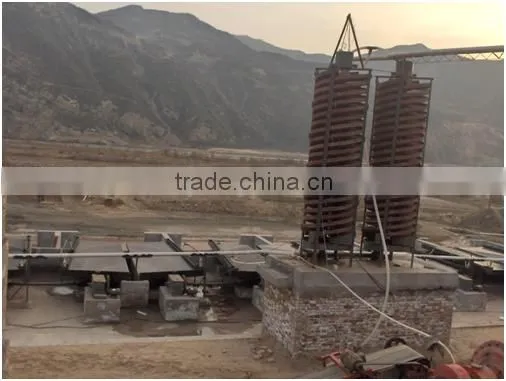

【Application】:Ore beneficiation plant.
Spiral Chute Advantages:
1. Simple structure, easy operation,no power and save space;
2. Steady process, clear separating, high capacity and high efficiency;
3. Moisture proof, rust proof, corrosion resistant and light weight;
4. Flexible to process a wide range of feed capacity, slurry thickness, particle size and ore grade.
Spiral Chute Application:
Spiral Chute is suitable for preliminary gravity separation of 0.05-1mm iron ore, ilmenite, chromite, pyrites, zircon, rutile, eremite, tungsten ore, tin ore, tantalum ore, columbium and other nonferrous metal, rare metal and non metallic minerals, which differs from specific density.
Spiral Chute Working Principle:

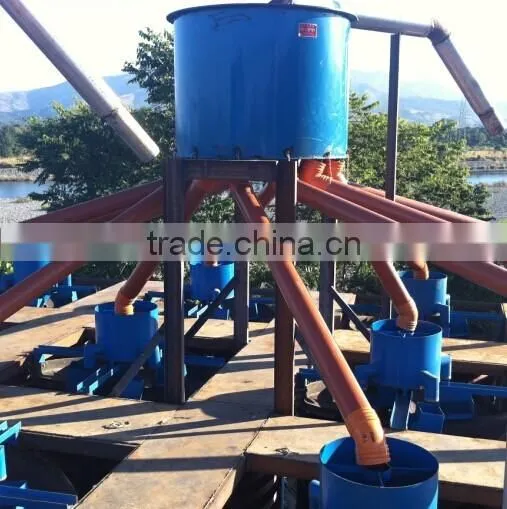

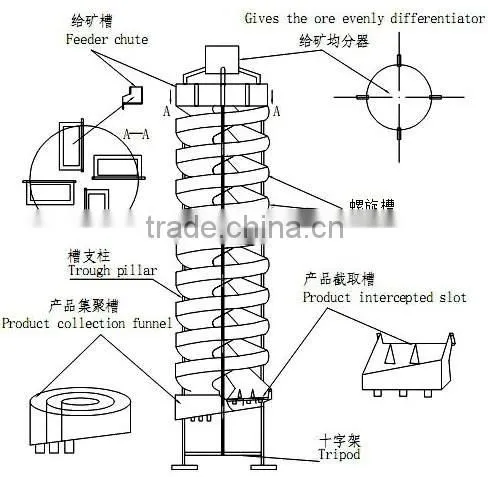

Spiral Chute is working under the the force of water flow, gravity, inertial centrifuge and friction. Slurry is pumped to the top of the spiral , and it enters a feed distributor that evenly distributes the feed to each spiral concentrator. The design and shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles arecarried with the bulk of the water towards the outside of the spiral , while particles with the greatest density migrate towards the inside of the spiral.
