Product features
1. Analog monitoring surveillance and HD network upgrading without replacing the coaxial cable
2. Long distance network extended and can be up to 200 meters
3. Support multi-point access, one point to multi-point access
4. Plug and play, no need to set
5. Long distance centralized power supply, the effect is equivalent to PoE power supply
6. Transmission via coaxial cable, twisted pair, telephone line and other transmission media
7. There must be two or more transmissions, the same link(within the same physical coaxial or twisted pair) just set up the master device to support multiple devices work simultaneously

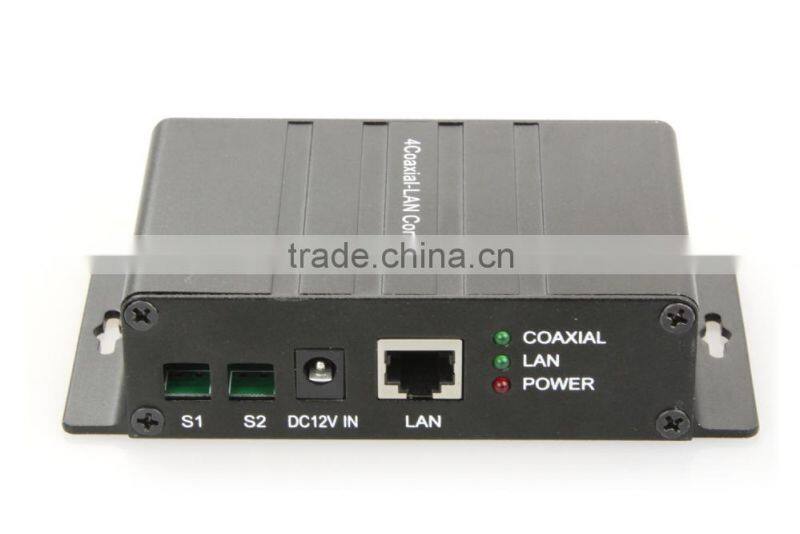

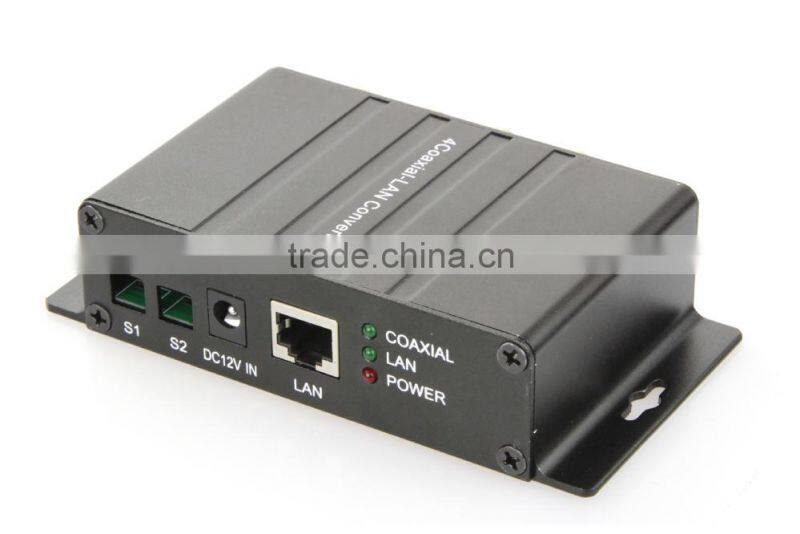

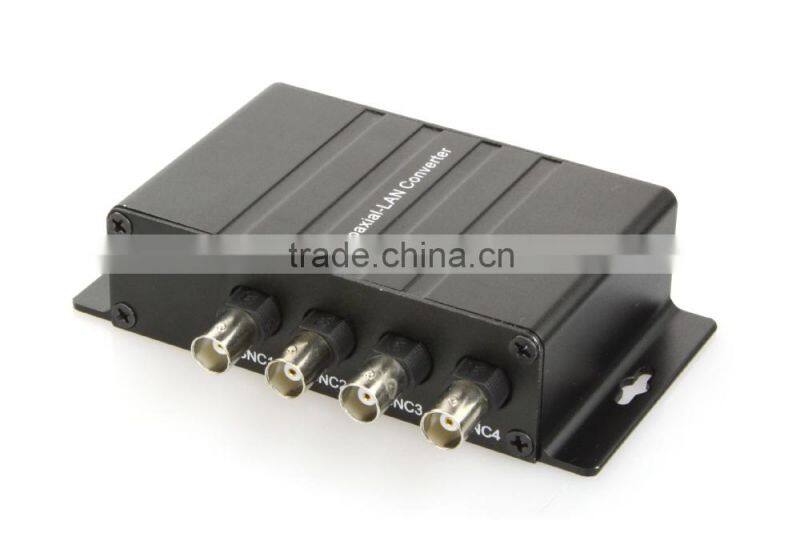

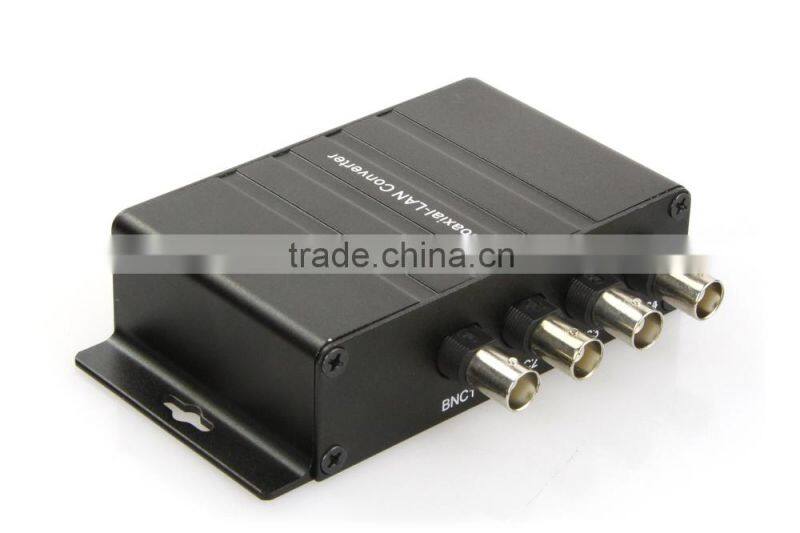

The picture
Why choose ONV?
1. Have CE,FCC,ROHS certification
2. Twelve years of production experience
3. Have a R&D team
4. Good services
5. Prompt delivery
6. Competitive prices
7. Accept OEM & ODM cooperation
Specification
| Product Name | 10/100M Ethernet over Coaxial EOC Converter |
| Product Model | ONV4C1E-3 |
| Transmission Media | Coaxial Cable,Twisted Pair |
| Network Port | 10/100M auto-sensing RJ45 port |
| Connector | 1X RJ45 connectors,4X BNC connector |
| Transmission Range/Rate | Cable length less than 400M——92Mbps; Cable length less than 1000M——74Mbps; Cable length less than 2000M——30Mbps; |
| Coaxial Input/Output | BNC port/ 75ohm |
| Led Indicator | Network cable connected right – LED light is on Video cable connected right –LED light is flashing |
| Master/Slave Setting | Master mode solidified |
| Power Supply | 12V DC,180mA |
| Max Power | 2.2w |
| Working Environment | Working Temperature:-20℃ ~40℃; Relative Humidity:5%~95%, no condensation; |
| Dimension | 105X68X32mm |
| Weight | 0.24kg |
| Radiation | FCC Class A, CE |
| Warranty | 1 year warranty, life-time maintain |
Order Information
Product Model: ONV4C1E-3
Product Description: 1X 100Mbps 4C1E Coaxial Cable EOC Converter,1X 10/100M auto-sensing port,4X Coaxial Input/Output BNC port,1X Power Supply(12V DC,180mA)
Ordering List: Default ONV4C1E-3 Transmission Distance 300 meters
Product Model | Transmission Distance | Cable Type | ||
75-5 Coaxial Cable | Twisted Pair | Telephone Line | ||
ONV4C1E-3 | 300 meters | 100Mbps | 80 Mbps | 60 Mbps |
ONV4C1E-6 | 600 meters | 90 Mbps | 60 Mbps | 50 Mbps |
ONV4C1E-12 | 1200 meters | 70 Mbps | 40 Mbps | 30 Mbps |
ONV4C1E-15 | 1500 meters | 50 Mbps | 30 Mbps | 20 Mbps |
ONV4C1E-20 | 2000 meters | 30 Mbps | 15 Mbps | 10 Mbps |
Accessories in the Packag
Packing Lists | 100Mbps 4C1E Coaxial Cable EOC Converter (ONV4C1E-3) |
Power Adapter | |
User Manual | |
Guarantee Card |
e
Our factory and sale office
Certification
More inforamtion, please feel free to contact us.
